Brake Pedal And Bracket: Installation

  1. Install brake pedal to pedal housing.
    • Apply grease to pivot bush and pivot pin.
    • Align brake pedal in pedal housing.
    • Install pivot pin.
    • Install nut and tighten to 15-20 Nm.

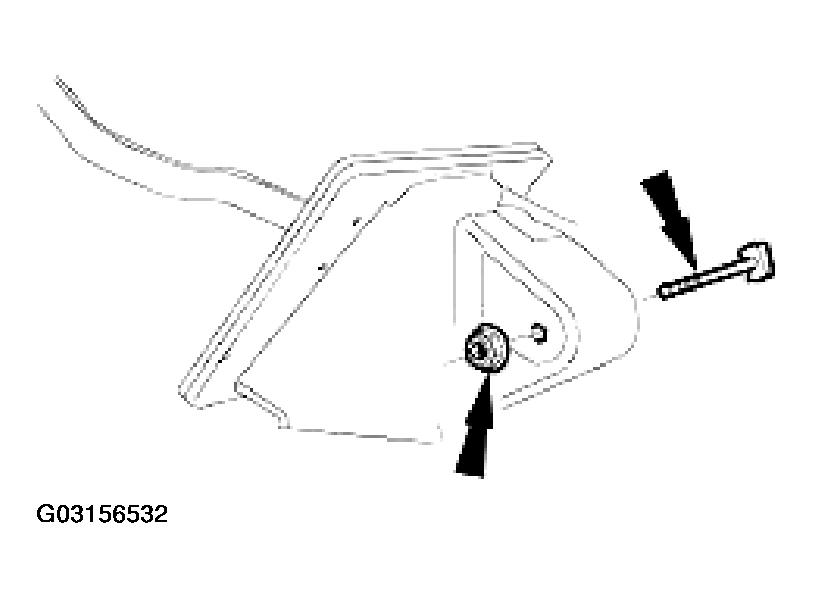

    Fig 1: Installing Brake Pedal To Pedal Housing
    G03156532Courtesy of JAGUAR CARS, INC.
  2. Install stoplamp switch to pedal housing.
    • Install nuts and tighten to 3 Nm.

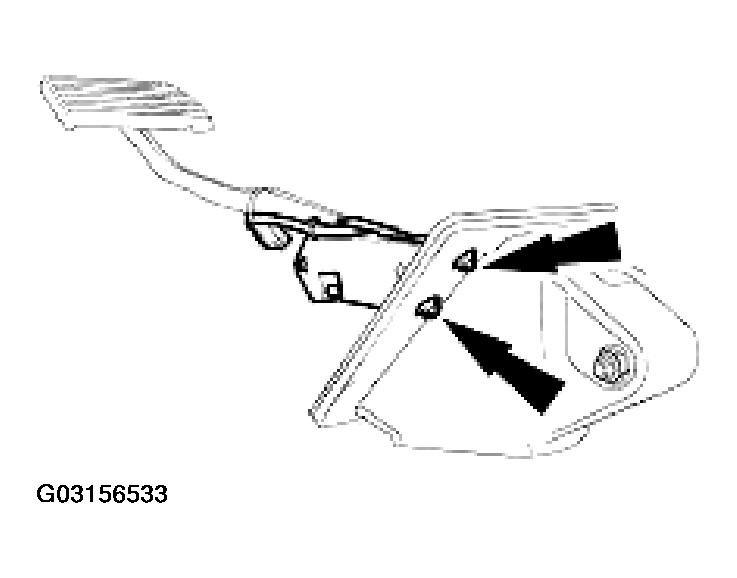

    Fig 2: Installing Stoplamp Switch To Pedal Housing
    G03156533Courtesy of JAGUAR CARS, INC.
  3. Install brake booster and master cylinder assembly. Refer to BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
  4. Install pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
  5. Install plenum cover. Refer to COWL VENT SCREEN .
  6. Install windshield wiper arm and blade assembly. Refer to WIPER PIVOT ARM .
  7. Reconnect battery ground cable. Refer to BATTERY RECONNECTION PROCEDURE .
  8. Bleed brake system. Refer to BLEEDING BRAKE SYSTEM .
  9. Remove paint-work protection covers and close engine compartment.
