Brake Pedal And Bracket, Brake Booster And Brake Master Cylinder: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES for information.

CAUTION: Remove brake fluid spillage immediately from paint work, with clean water.

Position vehicle on a four-post lift.
Open engine compartment and fit paint work protection covers to fenders.
Disconnect battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
Disconnect stop lamp switch connector.
- Move carpet.
- Disconnect electrical connector.

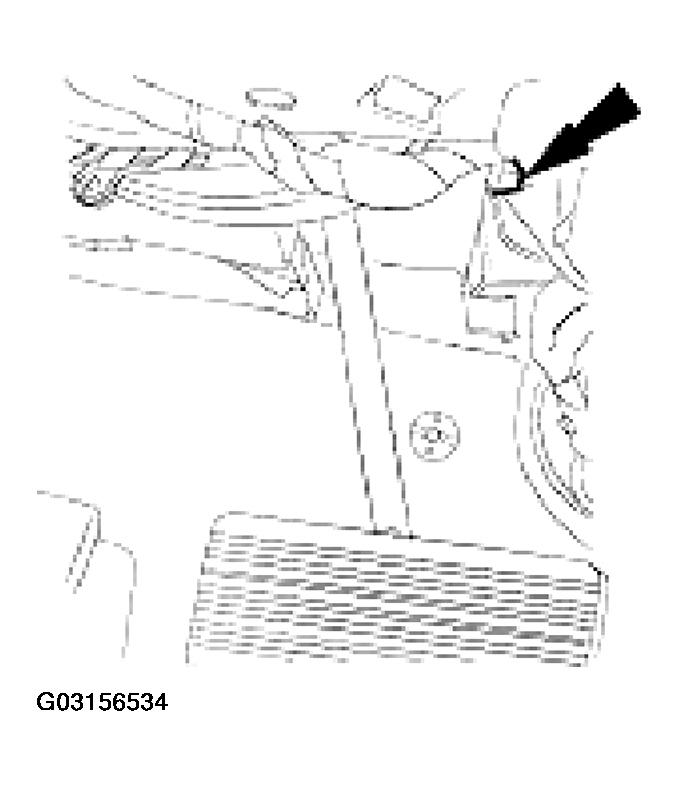

Fig 1: Disconnecting Stop Lamp Switch Connector
Courtesy of JAGUAR CARS, INC.
Disconnect low-level warning connector from master cylinder.

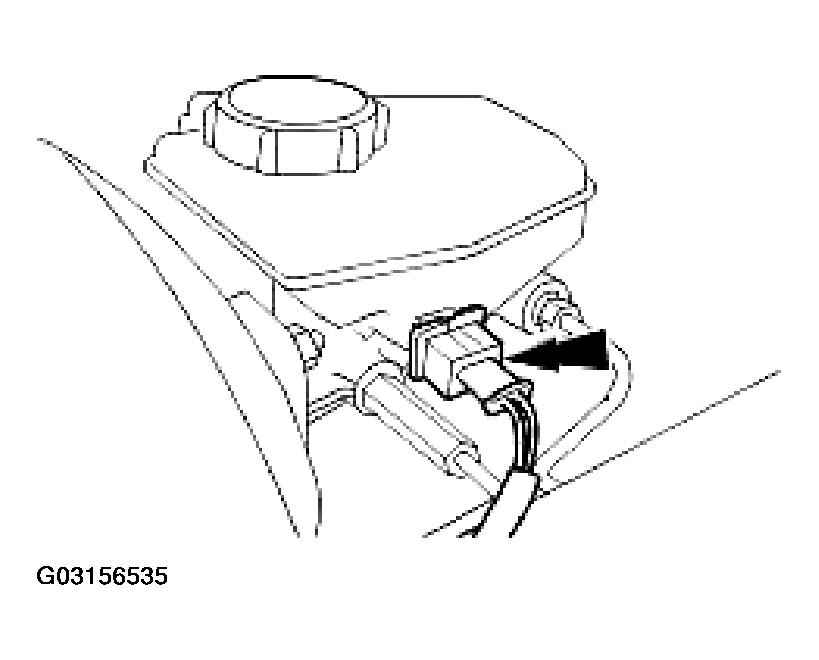

Fig 2: Disconnecting Low-Level Warning Connector From Master Cylinder
Courtesy of JAGUAR CARS, INC.
Disconnect vacuum pipe from brake booster.
- Disconnect pipe. (1)
- Remove and discard seal. (2)

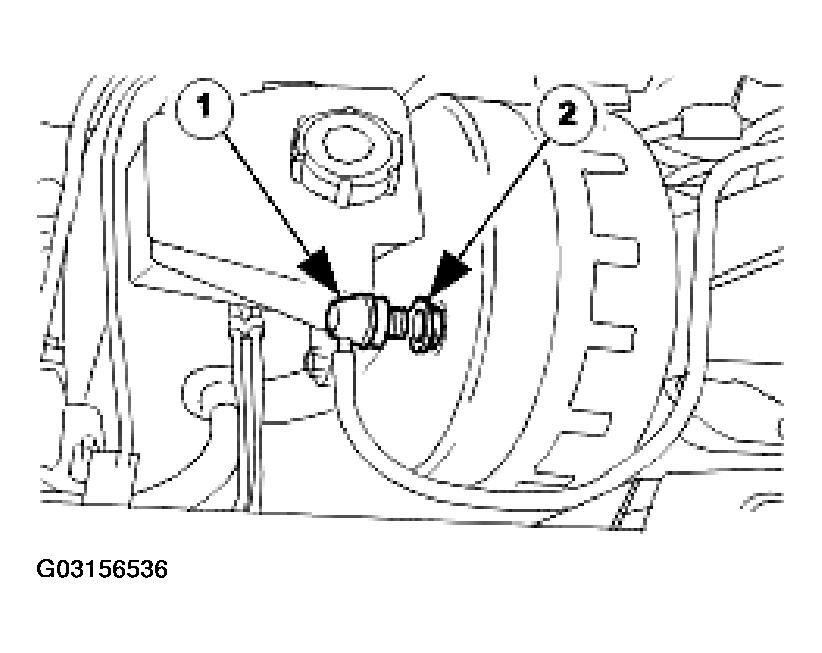

Fig 3: Disconnecting Vacuum Pipe From Brake Booster
Courtesy of JAGUAR CARS, INC.
Position absorbent cloth underneath master cylinder to collect brake fluid spillage.
Disconnect brake tubes from master cylinder.
- Install plugs to brake tubes and master cylinder ports.

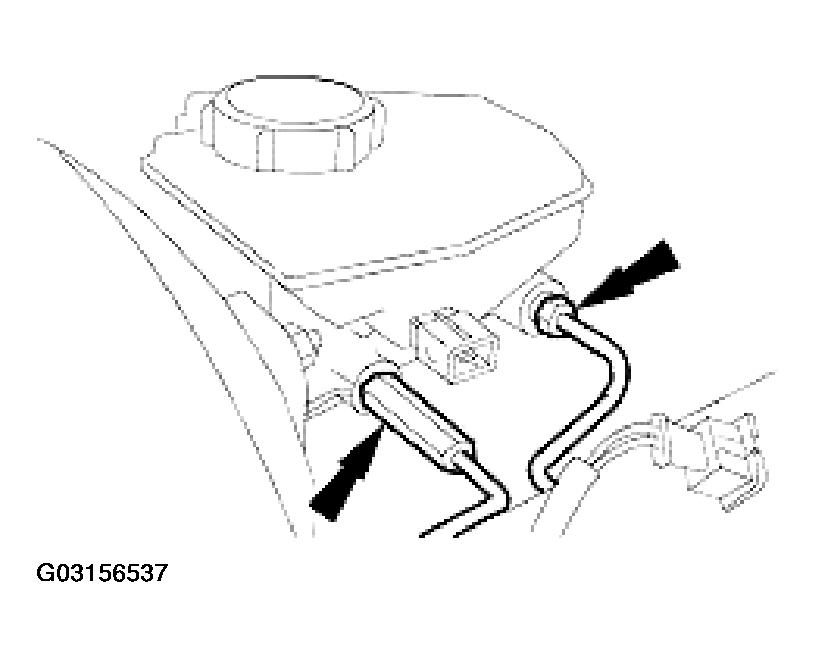

Fig 4: Disconnecting Brake Tubes From Master Cylinder
Courtesy of JAGUAR CARS, INC.
Remove windshield wiper arm and blade assembly for access. Refer to WIPER PIVOT ARM .
Remove plenum cover for access. Refer to COWL VENT SCREEN .
Remove pedal housing, brake booster and master cylinder assembly from vehicle.
- Remove nuts and bolts.
- Remove assembly from vehicle.

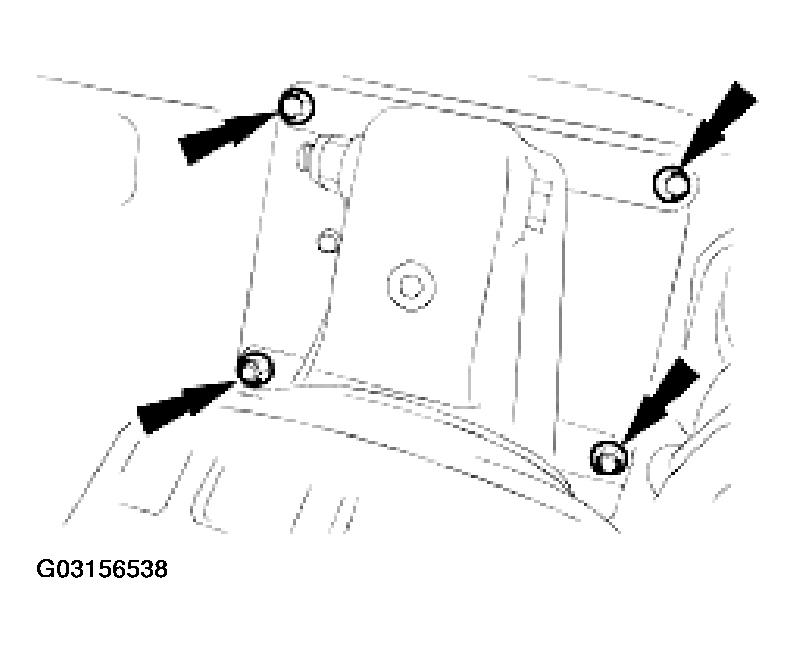

Fig 5: Removing Pedal Housing, Brake Booster And Master Cylinder Assembly
Courtesy of JAGUAR CARS, INC.
Remove and discard gasket from pedal housing.

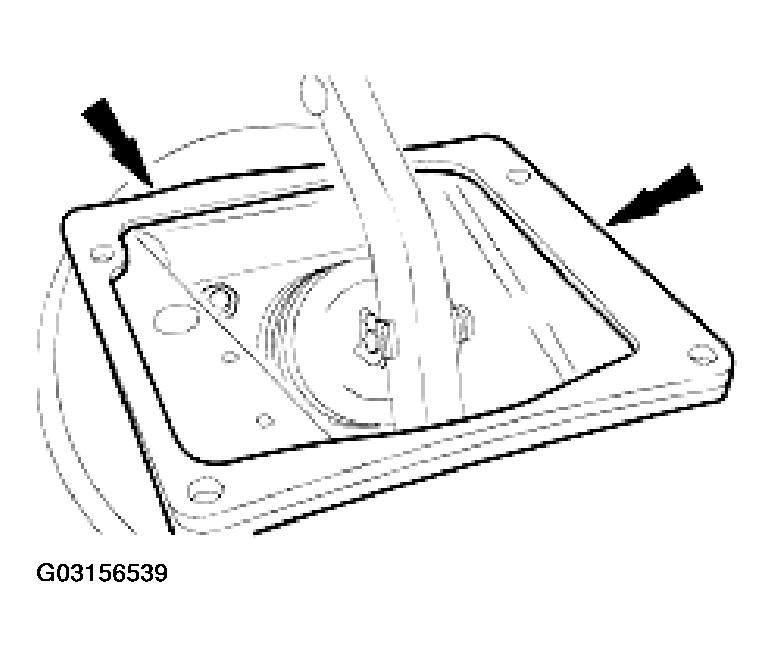

Fig 6: Removing Pedal Housing Gasket
Courtesy of JAGUAR CARS, INC.
Clean components and mating surfaces.
