Brake Fluid Reservoir: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES for information.

CAUTION: Remove brake fluid spillage immediately from paint work, with clean water.

Position vehicle on a four-post lift.
Open engine compartment and fit paint work protection covers to fenders.
Disconnect battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
Remove windshield wiper arm and blade assembly for access. Refer to WIPER PIVOT ARM .
Remove plenum cover for access. Refer to COWL VENT SCREEN .
Remove pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
Remove reservoir filler cap and empty residual brake fluid into a container. Refit cap.
Remove fluid reservoir from master cylinder.
- Remove locating pin.
- Pull reservoir from master cylinder.

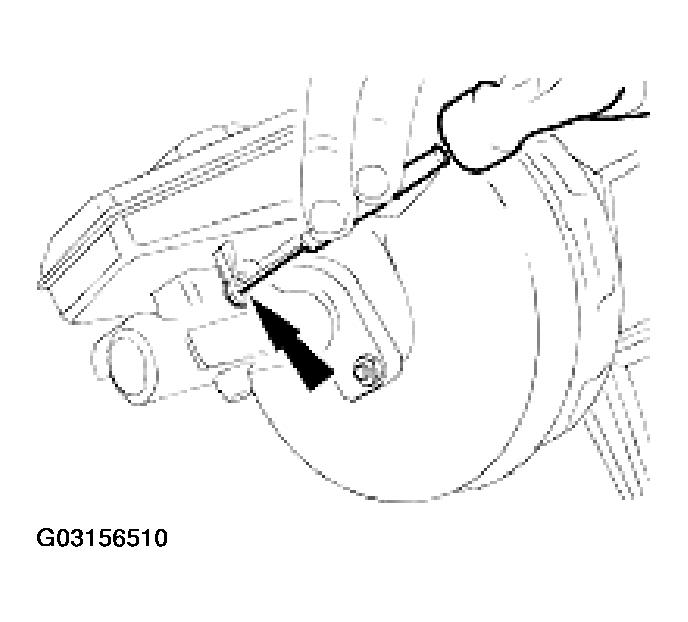

Fig 1: Removing Fluid Reservoir From Master Cylinder
Courtesy of JAGUAR CARS, INC.
Install plugs into fluid reservoir ports.

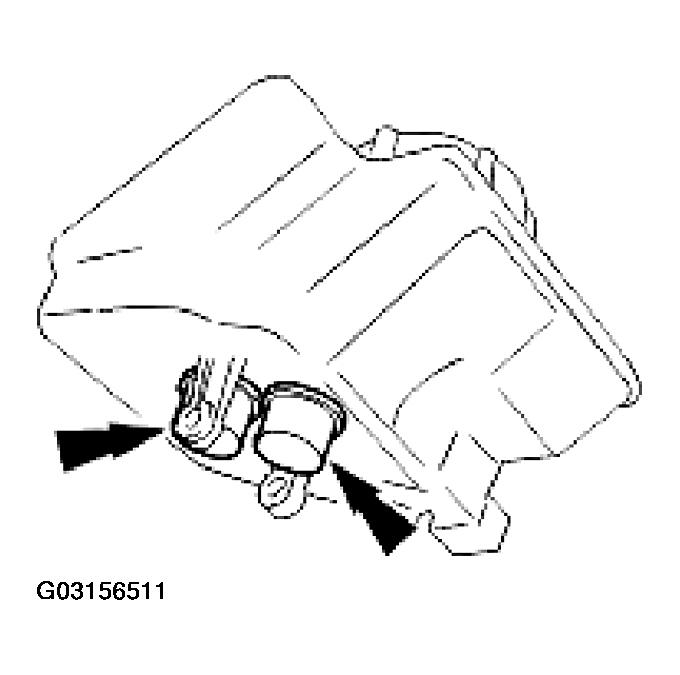

Fig 2: Installing Plugs Into Fluid Reservoir Ports
Courtesy of JAGUAR CARS, INC.
Remove and discard seals from master cylinder.

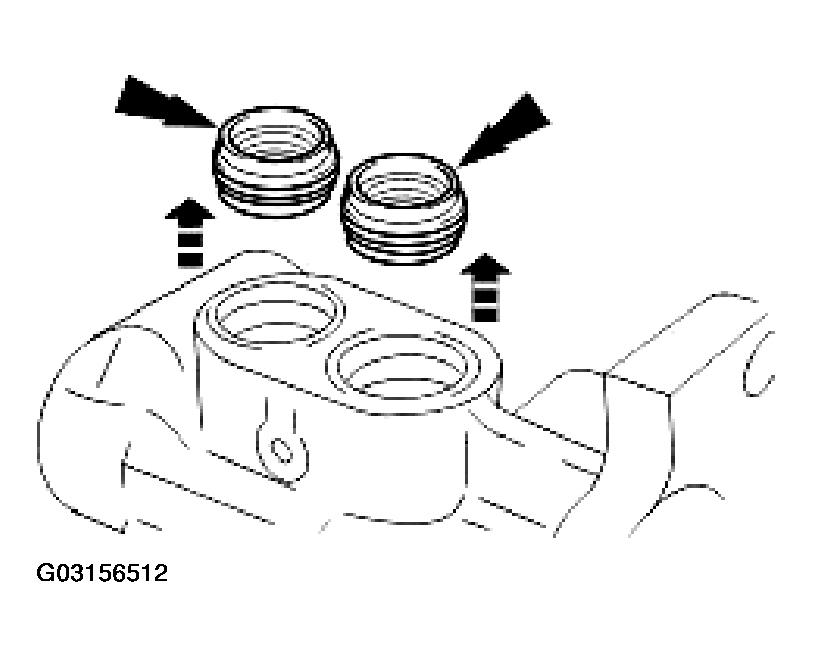

Fig 3: Removing Seals From Master Cylinder
Courtesy of JAGUAR CARS, INC.
Install plugs into master cylinder ports.

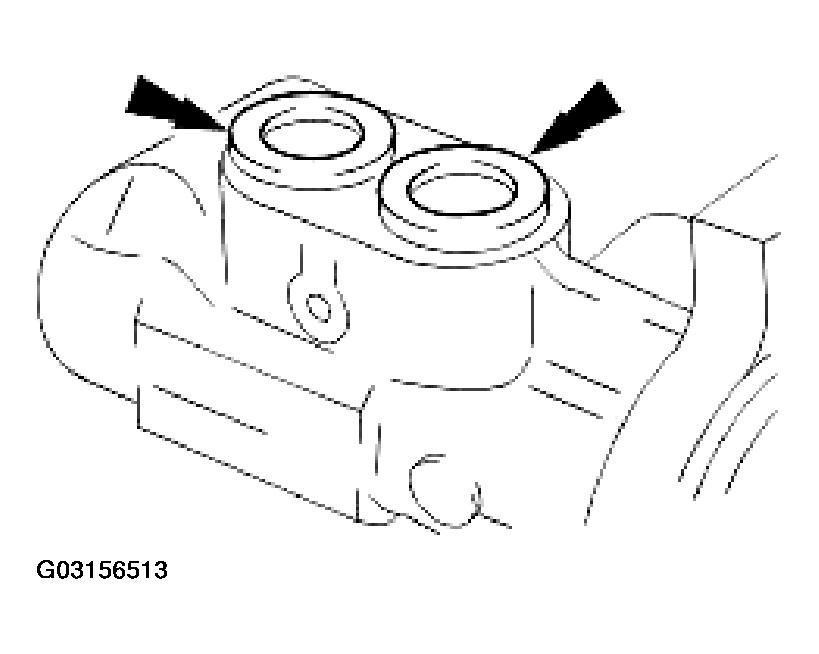

Fig 4: Installing Plugs Into Master Cylinder Ports
Courtesy of JAGUAR CARS, INC.
Clean components and mating surfaces.
