Brake Fluid Reservoir: Installation

  1. Install seals into master cylinder.
    • Remove plugs.
    • The Lubricate seals with clean brake fluid.
    • Install seals.

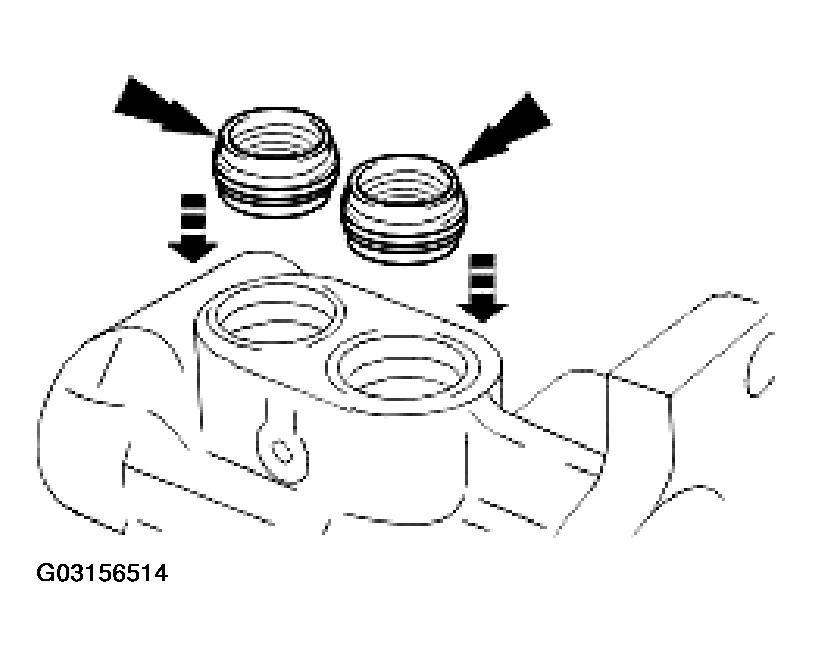

    Fig 1: Installing Seals Into Master Cylinder
    G03156514Courtesy of JAGUAR CARS, INC.
  2. Install reservoir to master cylinder.
    • Remove plugs.
    • Install reservoir, making sure reservoir is fully seated.
    • Install locating pin.

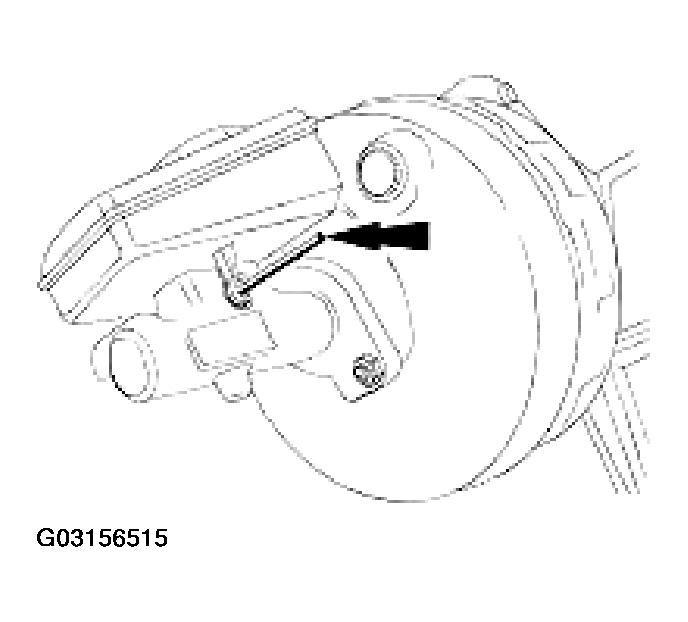

    Fig 2: Installing Reservoir To Master Cylinder
    G03156515Courtesy of JAGUAR CARS, INC.
  3. Install pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
  4. Install plenum cover. Refer to COWL VENT SCREEN .
  5. Install windshield wiper arm and blade assembly. Refer to WIPER PIVOT ARM .
  6. Reconnect battery ground cable. Refer to BATTERY RECONNECTION PROCEDURE .
  7. Bleed brake system. Refer to BLEEDING BRAKE SYSTEM .
  8. Remove paint-work protection covers and close engine compartment.
