Description And Operation: Notes
The hydraulic brake system is split in to two independent circuits: the primary circuit operates the front brakes and the secondary circuit operates the rear brakes. This type of system prevents complete brake failure in the event of a brake tube fracture.

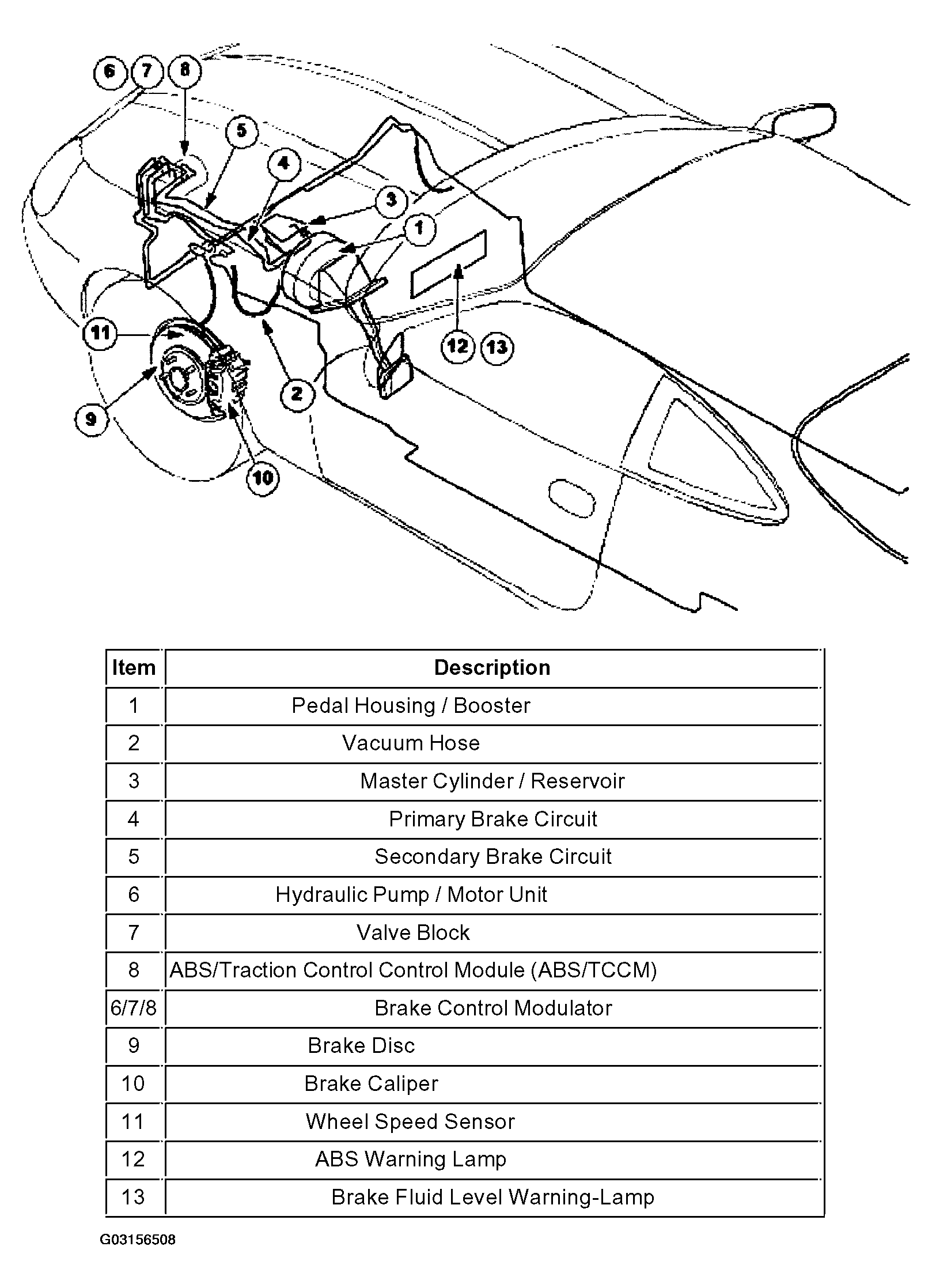

The hydraulic brake system consists of the following components:
