Instrument Panel Console Instrument Cluster: Removal

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .

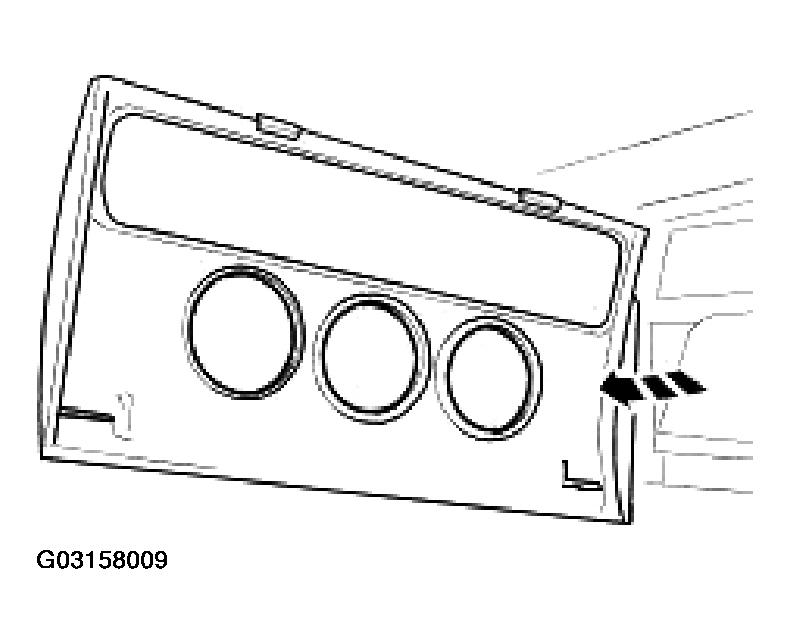

Remove center veneer panel.
- Using a thin plastic lever at base of center veneer panel, release four dowels from fascia.
- Lower panel to release upper locating tongues.
Fig 1: Removing Center Veneer Panel
Courtesy of JAGUAR CARS, INC.

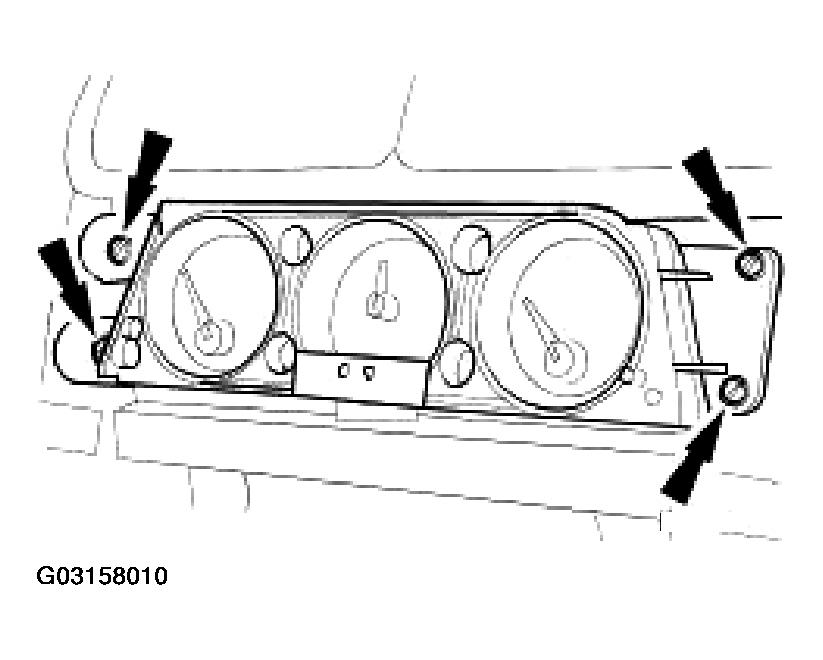

Remove the four gauge module screws.

Fig 2: Removing Gauge Module Screws
Courtesy of JAGUAR CARS, INC.

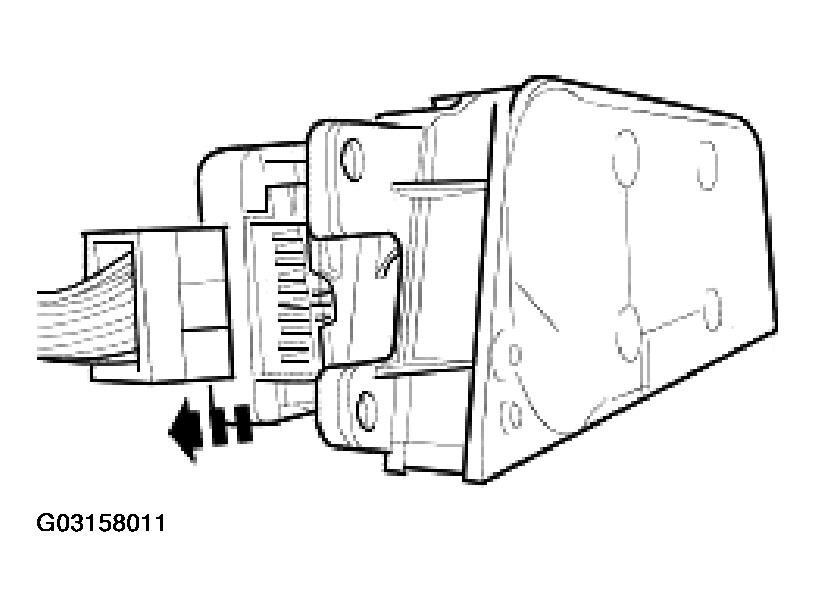

Position gauge module for access and disconnect harness connector.

Fig 3: Disconnecting Harness Connector
Courtesy of JAGUAR CARS, INC.
