Instrument Panel Console Instrument Cluster Lens: Removal

Remove center veneer panel.
- Using a thin plastic lever at base of center veneer panel, release four dowels from fascia.)
- Lower panel to release upper locating tongues.

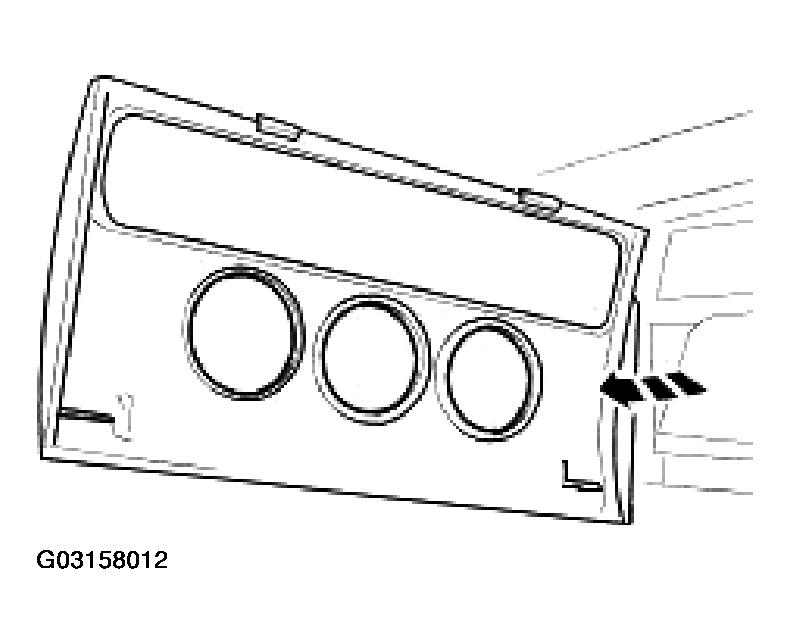

Fig 1: Removing Center Veneer Panel
Courtesy of JAGUAR CARS, INC.
Remove the four gauge module lens assembly screws.

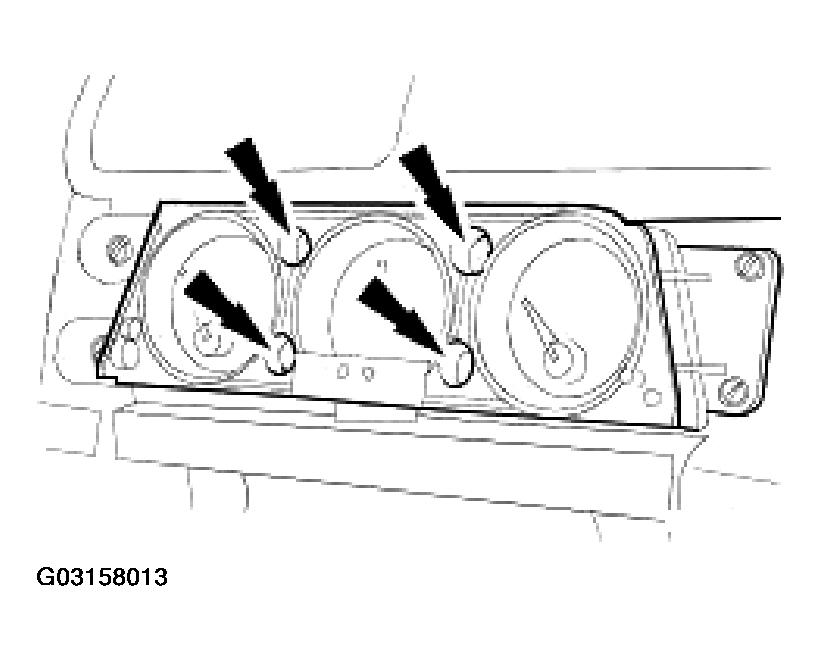

Fig 2: Removing Gauge Module Lens Assembly Screws
Courtesy of JAGUAR CARS, INC.
Withdraw lens assembly from gauge module and remove clock setting stalks.

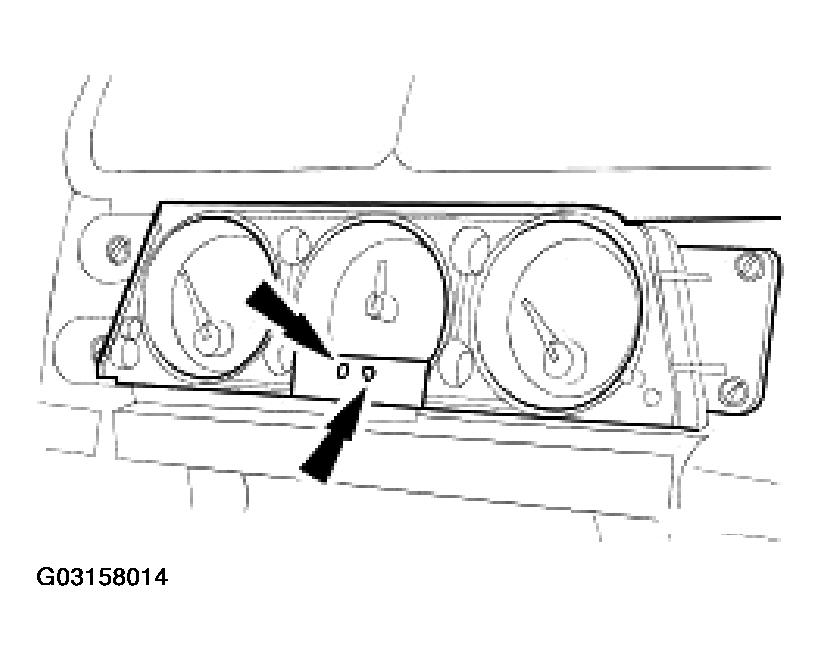

Fig 3: Removing Clock Setting Stalks
Courtesy of JAGUAR CARS, INC.
