Instrument Cluster Lens: Removal
- Turn ignition key to position 'II', adjust steering column to lowest and fully extended position and turn ignition key to 'O'.
- Disconnect the battery ground cable.
- Remove driver airbag. Refer to DRIVER-SIDE AIR BAG MODULE
.
- Remove steering wheel. Refer to STEERING WHEEL
.
- Remove driver side underscuttle. Refer to INSTRUMENT PANEL LOWER TRIM PANEL
.
- Remove major gauge module. Refer to INSTRUMENT CLUSTER .

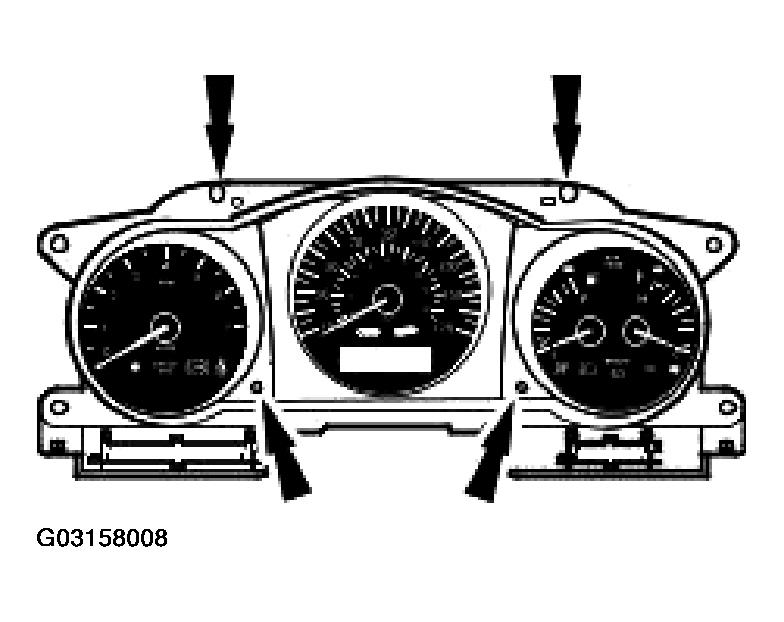

- Remove lens assembly screws and withdraw lens from module.
Courtesy of JAGUAR CARS, INC.
