Major Cluster

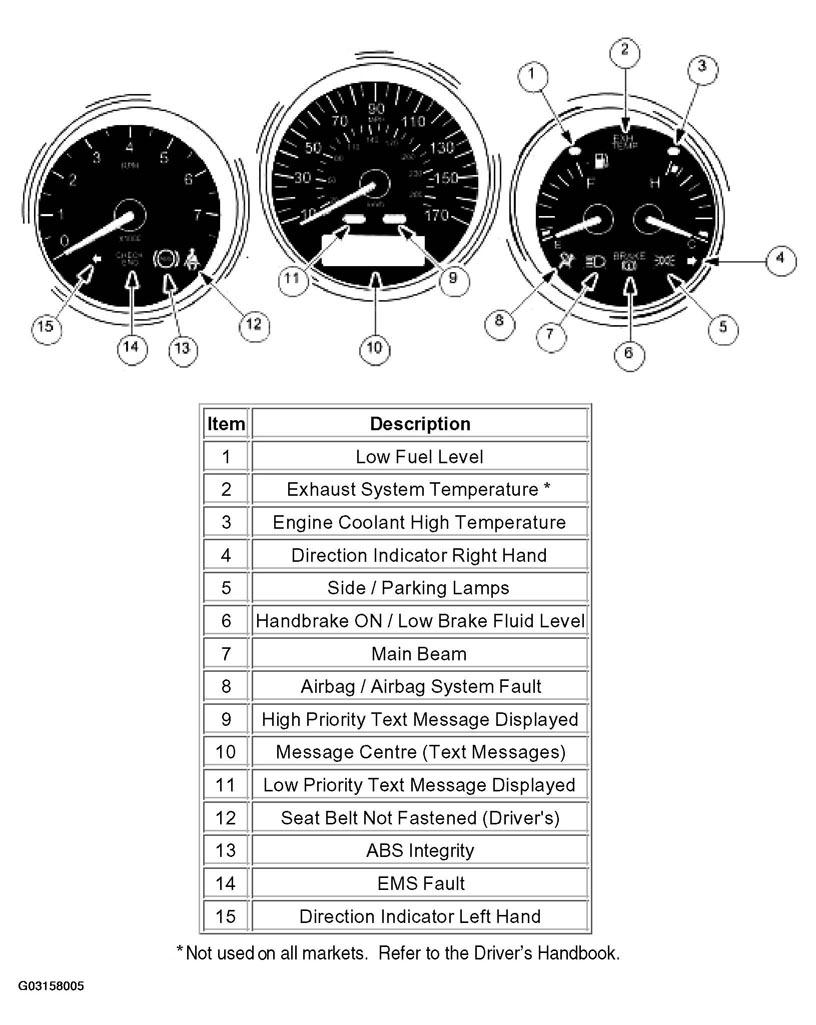

Fig 1: Identifying Major Cluster Components

Courtesy of JAGUAR CARS, INC.

All gauges look like conventional analogue gauges, but each pointer is driven by a stepper motor to provide more accurate indication.

The message center is used to warn the driver, using text messages; for warnings not covered by conventional warning lamps, to indicate that the Automatic Stability Control is operating and for other shared warnings. Two warning lamps, Red and Amber, are located above the Message center to attract the driver's attention when a text warning message has been displayed.
