Instrument Panel Console Instrument Cluster Bulb: Removal

  1. Disconnect the battery ground cable.
  2. Remove fascia center veneer panel. Refer to INSTRUMENT PANEL FINISH PANEL .
  3. Remove minor gauge module. Refer to INSTRUMENT PANEL CONSOLE INSTRUMENT CLUSTER .
  4. Rotate appropriate bulb holder 1/4 turn counter-clockwise, withdraw holder and remove bulb.

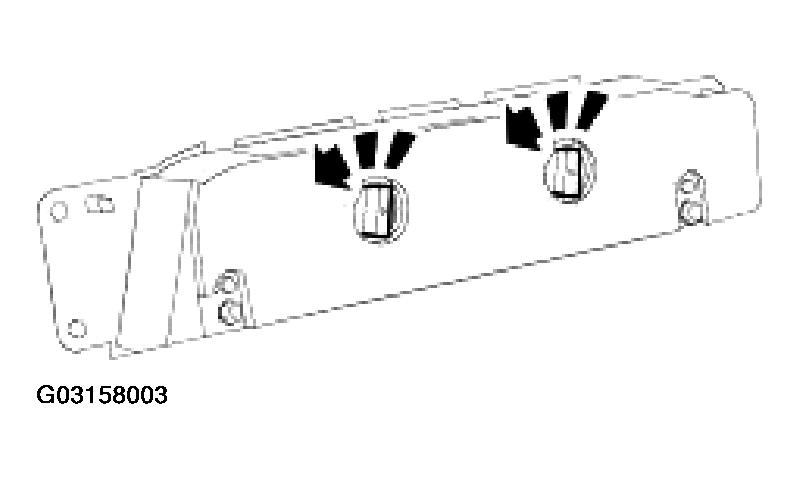

    Fig 1: Identifying Instrument Panel Console Instrument Cluster Bulbs
    G03158003Courtesy of JAGUAR CARS, INC.
