Instrument Cluster Bulb: Removal

  1. Remove major gauge module. Refer to INSTRUMENT CLUSTER .
  2. Position housing for access, rotate bulb holder 1/4 turn counter-clockwise, withdraw holder and remove bulb.

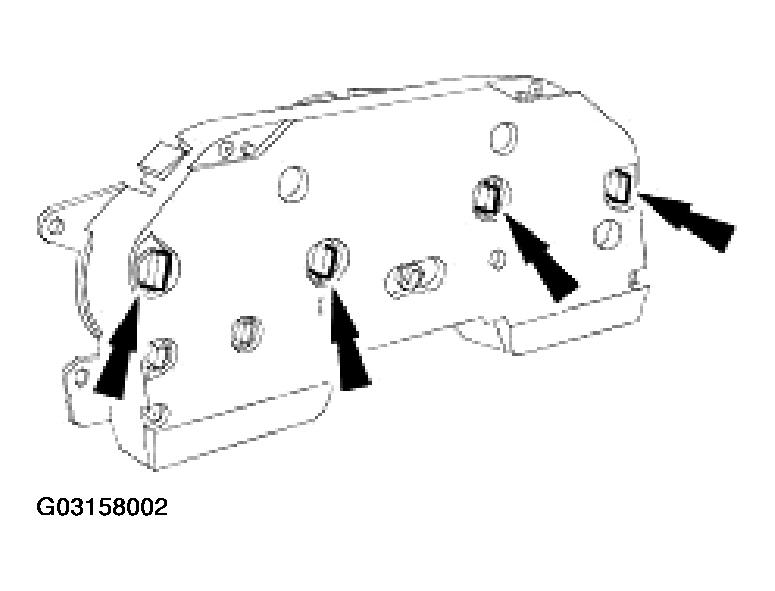

    Fig 1: Identifying Instrument Cluster Bulbs
    G03158002Courtesy of JAGUAR CARS, INC.
