Steering Column Lower Shroud: Removal

Move the driver's seat rearwards.
- Open driver's door and ensure that it remains open. (1)
- On driver's seat switch pack, move front switch rearwards to traverse driver's seat to the rear. (2)

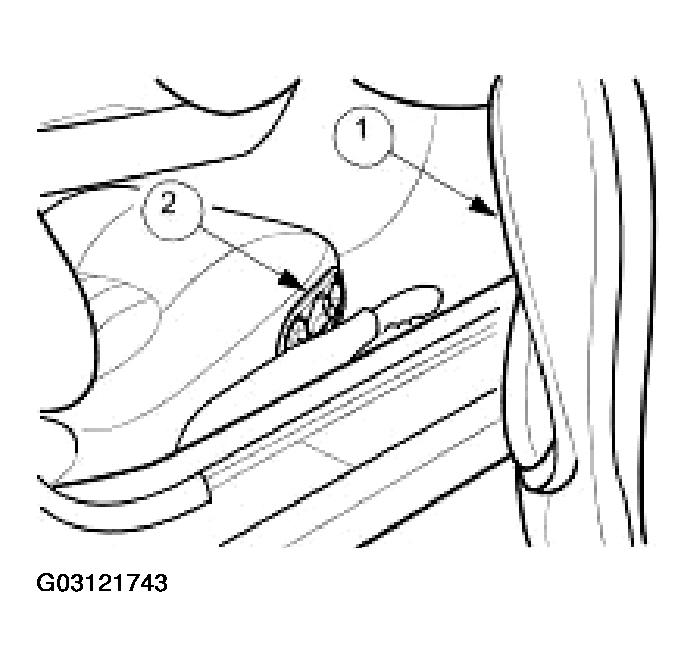

  Fig 1: Moving Driver's Seat Rearwards
  Courtesy of JAGUAR CARS, INC.
Remove the lower cowl from the steering column.
- Remove key from ignition switch. (1)
- Slacken and remove cowl securing screws. (2)
- Separate lower cowl from upper cowl (four tangs) and move lower cowl forward to access multiplugs (3).
- Disconnect the rheostat multiplug. (4)
- Disconnect the column adjustment harness multiplug. (5)
- Move lower cowl clear of steering column.

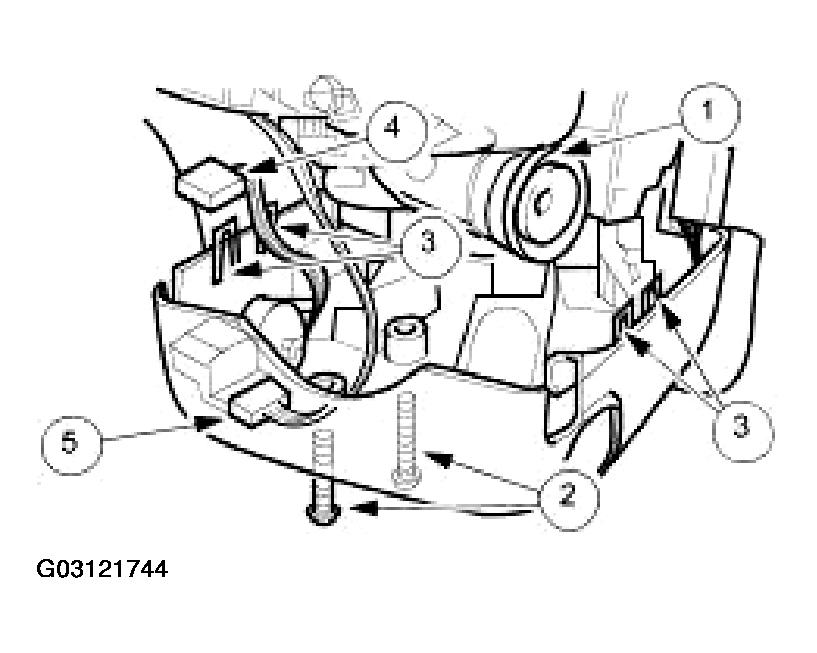

  Fig 2: Removing Lower Cowl
  Courtesy of JAGUAR CARS, INC.
Remove the rheostat from the cowl.
- Remove adjusting knob from rheostat. (1)
- Slacken and remove rheostat securing screw. (2)
- Move retaining tangs away from the column adjustment switch and release the switch from the lower cowl (3).
- Remove lower cowl from the steering column.

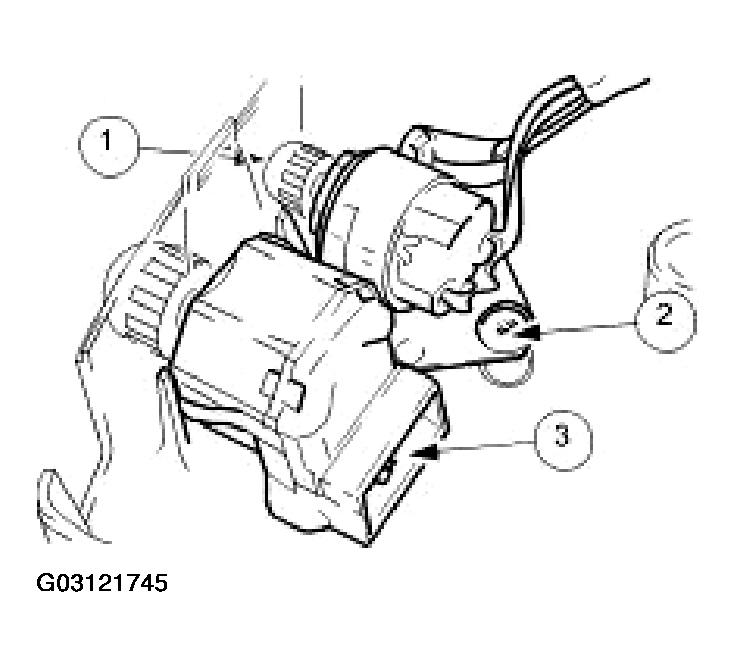

  Fig 3: Removing Rheostat From Cowl
  Courtesy of JAGUAR CARS, INC.
