Steering Column Lower Shroud: Installation

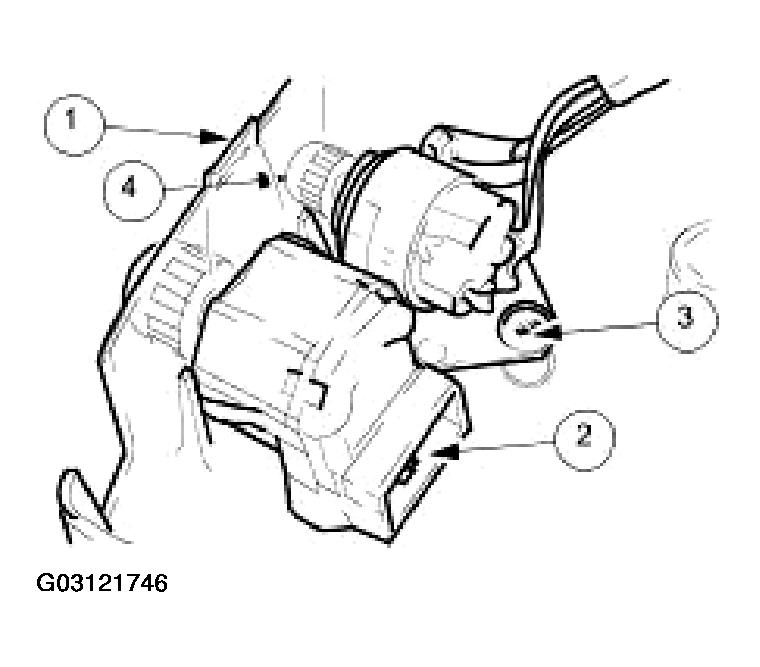

Fit rheostat and column switch to the lower cowl.
- Position lower cowl to front of steering column. (1)
- Fit and fully seat column adjustment switch to cowl ensuring that retaining tangs fully engage. (2)
- Position rheostat in cowl and fit and tighten securing screws. (3)
- Fit and fully seat rheostat adjusting knob. (4)

  Fig 1: Installing Rheostat And Column Switch To Lower Cowl
  Courtesy of JAGUAR CARS, INC.

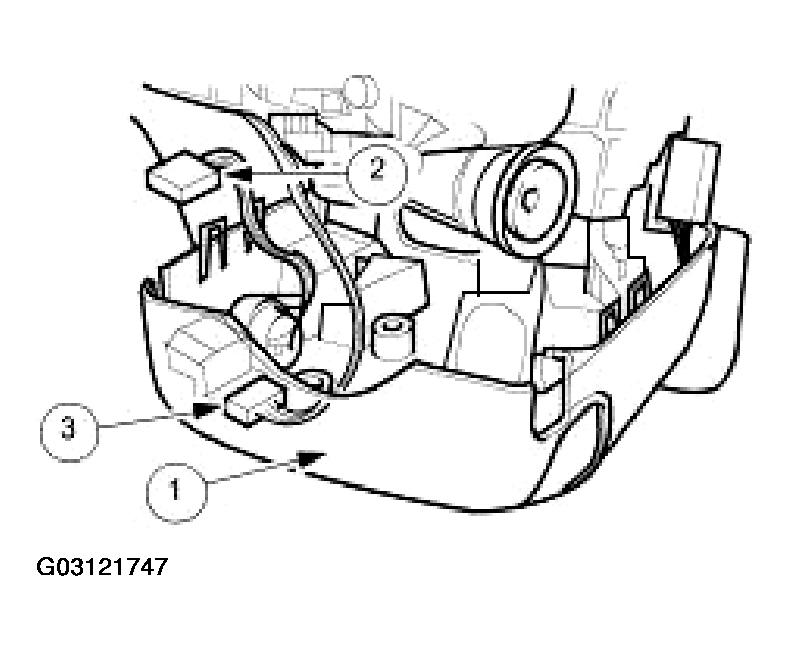

Connect multiplugs.
- Position cowl to facilitate re-connection of multiplugs. (1)
- Connect rheostat harness multiplug. (2)
- Connect column adjustment harness multiplug. (3)

  Fig 2: Connecting Multiplugs
  Courtesy of JAGUAR CARS, INC.

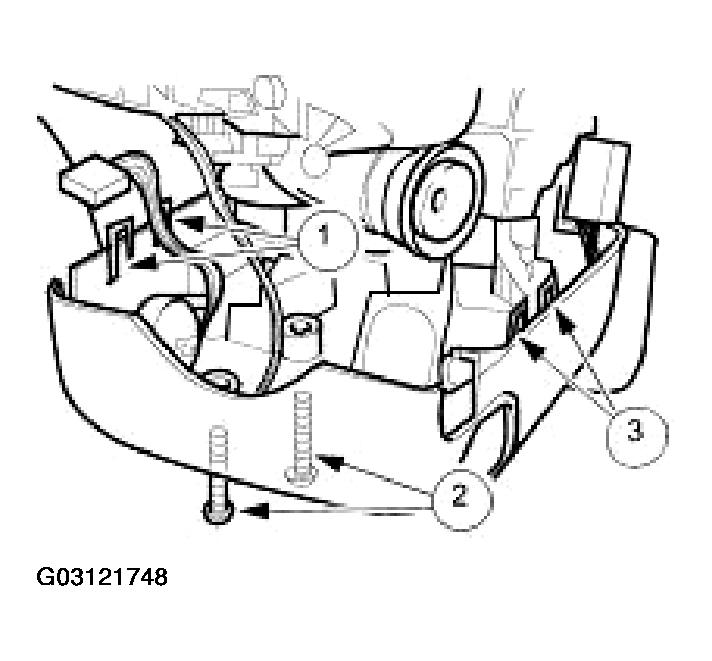

Fit lower cowl.
- Locating four dowels, fit lower cowl to upper cowl. (1) & (3)
- Fit and tighten cowl securing screws. (2)

  Fig 3: Installing Lower Cowl
  Courtesy of JAGUAR CARS, INC.

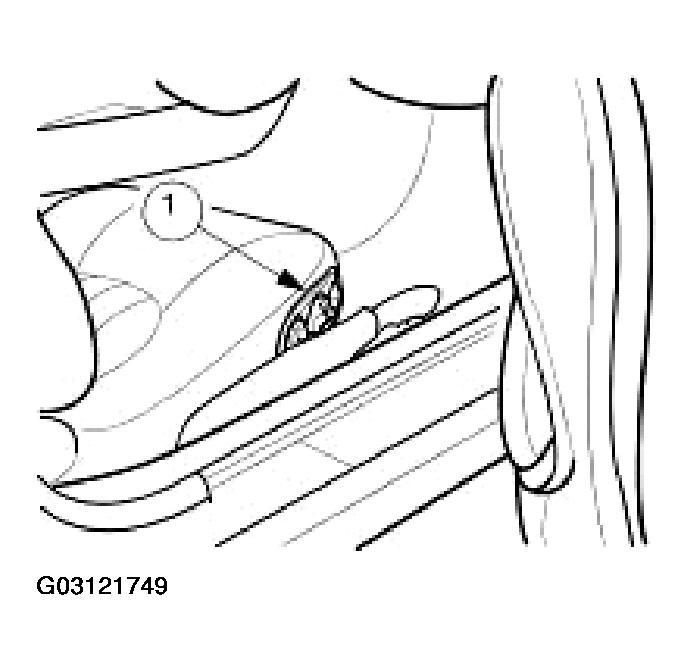

Re-position driver's seat.
- On driver's seat switch pack move front switch forward to return seat to original position. (1)
- Shut driver's door.

  Fig 4: Re-Positioning Driver's Seat
  Courtesy of JAGUAR CARS, INC.
