Rear Cup Holder: Removal

Open center console glove box lid.

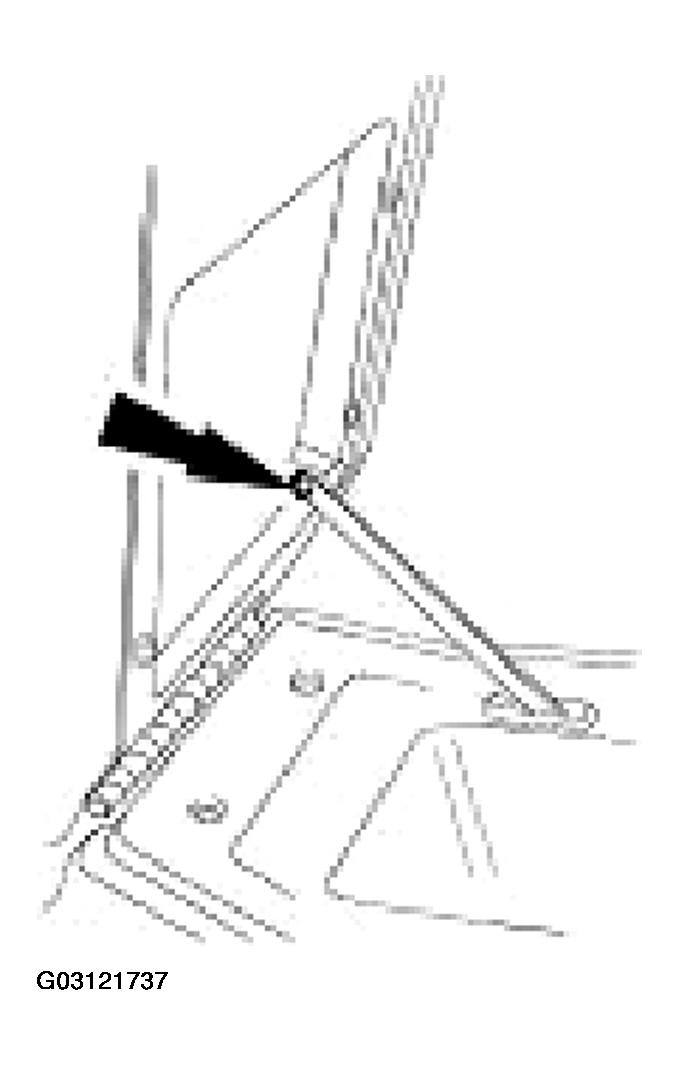

Slacken and remove screw securing check arm to glovebox lid.

Fig 1: Removing Screw Securing Check Arm To Glovebox Lid
Courtesy of JAGUAR CARS, INC.

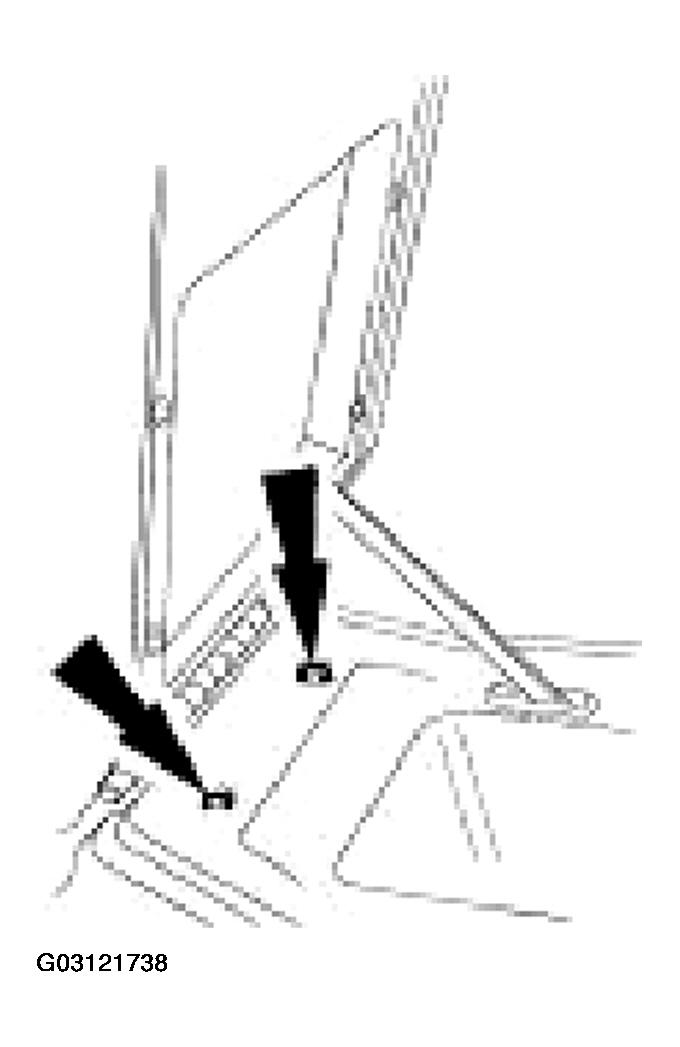

Slacken and remove two screws securing glove box lid to console and remove lid from console.

Fig 2: Removing Glove Box Lid
Courtesy of JAGUAR CARS, INC.
Operate latch to release the cup holder lid.

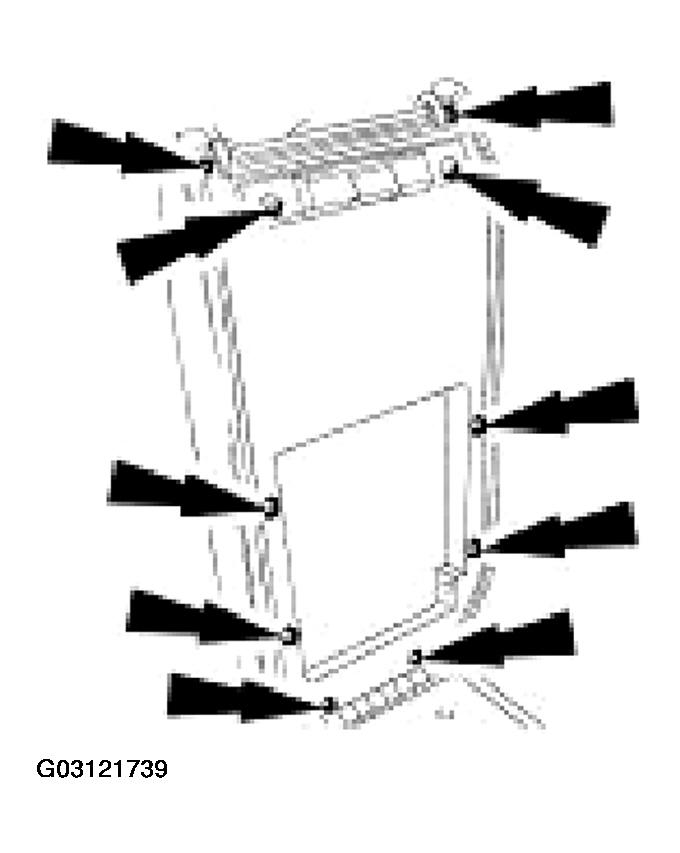

Slacken and remove the ten screws securing inner finisher to glovebox lid.

Fig 3: Removing Screws Securing Inner Finisher To Glovebox Lid
Courtesy of JAGUAR CARS, INC.
Remove inner finisher and hinge from glove box lid.

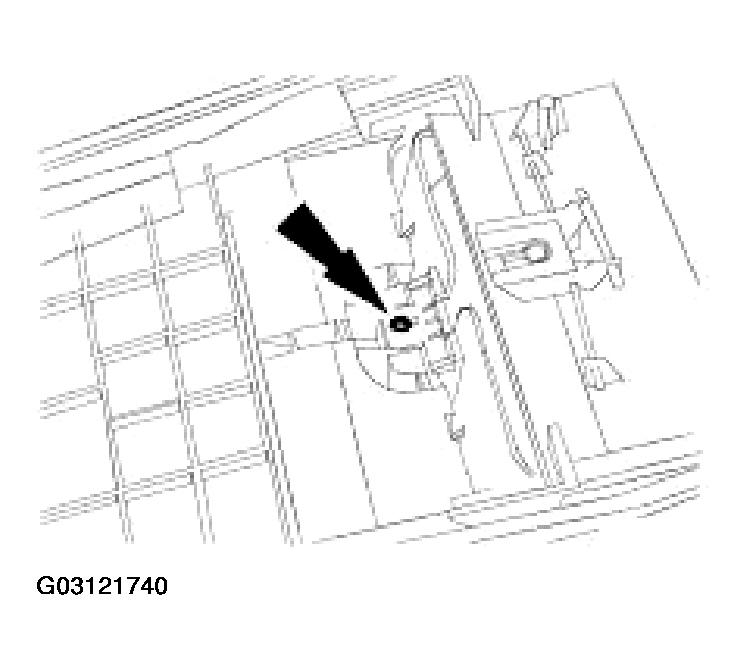

Slacken and remove cup holder latch securing screw and remove latch assembly.

Fig 4: Removing Latch Assembly
Courtesy of JAGUAR CARS, INC.

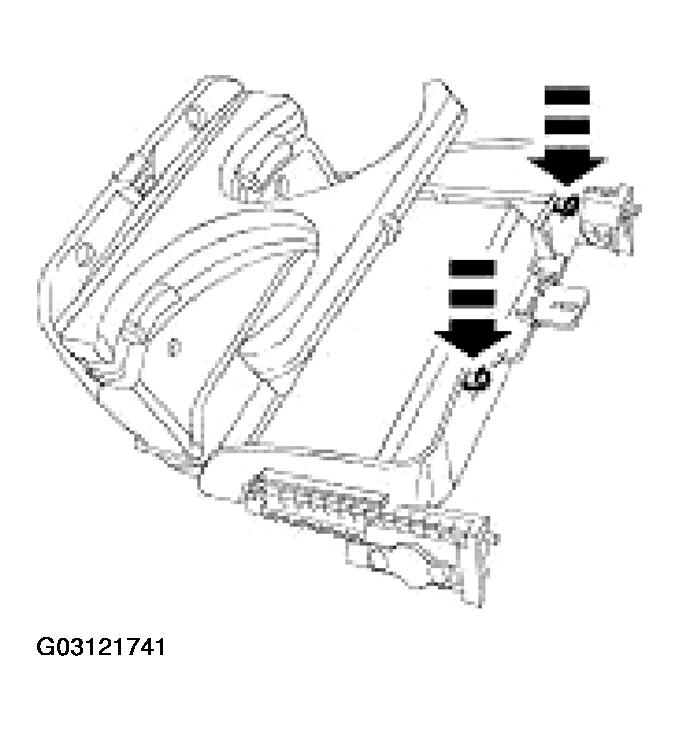

Open cupholder, depress tang each side of latch location and withdraw cupholder assembly from base.

Fig 5: Removing Cupholder Assembly From Base
Courtesy of JAGUAR CARS, INC.

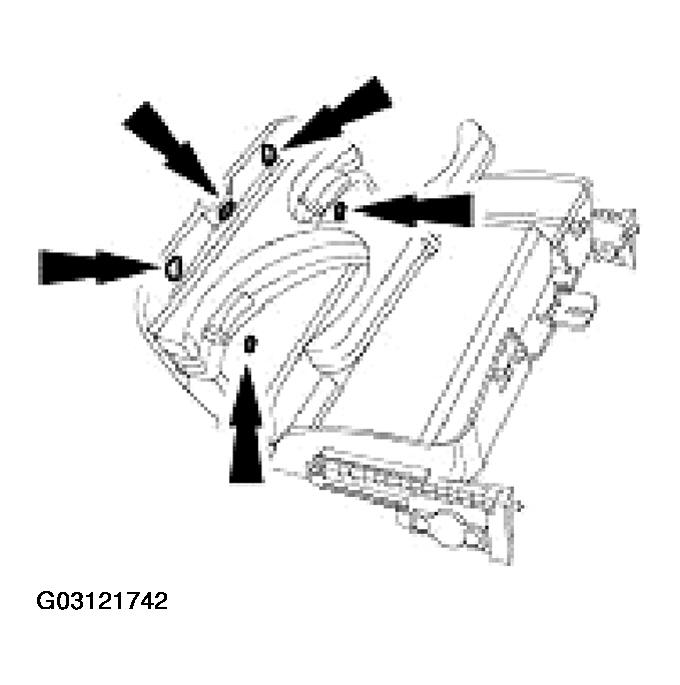

Slacken and remove the five cup holder lid trim panel securing screws and remove panel from lid by releasing lower edge and withdrawing upwards.

Fig 6: Removing Cup Holder Lid Trim Panel From Lid
Courtesy of JAGUAR CARS, INC.
