Overhead Console: Removal

  1. Disconnect the battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
  2. Detach the roof console.
    • Release the retaining clips.

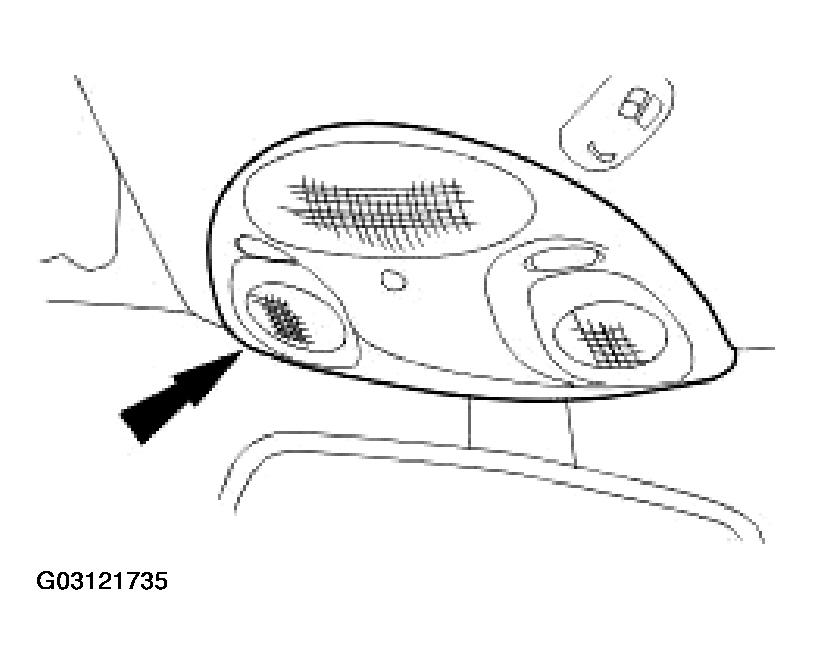

      Fig 1: Detaching Roof Console
      G03121735Courtesy of JAGUAR CARS, INC.
  3. Remove the roof console.
    • Disconnect the roof console electrical connectors.

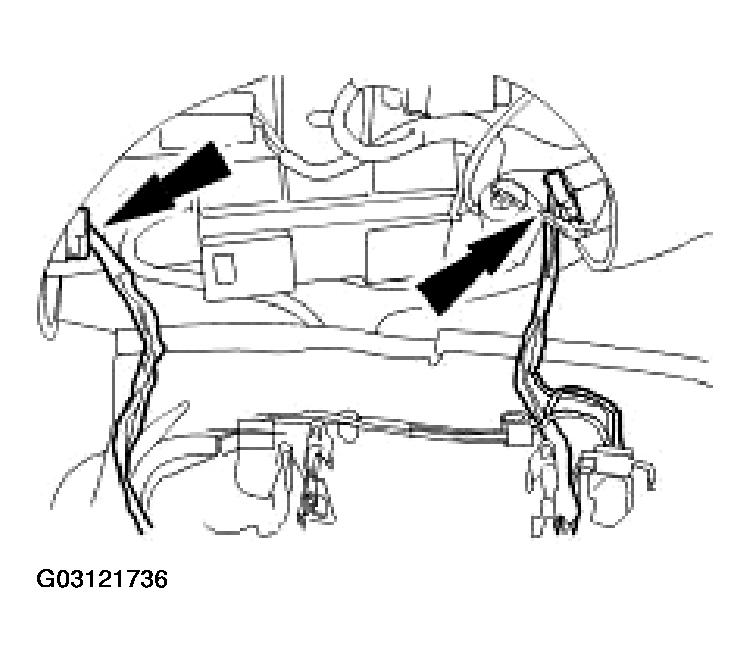

      Fig 2: Removing Roof Console
      G03121736Courtesy of JAGUAR CARS, INC.
