Instrument Panel Lower Trim Panel: Removal

Remove battery cover and disconnect earth lead from terminal. Refer to BATTERY DISCONNECTION PROCEDURE .
Slacken and remove the two screws securing the lower underscuttle to the fascia panel cross-member.

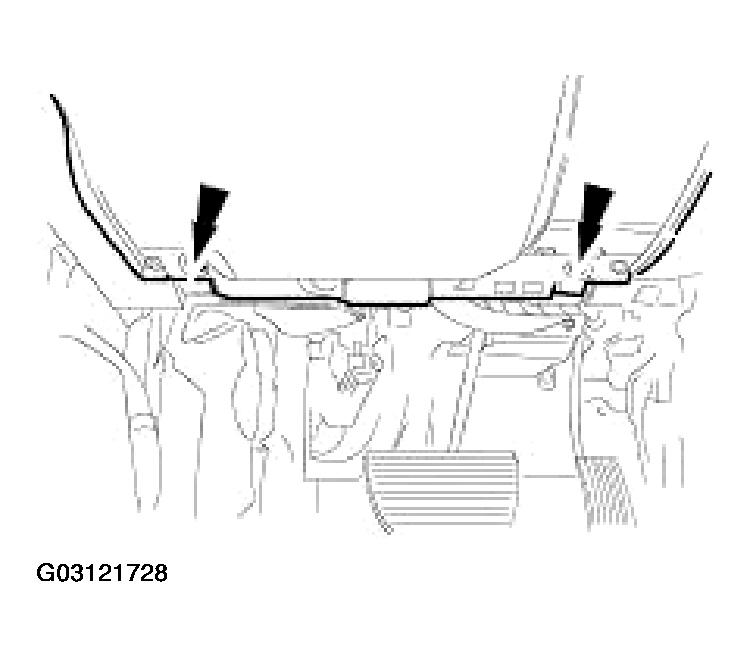

Fig 1: Removing Screws Securing Lower Underscuttle
Courtesy of JAGUAR CARS, INC.
Withdraw the underscuttle upper fasteners from their locations in the fascia panel.

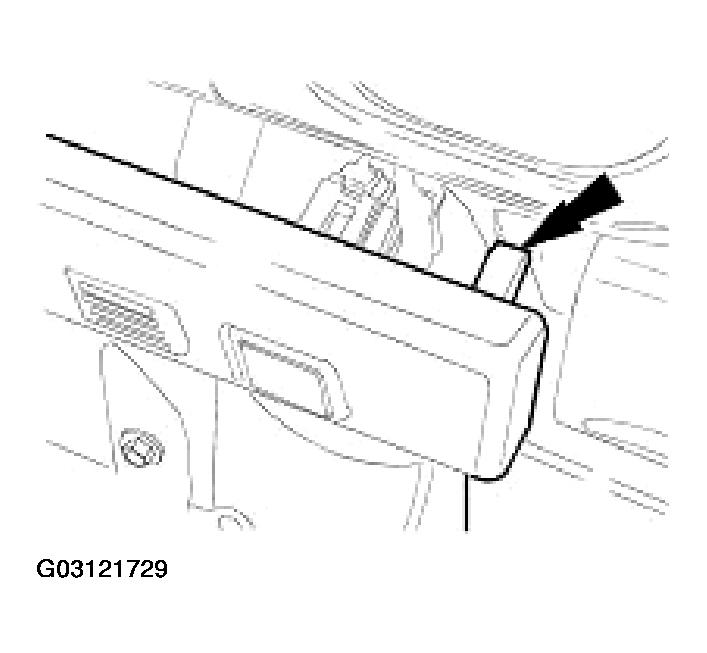

Fig 2: Removing Underscuttle Upper Fasteners
Courtesy of JAGUAR CARS, INC.
Position the underscuttle rearwards for access.
Disconnect harness multiplugs and reposition underscuttle.
- Disconnect air conditioning aspirator harness multiplug. (1)
- Disconnect valet switch harness multiplug. (2)

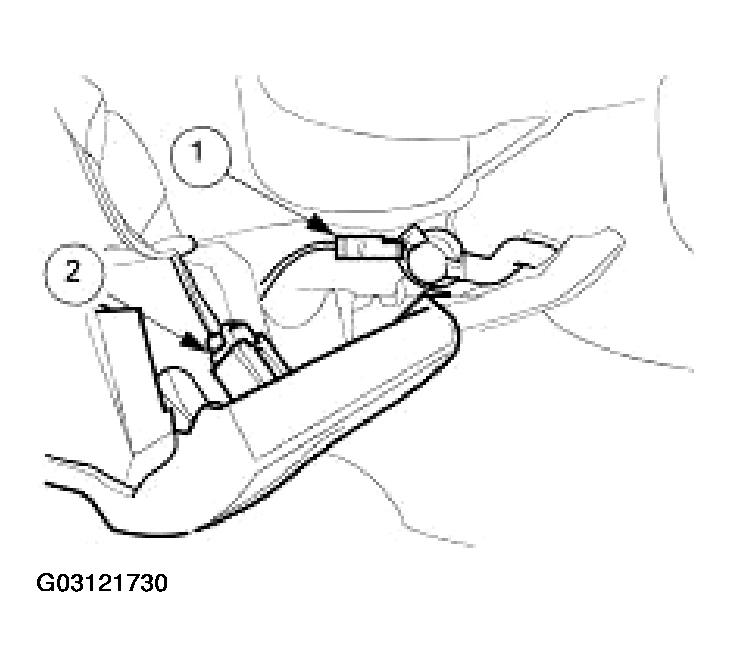

  Fig 3: Disconnecting Harness Multiplugs
  Courtesy of JAGUAR CARS, INC.
Remove stowage compartment lid.
- Position underscuttle for access. (1)
- Slacken and remove two screws securing the stowage compartment lid to the underscuttle and remove the lid. (2)

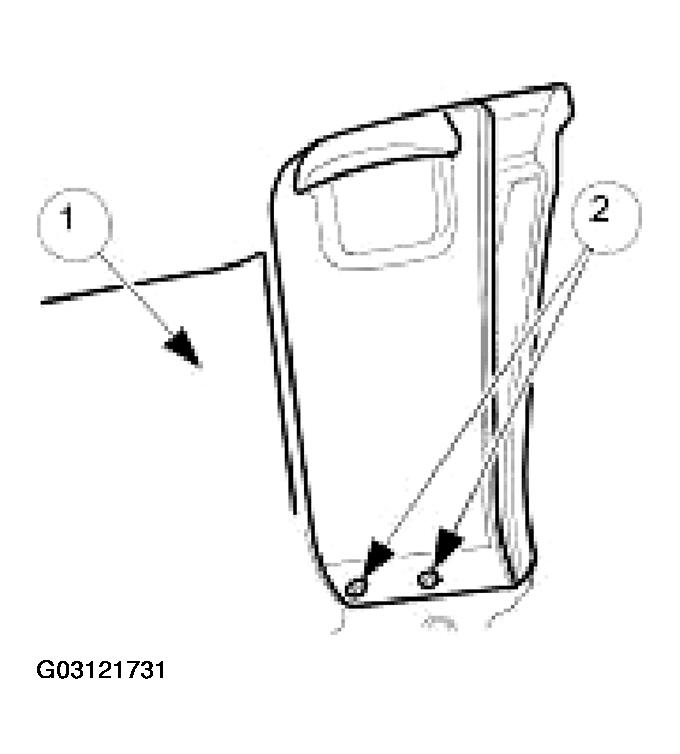

  Fig 4: Removing Stowage Compartment Lid
  Courtesy of JAGUAR CARS, INC.
Release the valet switch securing tangs and remove the switch.

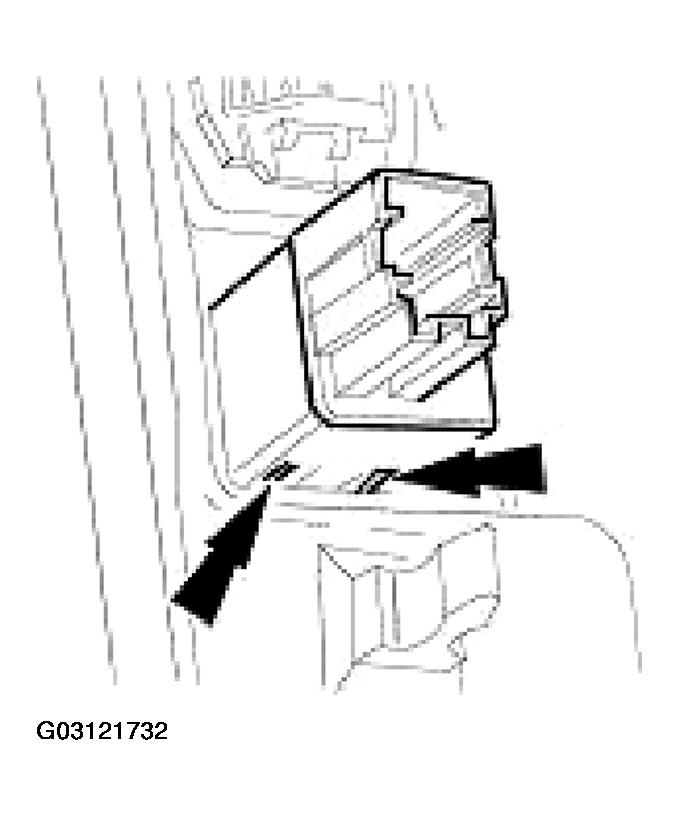

Fig 5: Removing Valet Switch
Courtesy of JAGUAR CARS, INC.
Remove air conditioning aspirator.
- Slacken and remove the two nuts securing the air conditioning aspirator mounting bracket to the vent and remove the aspirator. (1)

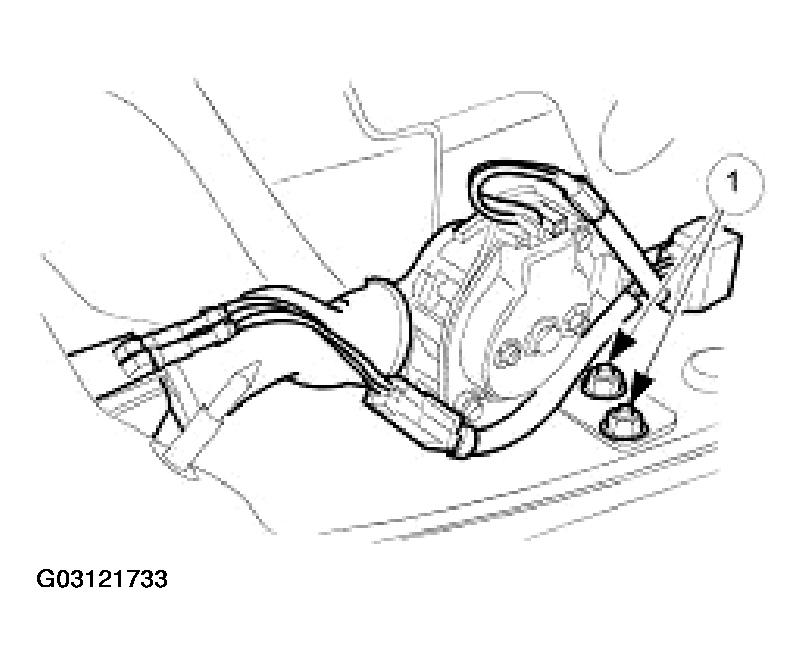

  Fig 6: Removing Air Conditioning Aspirator
  Courtesy of JAGUAR CARS, INC.
Release the aspirator vent securing tangs and remove the vent from the underscuttle.

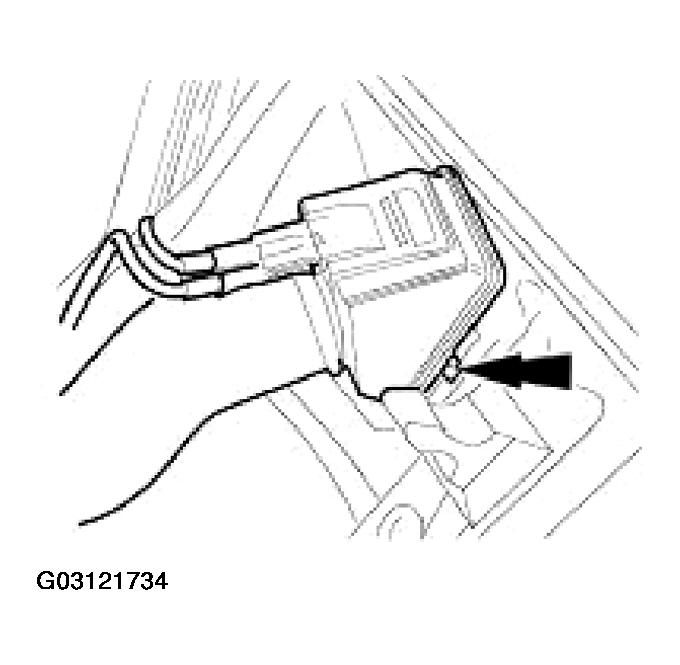

Fig 7: Removing Aspirator Vent From Underscuttle
Courtesy of JAGUAR CARS, INC.
Remove the underscuttle from the vehicle.
