Instrument Panel Finish Panel: Removal

WARNING: FOLLOWING REMOVAL OF THE PASSENGER AIR BAG DEPLOYMENT DOOR, NEW RETAINING CLIPS MUST ALWAYS BE FITTED.

Open Glovebox lid.
Withdraw passenger air bag deployment door for access. Refer to PASSENGER-SIDE AIR BAG MODULE for air bag door removal.
Using a thin plastic lever, carefully release center vent veneer panel tangs from fascia clips.

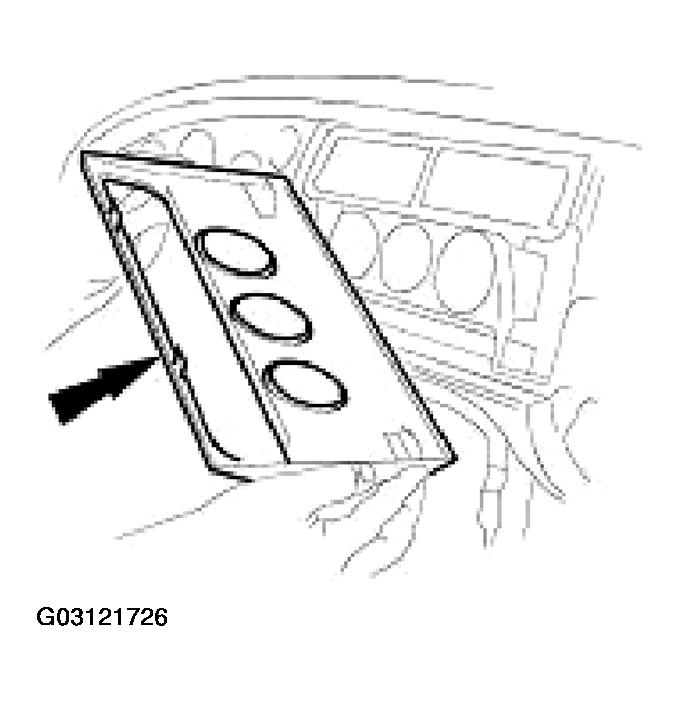

Fig 1: Removing Center Vent Veneer Panel
Courtesy of JAGUAR CARS, INC.
Remove and discard center vent veneer panel securing clips.

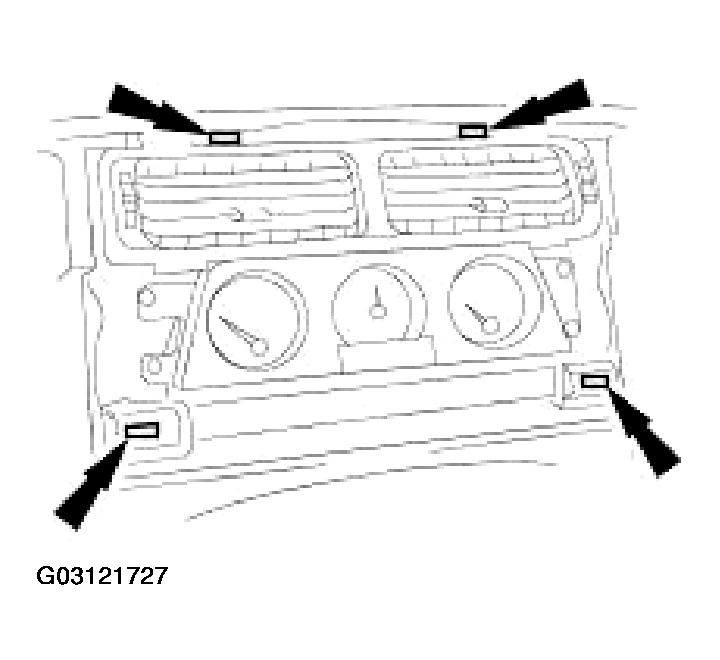

Fig 2: Removing Center Vent Veneer Panel Securing Clips
Courtesy of JAGUAR CARS, INC.
