Instrument Cluster Finish Panel: Removal

Remove driver side underscuttle. Refer to INSTRUMENT PANEL LOWER TRIM PANEL .
Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY DISCONNECTION PROCEDURE .
Slacken and remove the two veneer panel securing screws.

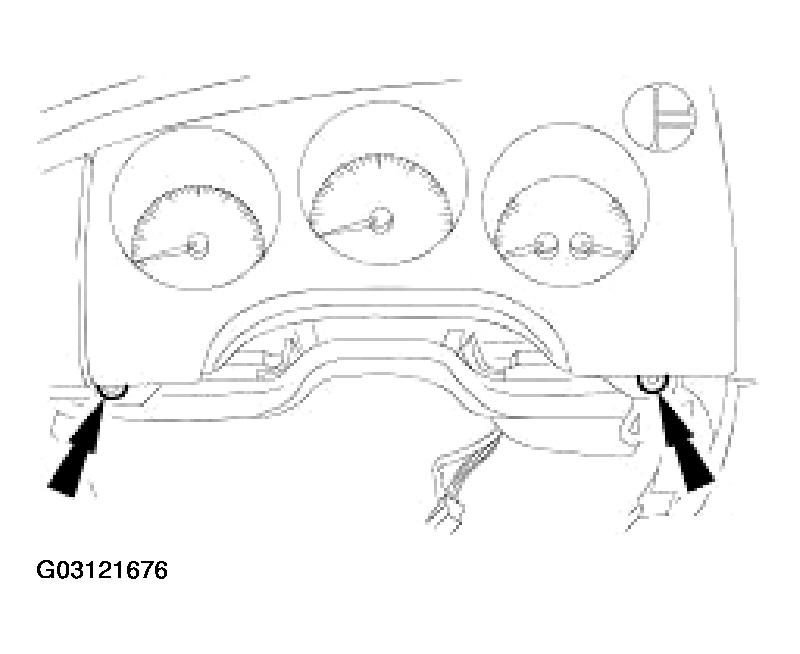

Fig 1: Removing Veneer Panel Securing Screws
Courtesy of JAGUAR CARS, INC.
Withdraw veneer panel from fascia upper locating slots and disconnect trip computer switch multiplug.

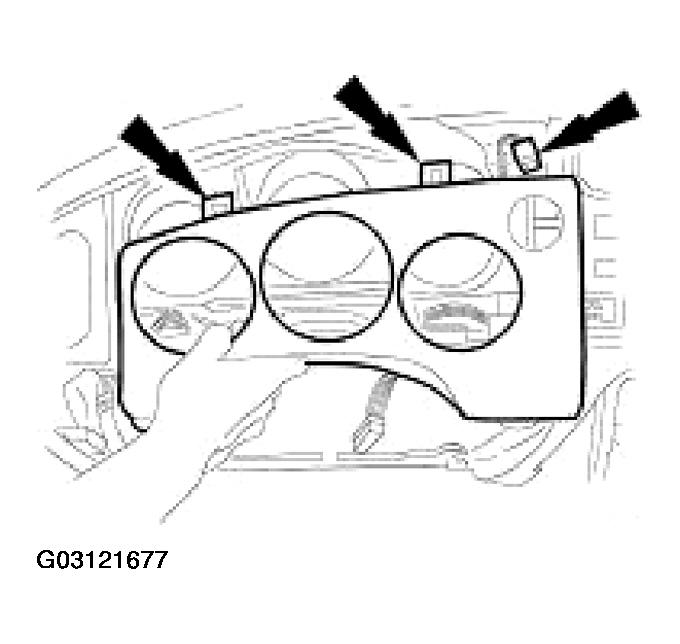

Fig 2: Removing Veneer Panel & Disconnecting Trip Computer Switch
Courtesy of JAGUAR CARS, INC.
Position veneer panel for access and remove trip computer switch.

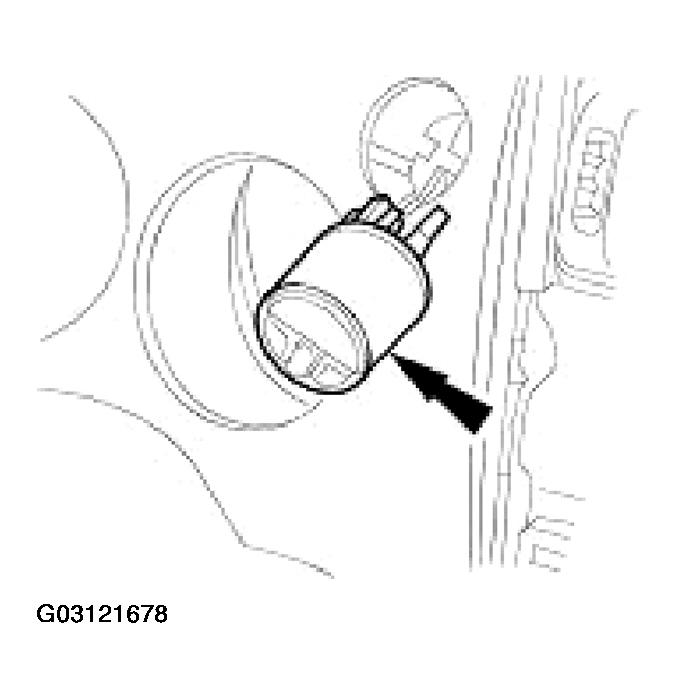

Fig 3: Removing Trip Computer Switch
Courtesy of JAGUAR CARS, INC.
Slacken and remove instrument panel surround securing nuts and remove surround from veneer panel.
