Glove Compartment: Removal

Open glove box lid and slacken and remove four screws securing liner to the fascia.

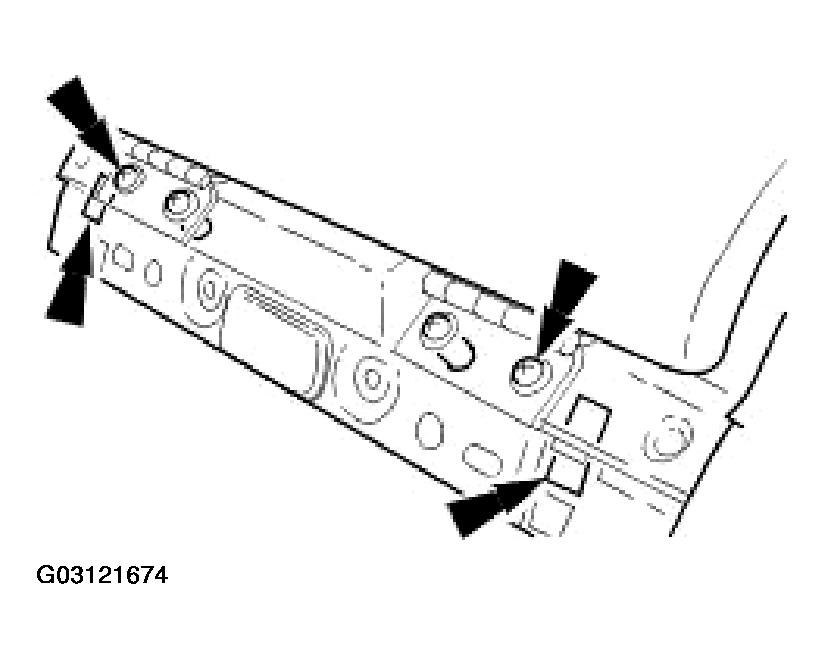

Fig 1: Removing Liner-To-Fascia Screws
Courtesy of JAGUAR CARS, INC.

NOTE: Do not disturb the two inner screws as these are for glovebox alignment only.

Slacken and remove two outer screws securing glovebox to cross-member.
- Withdraw liner tangs and dowels from cross-member and separate liner.

  Fig 2: Removing Outer Screws Securing Glovebox To Cross-Member
  Courtesy of JAGUAR CARS, INC.
Position glove box for access, disconnect footwell and glovebox lamp multiplugs and withdraw the glove box assembly.
