Glove Compartment Lid: Removal

  1. Remove glovebox from fascia. Refer to GLOVE COMPARTMENT
  2. Move the glove box lid damper cord forward to release clip from lid.

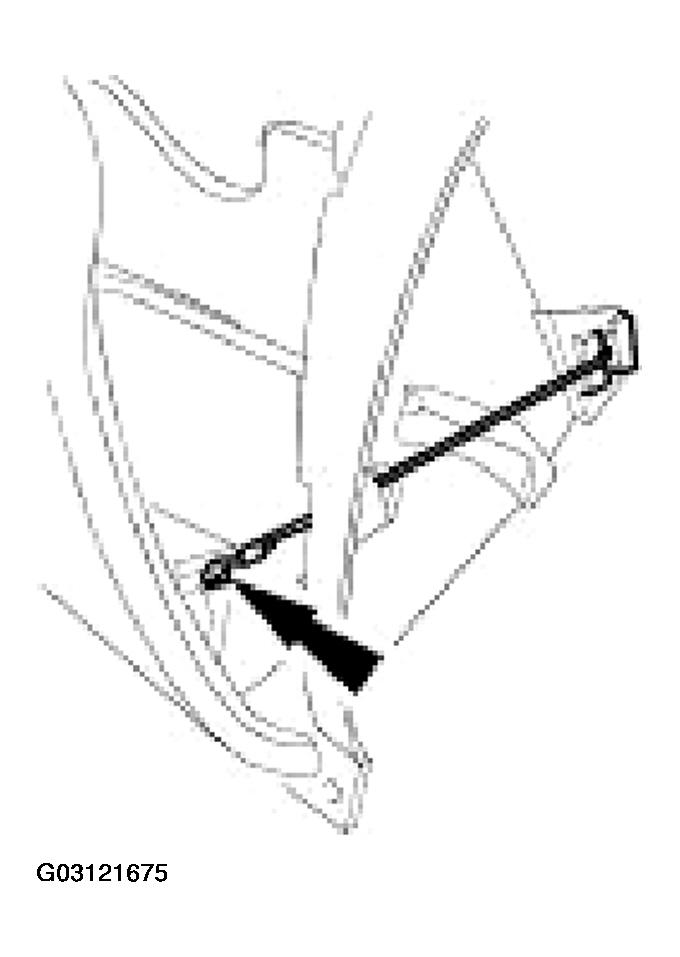

    Fig 1: Releasing Damper Cord
    G03121675Courtesy of JAGUAR CARS, INC.
  3. Remove glove box liner from lid.
  4. Slacken and remove the four hinge securing nuts.
  5. Carefully withdraw the lid.
  6. Remove the hinges.
