Floor Console Stowage Compartment: Removal

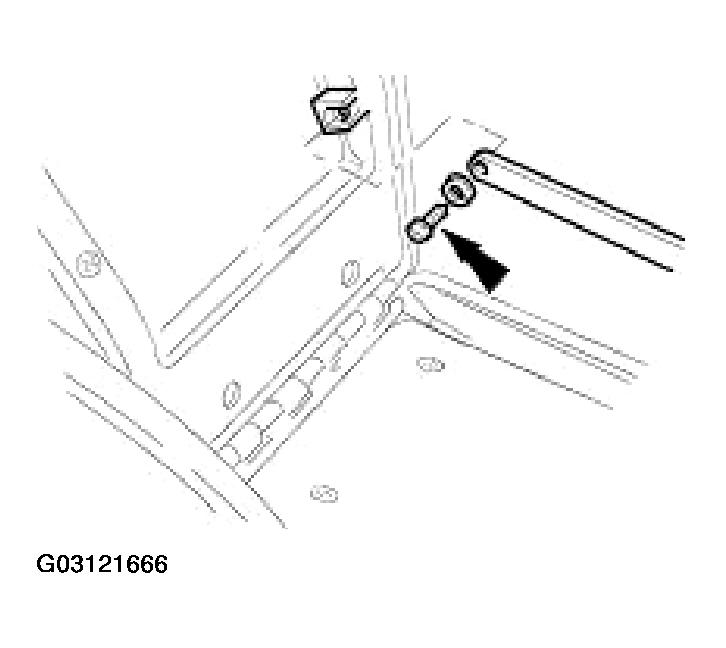

Remove glove box lid stay.
- Open glove box lid, slacken and remove the lid stay securing screw and remove lid stay.

  Fig 1: Removing Glove Box Lid Stay
  Courtesy of JAGUAR CARS, INC.

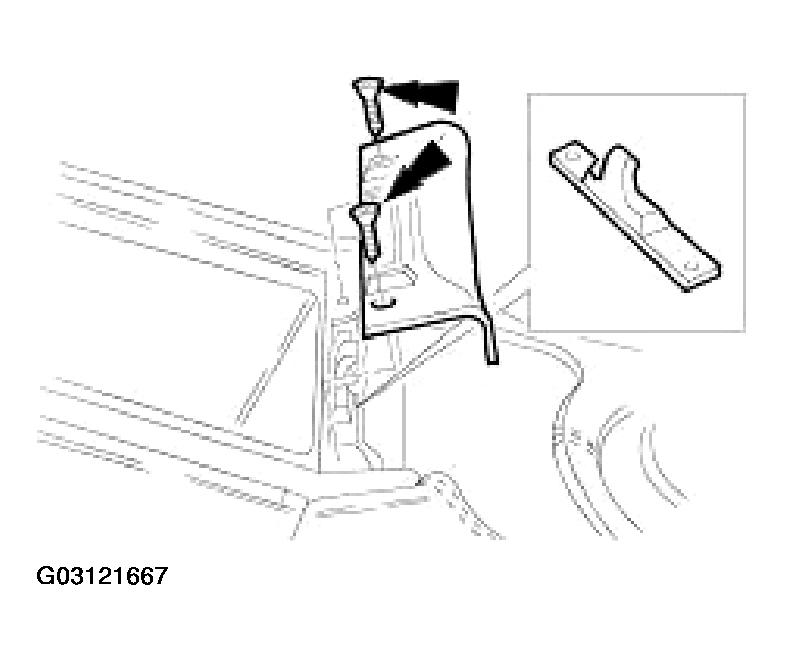

Slacken and remove latch securing screws and remove latch assembly.

Fig 2: Removing Latch Assembly
Courtesy of JAGUAR CARS, INC.

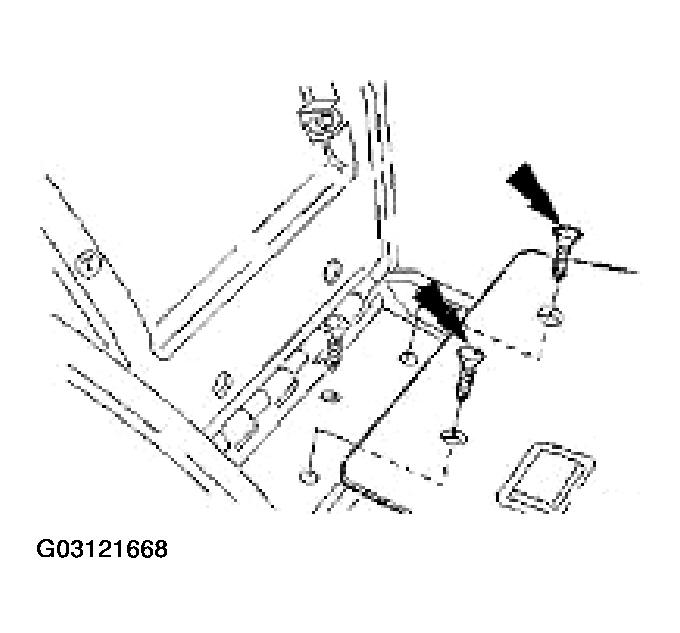

Slacken and remove liner rear securing screws and remove liner.

Fig 3: Removing Liner
Courtesy of JAGUAR CARS, INC.
