Floor Console Finish Panel: Removal

Apply handbrake and turn ignition key to II.
Depress brake pedal, move gear selector to position N and turn ignition key to O.
Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY DISCONNECTION PROCEDURE .
Remove gear selector surround finisher. Refer to SELECTOR LEVER GATE FINISH PANEL .

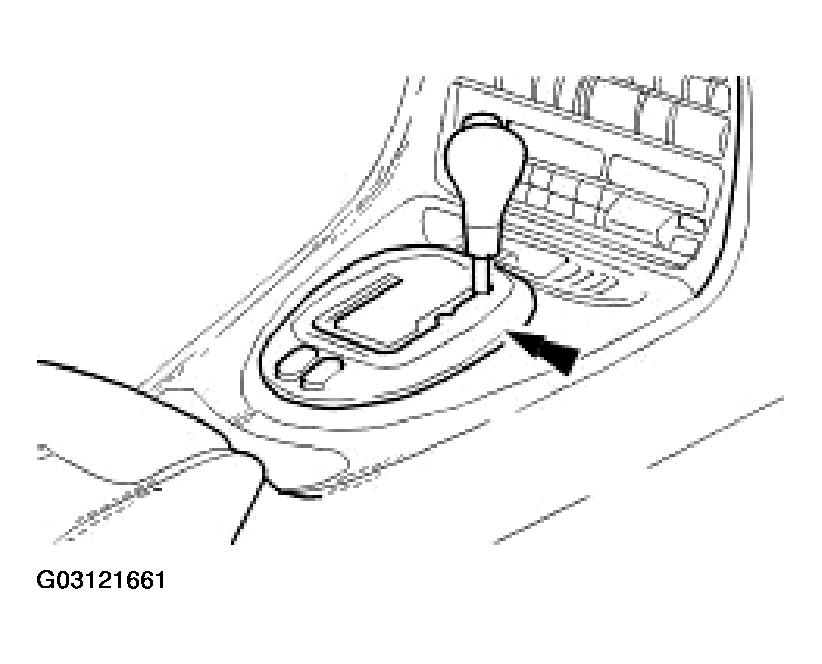

Fig 1: Removing Gear Selector Surround Finisher
Courtesy of JAGUAR CARS, INC.

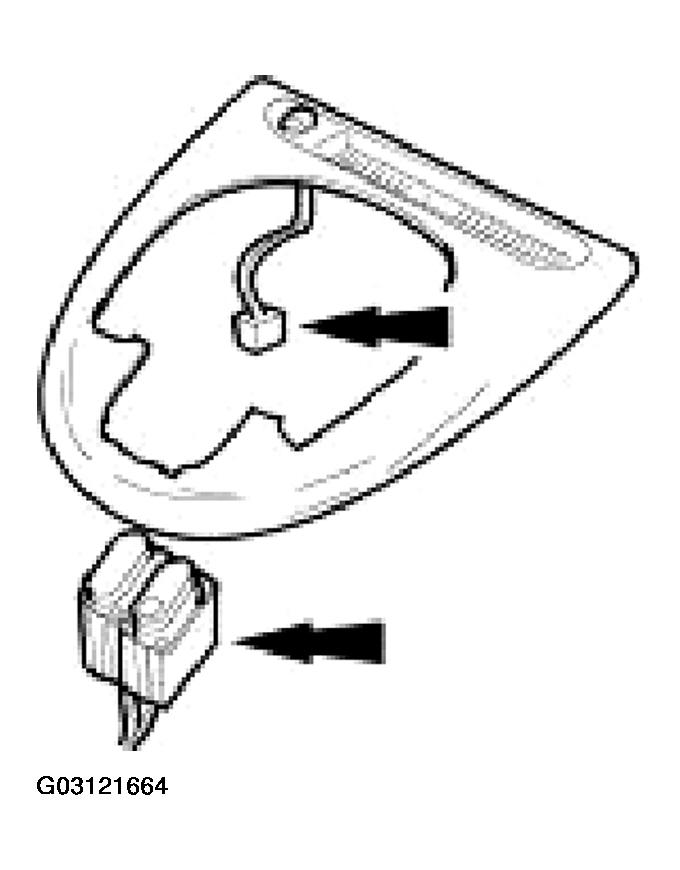

Remove Sport mode and Cruise Control switches from surround finisher.

Fig 2: Removing Sport Mode And Cruise Control Switches
Courtesy of JAGUAR CARS, INC.
Slacken and remove the four screws securing the two console veneer panel clamp plates and remove the clamp plates.

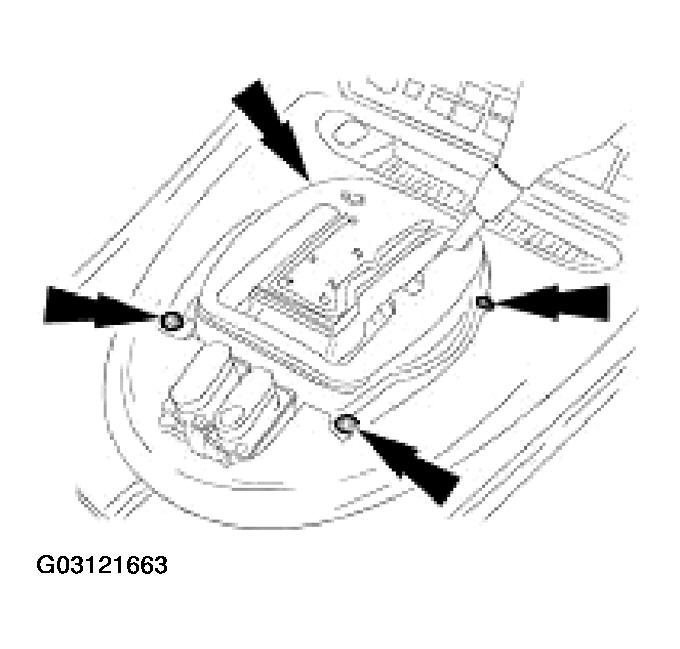

Fig 3: Removing Console Veneer Panel Clamp Plates Screws
Courtesy of JAGUAR CARS, INC.
Withdraw veneer panel, passing switches through the aperture. On the convertible model, disconnect the roof operating switch harness multiplug.

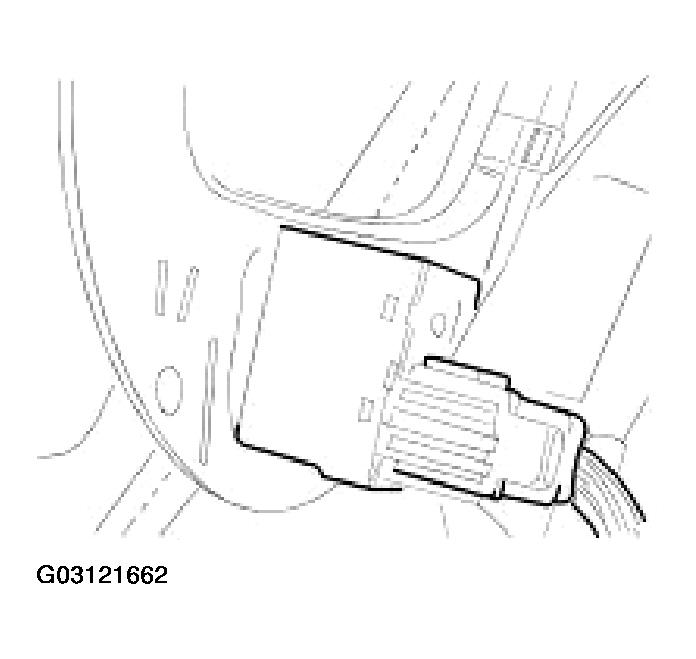

Fig 4: Disconnecting Roof Operating Switch (Convertible Models)
Courtesy of JAGUAR CARS, INC.
Remove oddments tray and remove veneer panel from console.

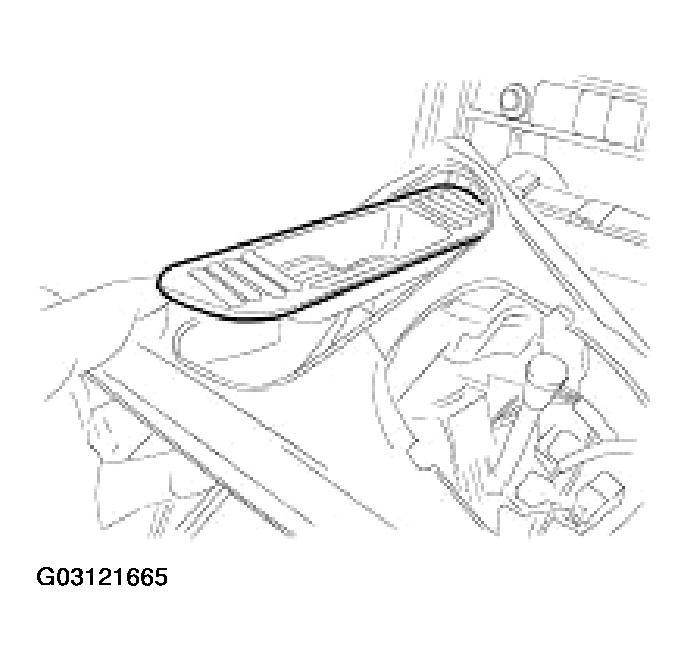

Fig 5: Removing Oddments Tray And Veneer Panel
