Floor Console Ashtray: Removal

  1. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY DISCONNECTION PROCEDURE .
  2. Remove center console for access. Refer to FLOOR CONSOLE  .
  3. Open ashtray lid and remove cigar lighter.
  4. Remove cigar lighter housing.
    • Remove tape securing harness to console underside.
    • Slacken and remove retaining ring from underside and remove housing complete with cable.

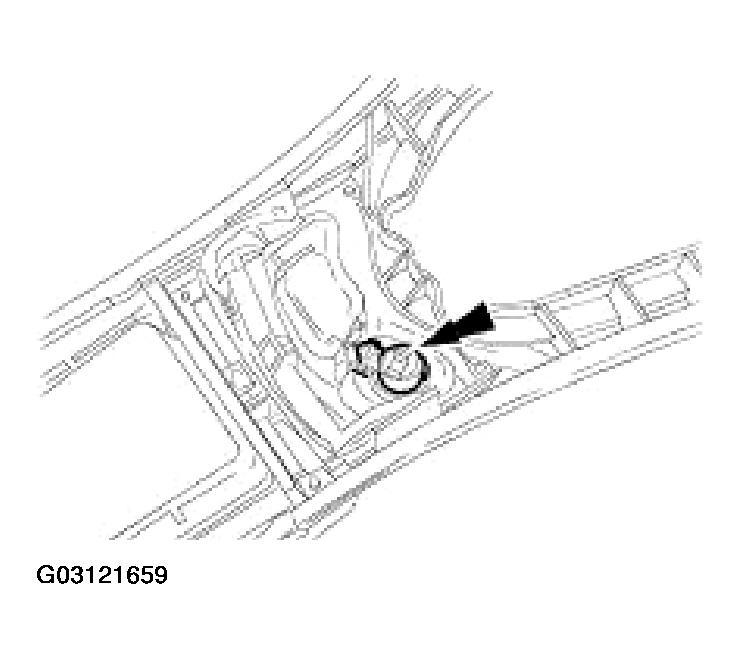

      Fig 1: Removing Cigar Lighter Housing
      G03121659Courtesy of JAGUAR CARS, INC.
  5. Release bulb housing tangs and withdraw bulb and housing from underside complete with flying lead.
  6. Position console for access, slacken and remove the four ashtray securing screws and remove ashtray from console.

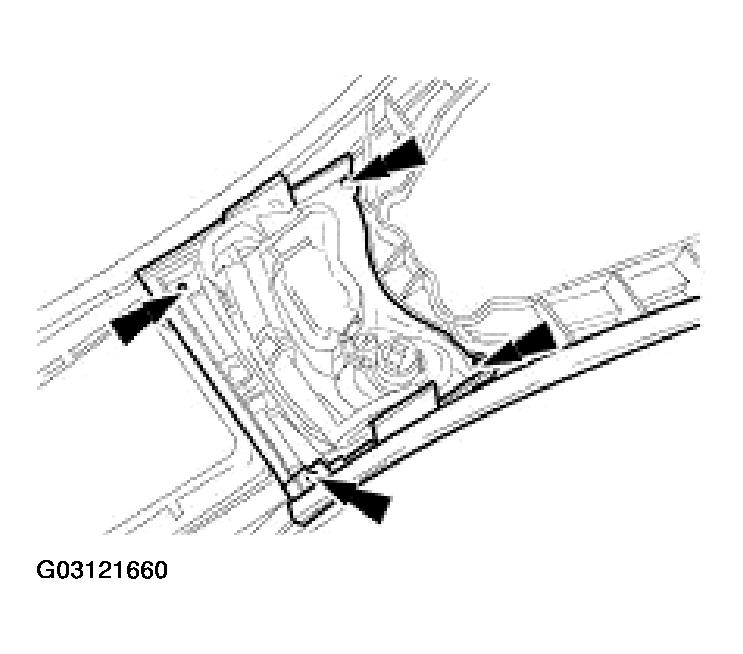

    Fig 2: Removing Ashtray
    G03121660Courtesy of JAGUAR CARS, INC.
