Audio Unit Housing: Removal

Remove battery cover and disconnect earth lead from terminal. Refer to BATTERY DISCONNECTION PROCEDURE .
Remove 'J' gate surround. Refer to SELECTOR LEVER GATE FINISH PANEL .
Remove center console assembly for access. Refer to FLOOR CONSOLE .
Slacken and remove the six radio console securing screws and partially withdraw the console for access.

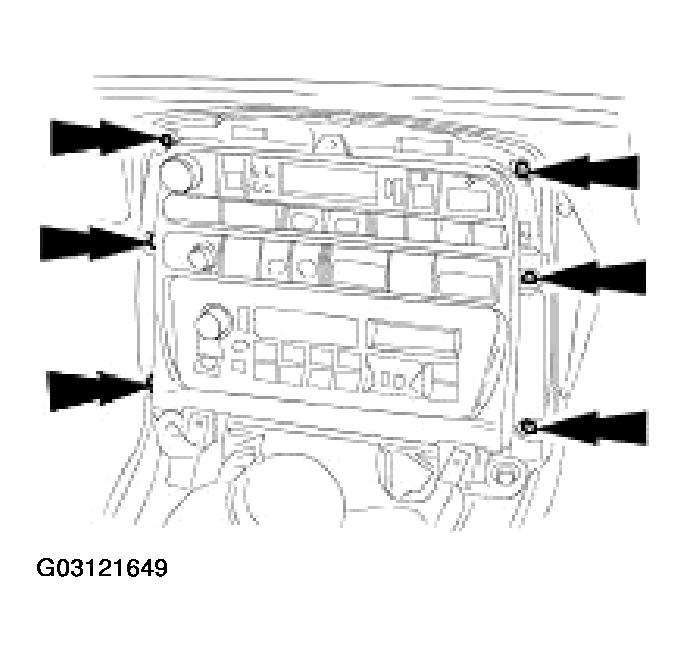

Fig 1: Removing Radio Console Securing Screws
Courtesy of JAGUAR CARS, INC.
Disconnect radio assembly.
- Disconnect console harness multiplugs and aerial co-axial connector.
- Slacken and remove nut securing earth lead to radio and remove lead from stud.
- Disconnect radio harness multiplug and position harness clear of center console.

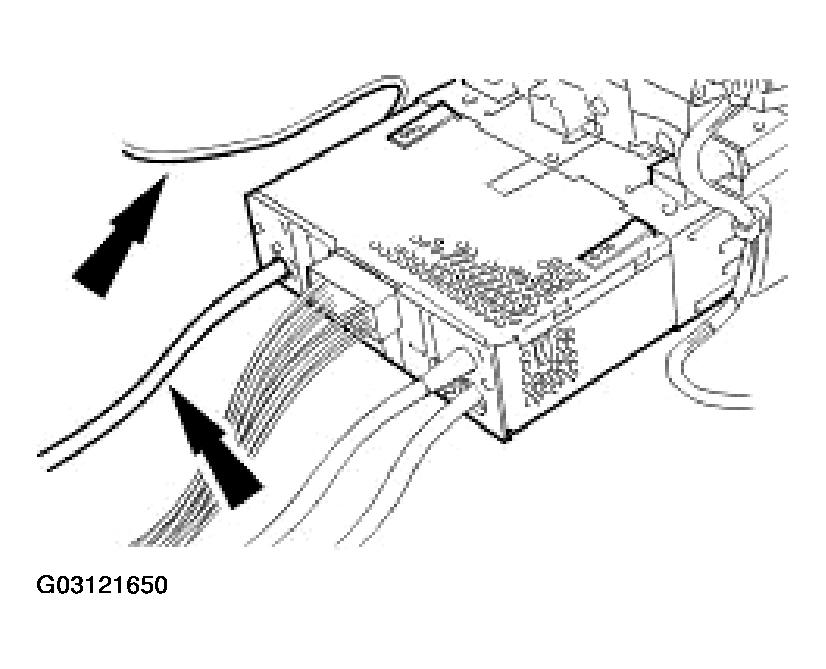

  Fig 2: Disconnecting Radio Assembly
  Courtesy of JAGUAR CARS, INC.
Remove radio.
- Withdraw radio console, remove radio from console and remove radio retaining plate.

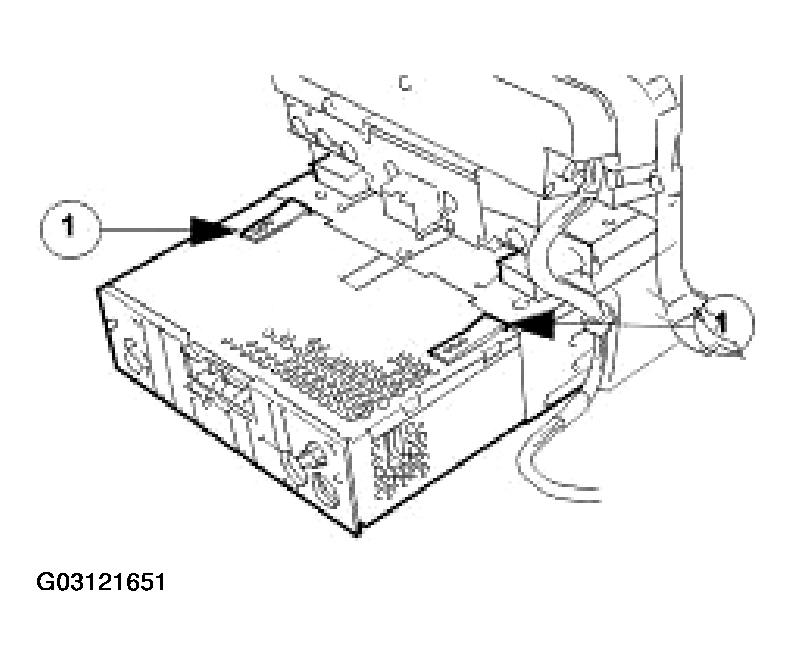

  Fig 3: Removing Radio Retaining Plate
  Courtesy of JAGUAR CARS, INC.
Remove air conditioning control module.
- Slacken and remove the three air conditioning control module securing screws and remove the module.

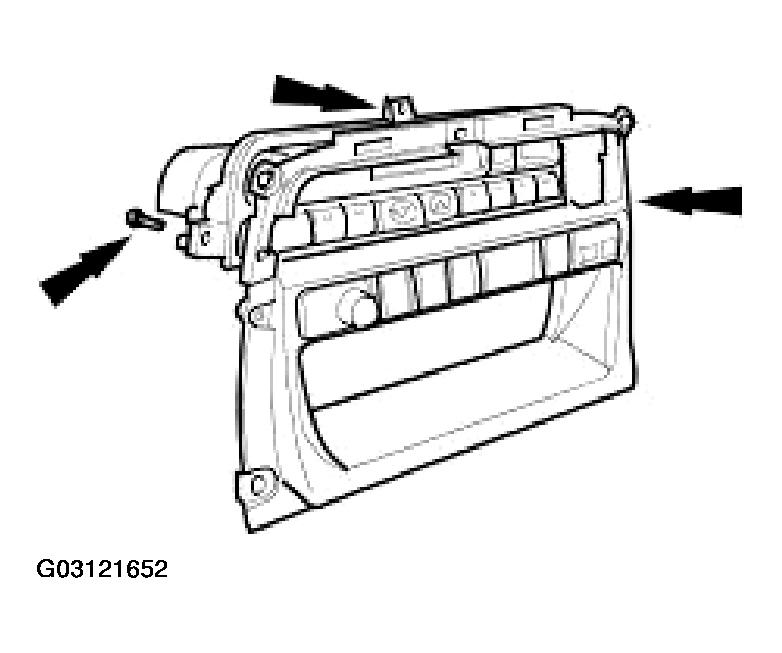

  Fig 4: Removing Air Conditioning Control Module
  Courtesy of JAGUAR CARS, INC.
Remove center console switch module.
- Releasing end locators, lightly press switch module out of console.

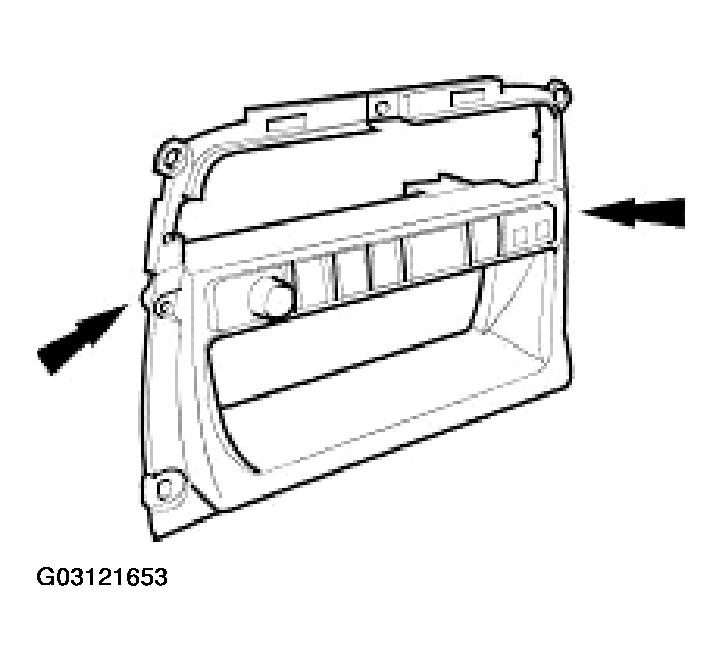

  Fig 5: Removing Center Console Switch Module
  Courtesy of JAGUAR CARS, INC.
Remove radio console from vehicle.
