Roof Console

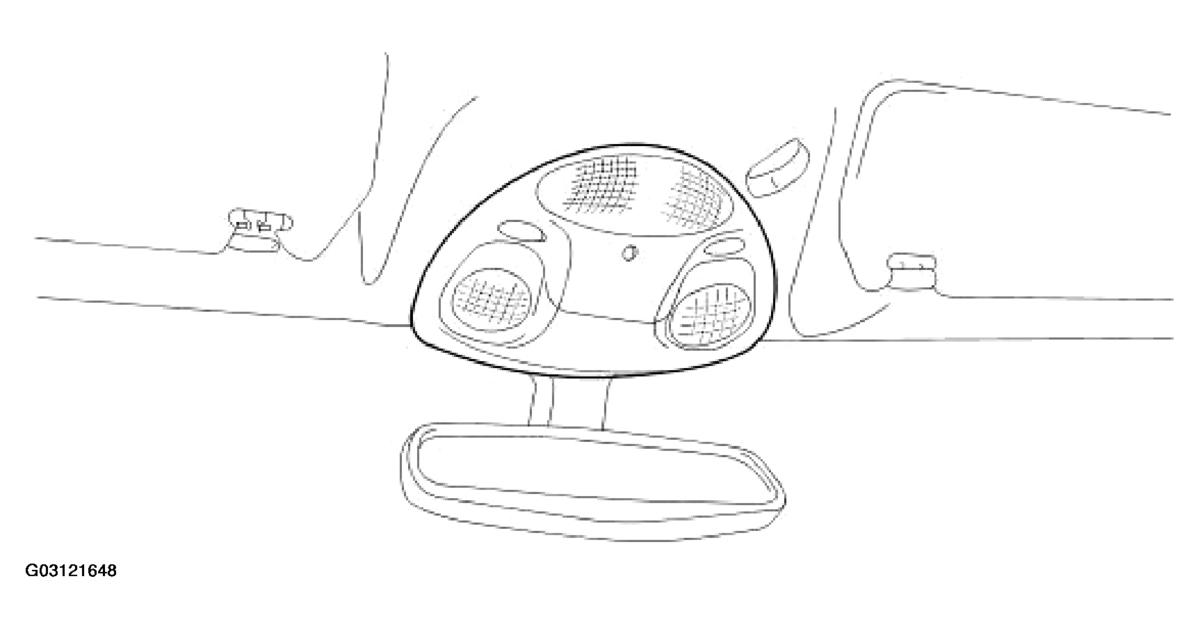

Fig 1: Identifying Roof Console

Courtesy of JAGUAR CARS, INC.

The roof console installed centrally at the front of the roof is common to both models and incorporates two courtesy lamps, switchable map/reading lights, a glass breakage sensor and two occupancy sensors. The occupancy sensors monitor the passenger position only, therefore the roof console is a handed assembly.
