Brake Pedal and Bracket: Installation

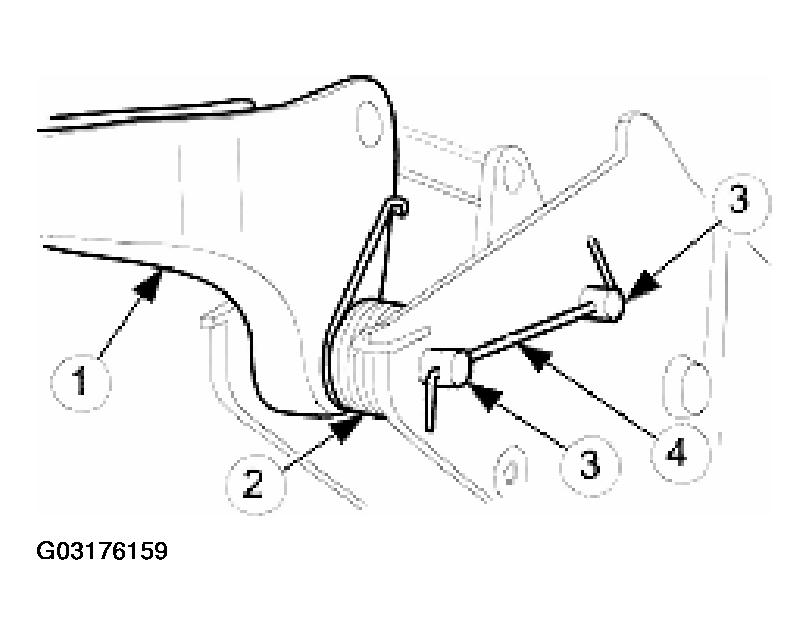

- Apply grease to pivot pins.
- Install throttle pedal assembly.
- Align throttle assembly.
- Align return spring.
- Install pivot pins.
- Install retaining wire: bend ends of wire to secure pivot pins.
Courtesy of JAGUAR CARS, INC.

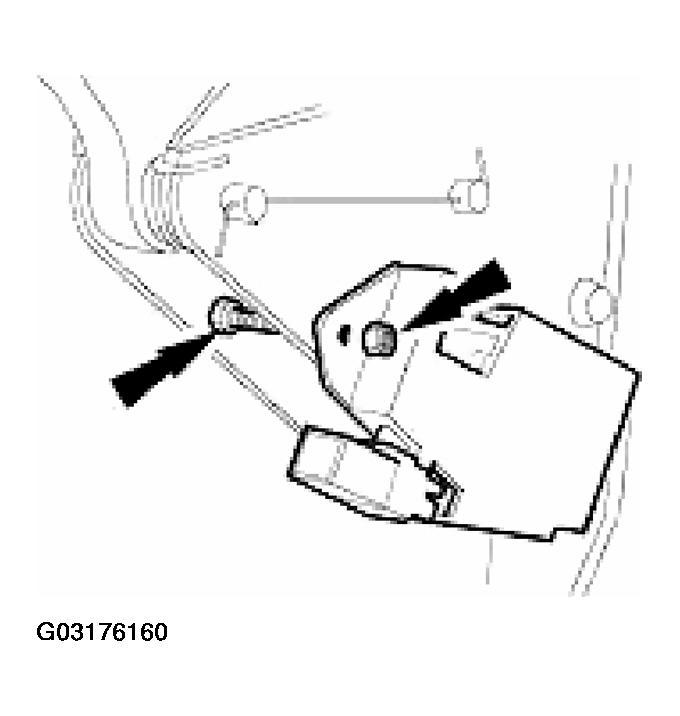

- Install brake warning-light switch.
- Install switch onto locating tag.
- Install and tighten nut and bolt to 3Nm.
Courtesy of JAGUAR CARS, INC.
- Install brake booster and master cylinder assembly. Refer to BRAKE BOOSTER AND BRAKE MASTER CYLINDER
.
- Install pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER
.
.
- Bleed brake system. Refer to BLEEDING BRAKE SYSTEM
.
- Install engine compartment rear cover.
- Connect battery ground cable. (IMPORTANT, see BATTERY GROUND CABLE
for further information).
