Brake Master Cylinder: Installation

Install seals into master cylinder.
- Remove plugs.
- Lubricate seals with clean brake fluid.
- Install seals.

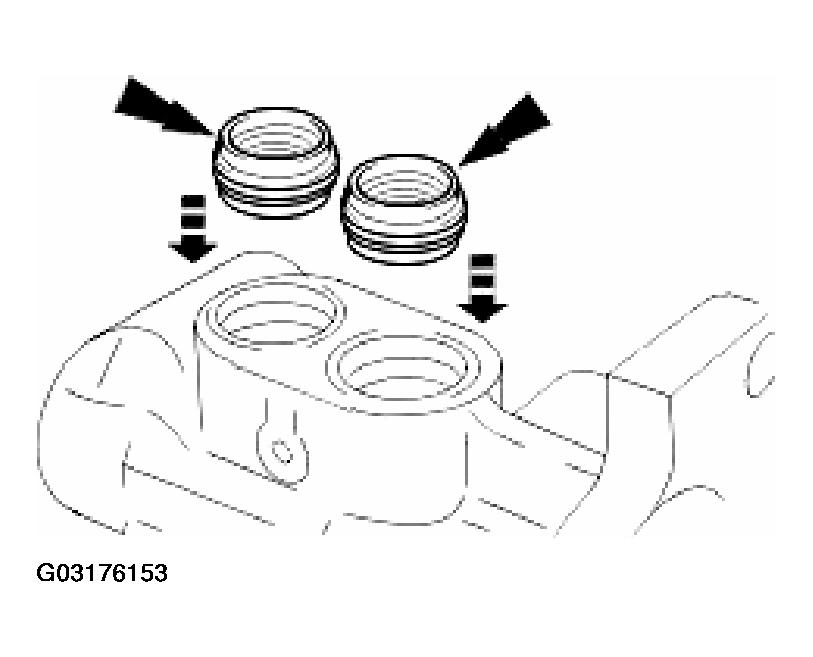

  Fig 1: Installing Seals Into Master Cylinder
  Courtesy of JAGUAR CARS, INC.
Install fluid reservoir to master cylinder.
- Remove plugs from reservoir
- Install reservoir, making sure reservoir is fully seated.
- Install locating pin.

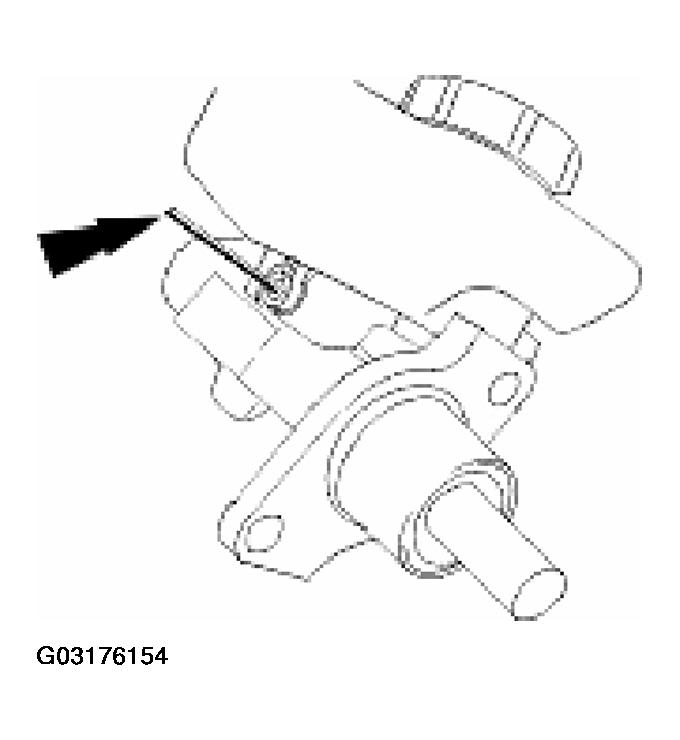

  Fig 2: Installing Fluid Reservoir To Master Cylinder
  Courtesy of JAGUAR CARS, INC.
Install master cylinder to brake booster.
- Install seal.
- Install master cylinder, make sure master cylinder rod locates brake booster rod.

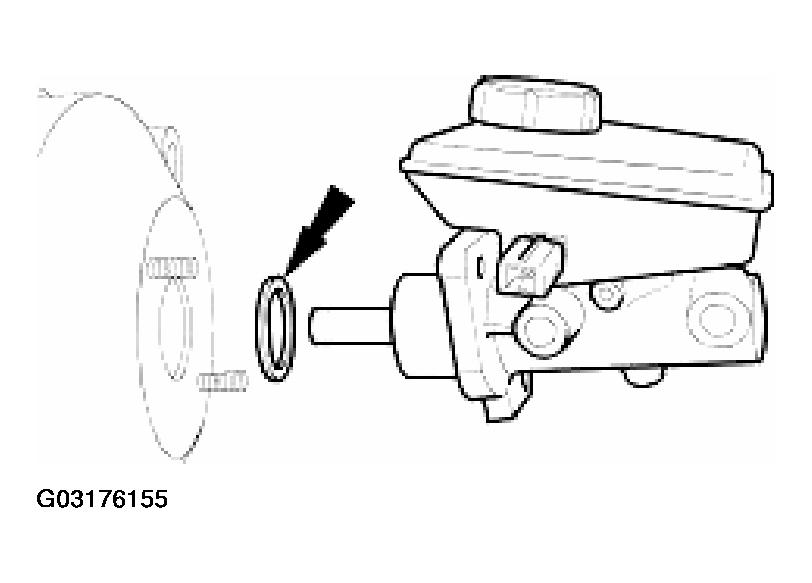

  Fig 3: Installing Master Cylinder To Brake Booster
  Courtesy of JAGUAR CARS, INC.
Install and tighten nuts to 21-29 Nm.

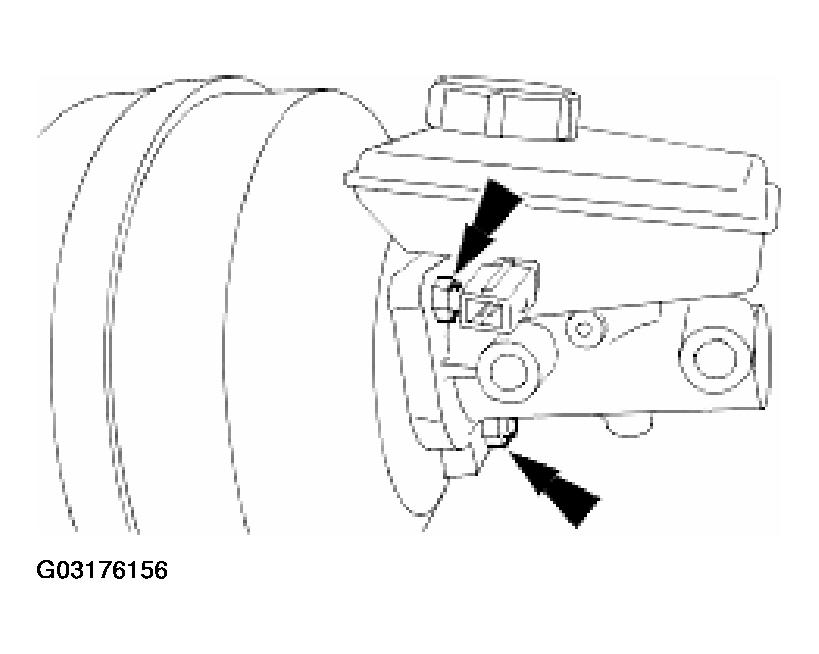

Fig 4: Installing And Tightening Nuts
Courtesy of JAGUAR CARS, INC.
Install pedal housing, brake booster and master cylinder assembly. Refer to BRAKE PEDAL AND BRACKET, BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
Install engine compartment rear cover.
Connect battery ground cable. (IMPORTANT, see BATTERY GROUND CABLE for further information).
Bleed brake system. Refer to BLEEDING BRAKE SYSTEM .
Remove paint-work protection covers and close engine compartment.
