Instrument Panel Dimmer Switch: Removal

  1. Move driver seat fully rearward.
  2. Disconnect battery ground lead; refer to BATTERY GROUND CABLE .
  3. Displace lower cowl for access; refer to STEERING COLUMN LOWER SHROUD .
  4. Remove rheostat switch from cowl.
    1. Disconnect dimmer module to rheostat switch connector.
    2. Disconnect column tilt switch connector.
    3. Remove lower cowl.
    4. Pull adjusting knob from switch.
    5. Remove screw.
    6. Remove switch.

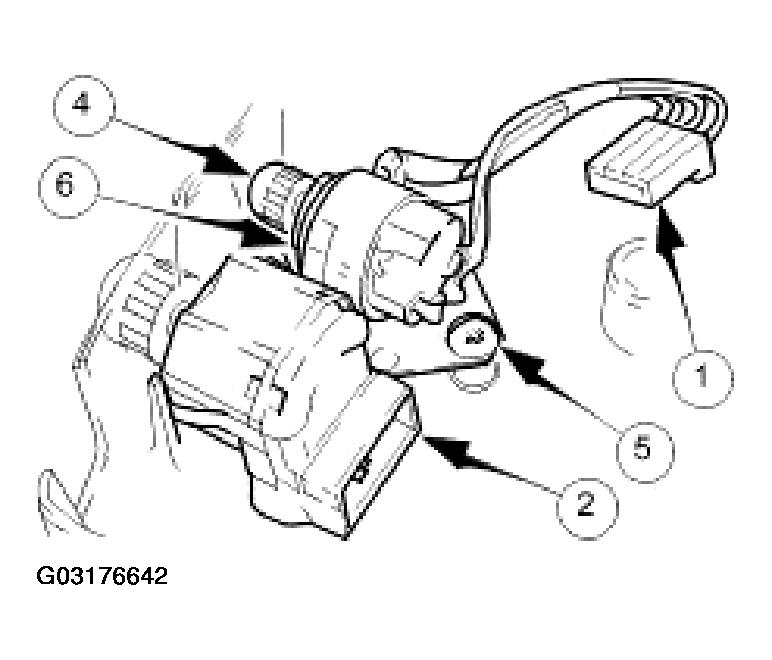

      Fig 1: Removing Rheostat Switch From Cowl
      G03176642Courtesy of JAGUAR CARS, INC.
