Parking Brake Warning Indicator Switch: Removal

  1. Remove driver seat for access. Refer to FRONT SEAT .
  2. Raise hand lever fully.
  3. Remove trim from hand lever. Refer to operation PARKING BRAKE CONTROL SHROUD  .
  4. Remove screws securing switch to hand lever.

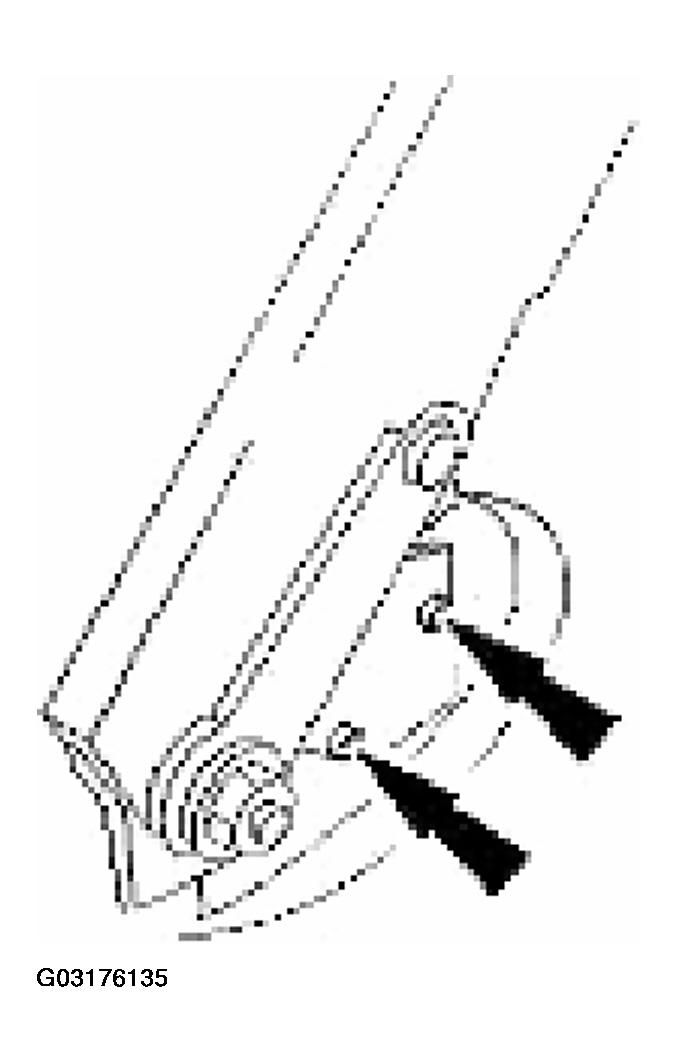

    Fig 1: Removing Screws Securing Switch To Hand Lever
    G03176135Courtesy of JAGUAR CARS, INC.
  5. Disconnect electrical connector from switch.

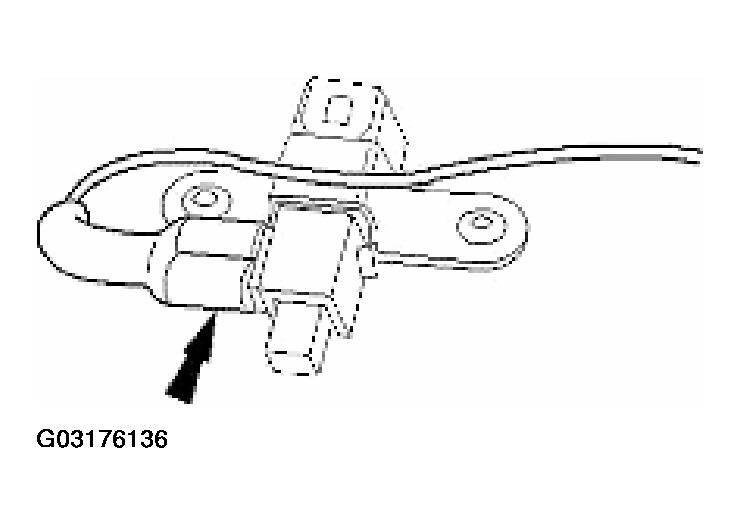

    Fig 2: Disconnecting Electrical Connector From Switch
    G03176136Courtesy of JAGUAR CARS, INC.
