Parking Brake Warning Indicator Switch: Installation

Disconnect electrical connector from switch.

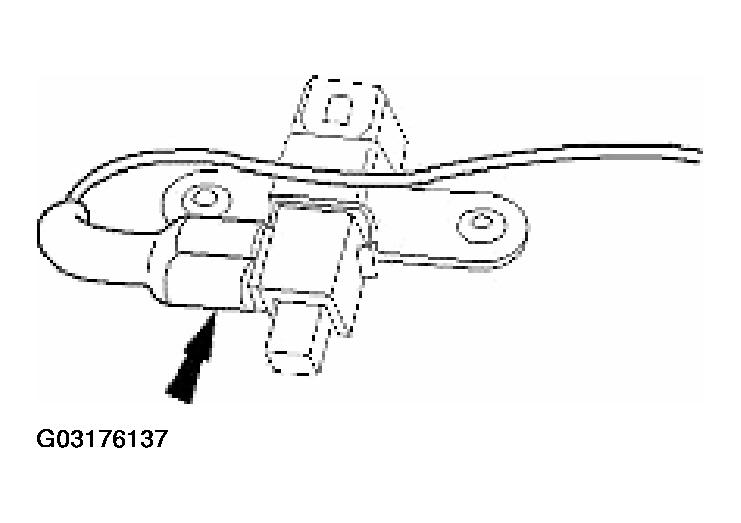

Fig 1: Disconnecting Electrical Connector From Switch
Courtesy of JAGUAR CARS, INC.
Install switch to hand lever.
- Install and tighten screws to 3 Nm.

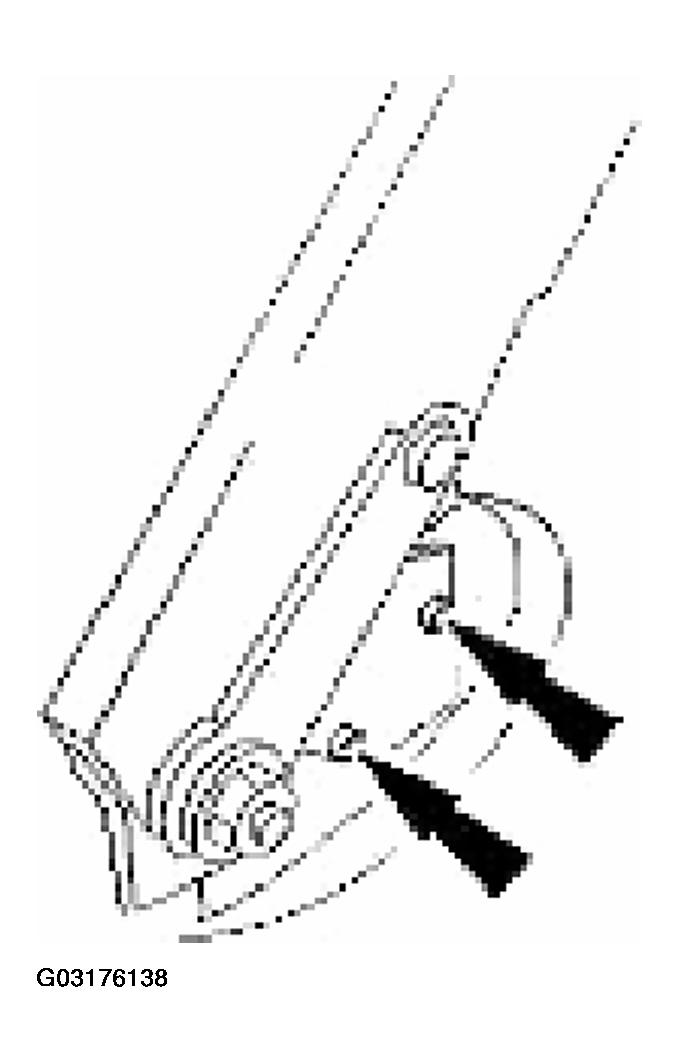

  Fig 2: Installing Switch To Hand Lever
  Courtesy of JAGUAR CARS, INC.
Install trim to hand lever. Refer to PARKING BRAKE CONTROL SHROUD .
Lower hand lever, checking for freedom of movement.
Fit driver seat. Refer to FRONT SEAT .
