Steering Column Upper Shroud: Removal

  1. Move driver seat fully rearward.
  2. Slacken and remove screws securing upper cowl to lower cowl and separate the two cowls.

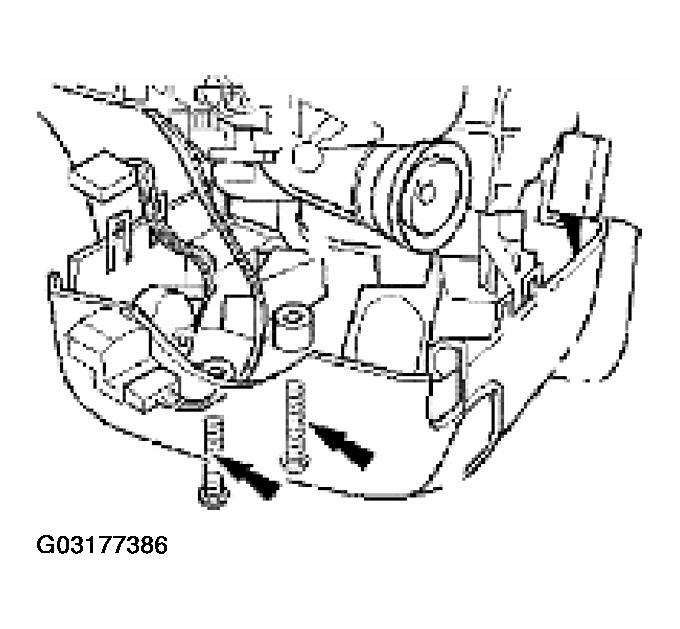

    Fig 1: Removing Screws And Separating Upper Cowl From Lower Cowl
    G03177386Courtesy of JAGUAR CARS, INC.
  3. Move steering column to fully down position.
  4. Remove upper cowl from steering column.
