Steering Column Lower Shroud: Removal

Move driver seat fully rearward.
Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Remove cowl from steering column.
- Remove key from ignition switch. (1)
- Slacken and remove cowl securing screws. (2)
- Separate lower cowl from upper cowl (four tabs) and move lower cowl forward to access multiplugs. (3)
- Disconnect rheostat harness multiplug. (4)
- Disconnect tilt column harness multiplug. (5)

  Fig 1: Removing Cowl From Steering Column
  Courtesy of JAGUAR CARS, INC.
Remove rheostat and column adjustment switch from cowl.
- Remove adjusting knob from rheostat. (1)
- Slacken and remove rheostat securing screw. (2)
- Release column adjustment switch retaining tangs and remove switch from cowl. (3)

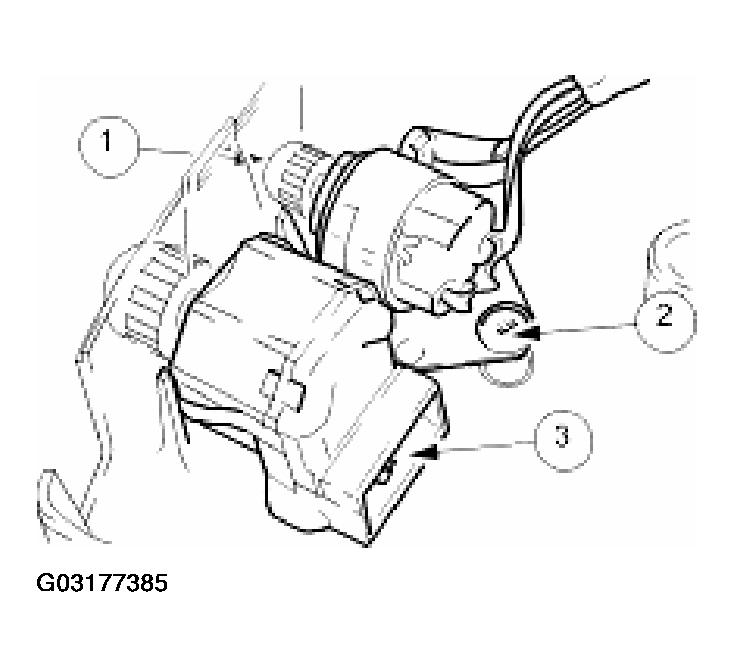

  Fig 2: Removing Rheostat And Column Adjustment Switch From Cowl
  Courtesy of JAGUAR CARS, INC.
