Rear Cup Holder: Removal

Remove the console glove box lid. Refer to FLOOR CONSOLE STOWAGE COMPARTMENT LID .
Slacken and remove the ten inner lid securing screws. and remove the inner lid.

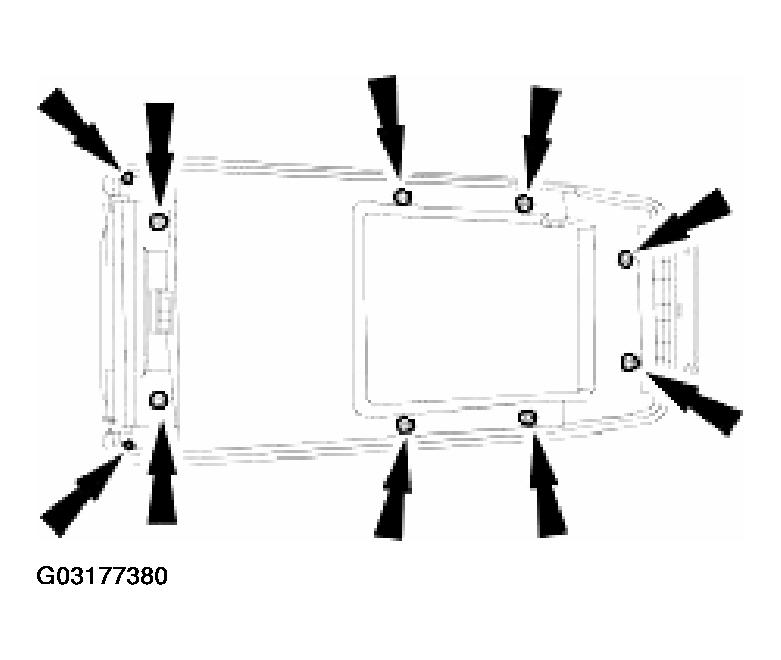

Fig 1: Removing Inner Lid
Courtesy of JAGUAR CARS, INC.
Slacken and remove cupholder latch securing screw and remove latch assembly.

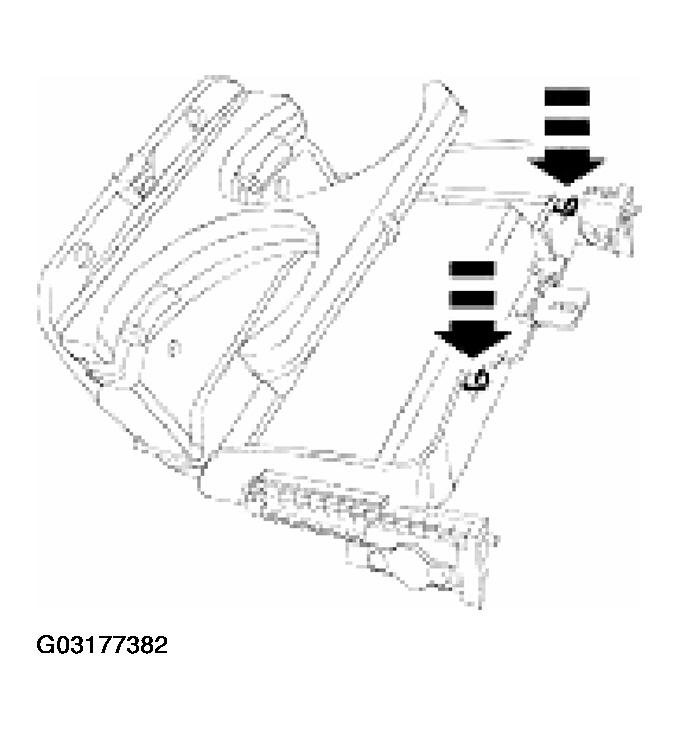

Fig 2: Removing Cupholder Latch Assembly
Courtesy of JAGUAR CARS, INC.
Open cupholder, depress tang each side of latch location and withdraw cupholder assembly from base.

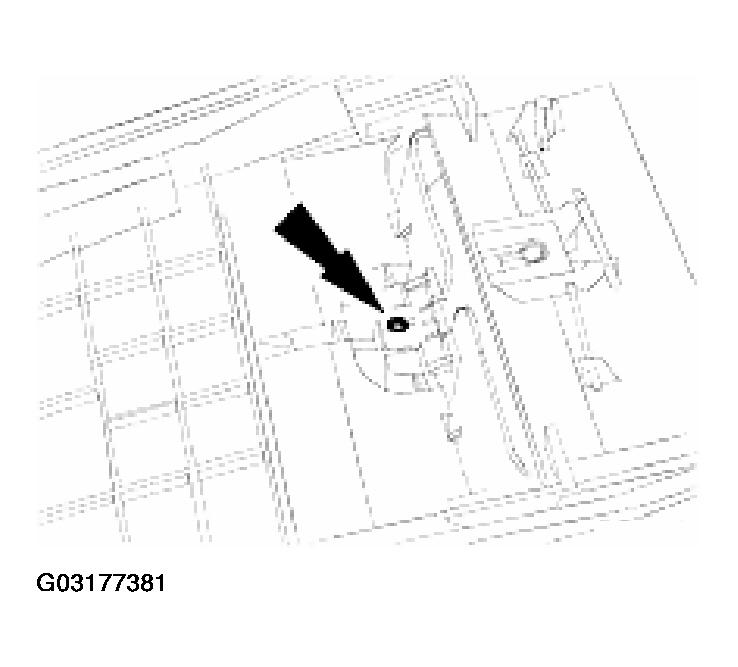

Fig 3: Withdrawing Cupholder Assembly
Courtesy of JAGUAR CARS, INC.

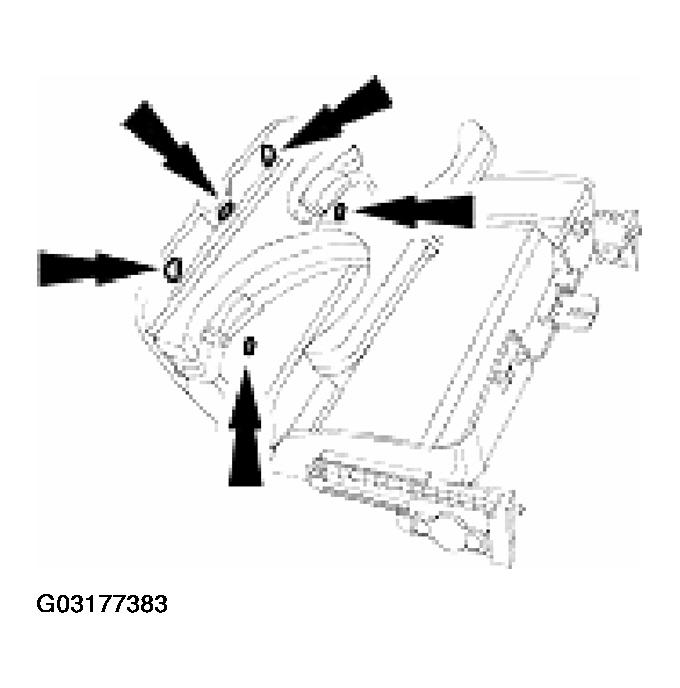

Slacken and remove the cupholder trim panel securing screws.
