Overhead Console: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .

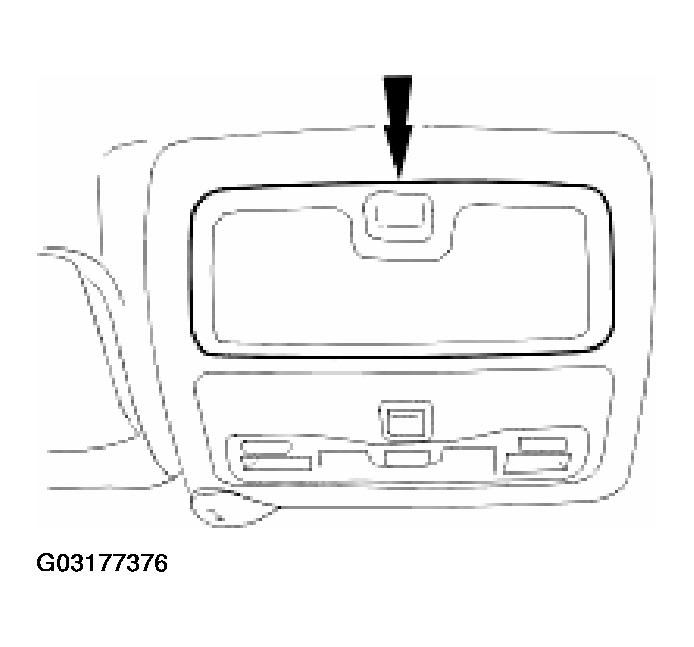

Open roof console sun glasses compartment.

Fig 1: Opening Roof Console Sun Glasses Compartment
Courtesy of JAGUAR CARS, INC.

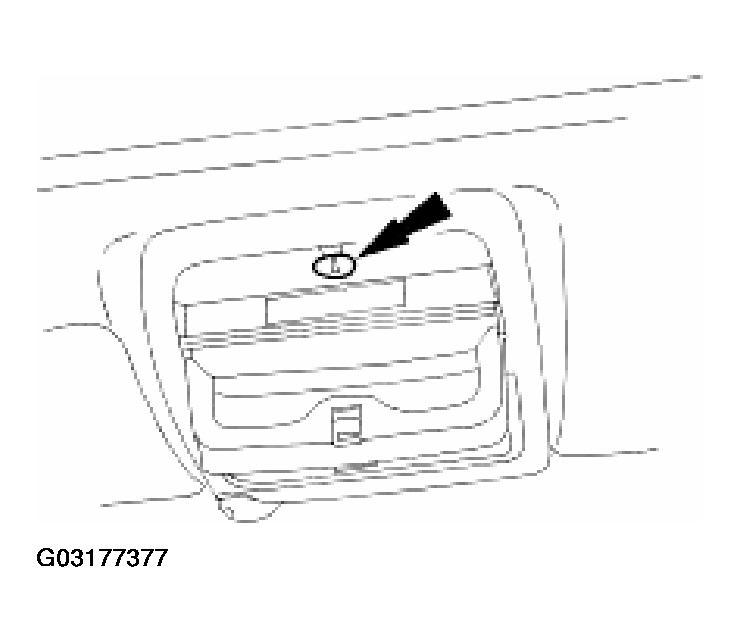

Rotate fastener 1/4 turn to release console.

Fig 2: Rotating Fastener To Release Console
Courtesy of JAGUAR CARS, INC.

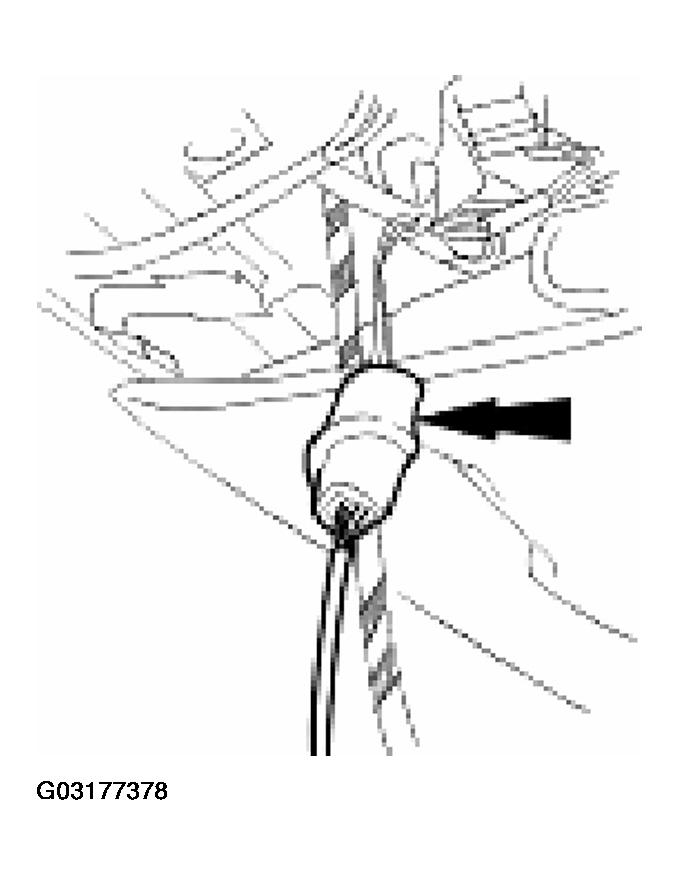

Lower console from roof and disconnect lighting module harness multiplug and hands-free microphone harness multiplug if telephone is fitted.

Fig 3: Disconnecting Lighting Module Harness Multiplug And Hands-Free Microphone Harness Multiplug
Courtesy of JAGUAR CARS, INC.

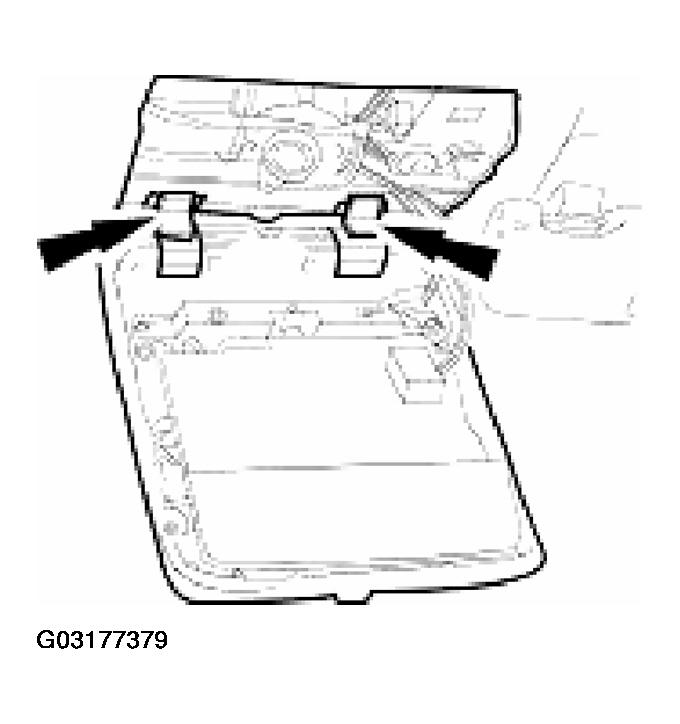

Release roof console from retaining clips and remove from vehicle.

Fig 4: Releasing Roof Console From Retaining Clips
Courtesy of JAGUAR CARS, INC.
