Instrument Panel: Installation

  1. Route harness in fascia as previously noted.
  2. Install all harness to fascia retaining clips.
  3. Install solar sensor harness multiplug on LH retaining bracket.
  4. Pass solar sensor harness multiplug through fascia aperture. Install solar sensor harness grommet.

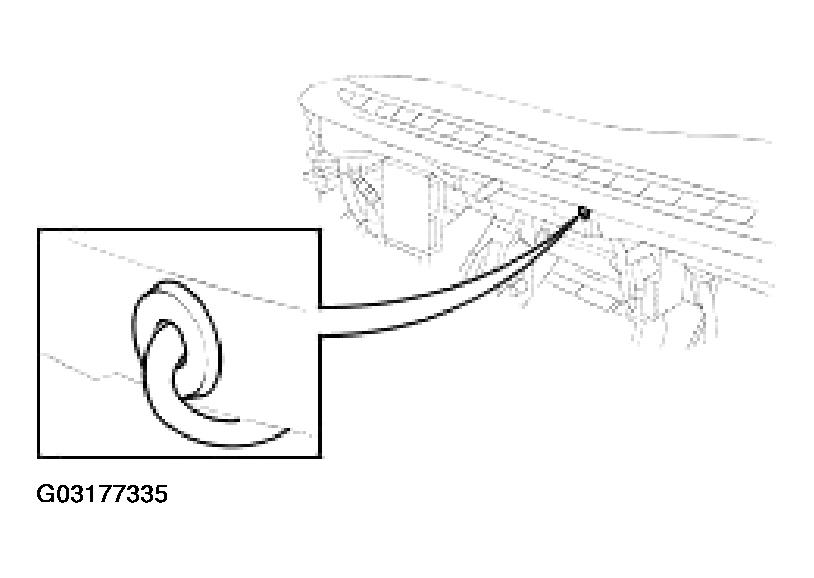

    Fig 1: Installing Solar Sensor Harness Grommet
    G03177335Courtesy of JAGUAR CARS, INC.

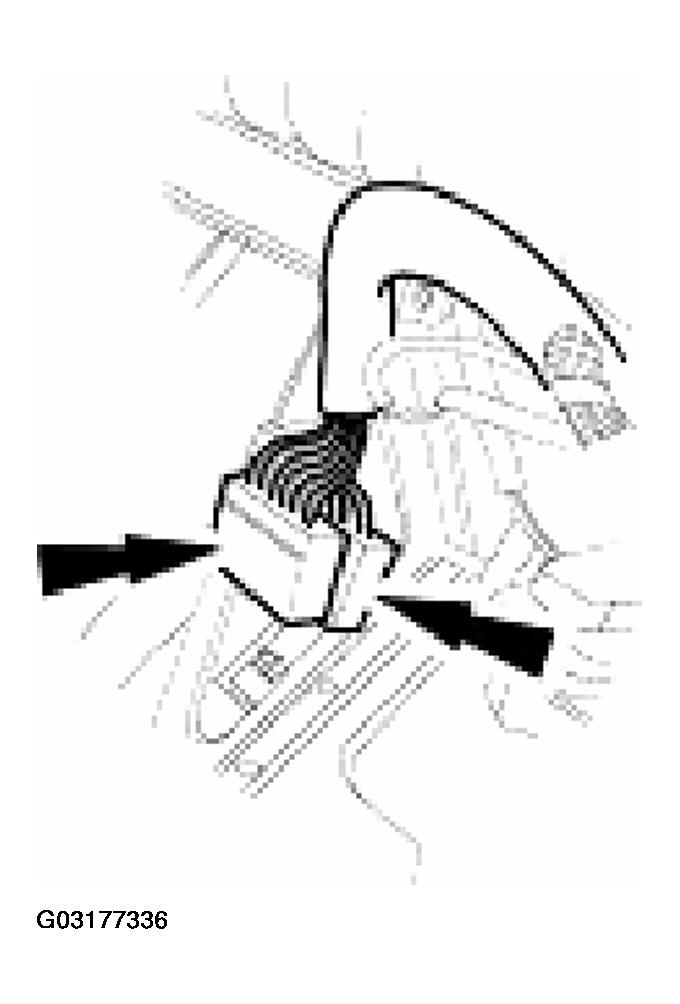

  5. Install fascia harness multiplugs to RH retaining brackets and install harness securing nuts.
    Fig 2: Installing Fascia Harness Multiplugs To RH Retaining Brackets And Harness Securing Nuts
    G03177336Courtesy of JAGUAR CARS, INC.
  6. Install aspirator motor assembly in fascia, routing hose through aperture, and install securing screws.

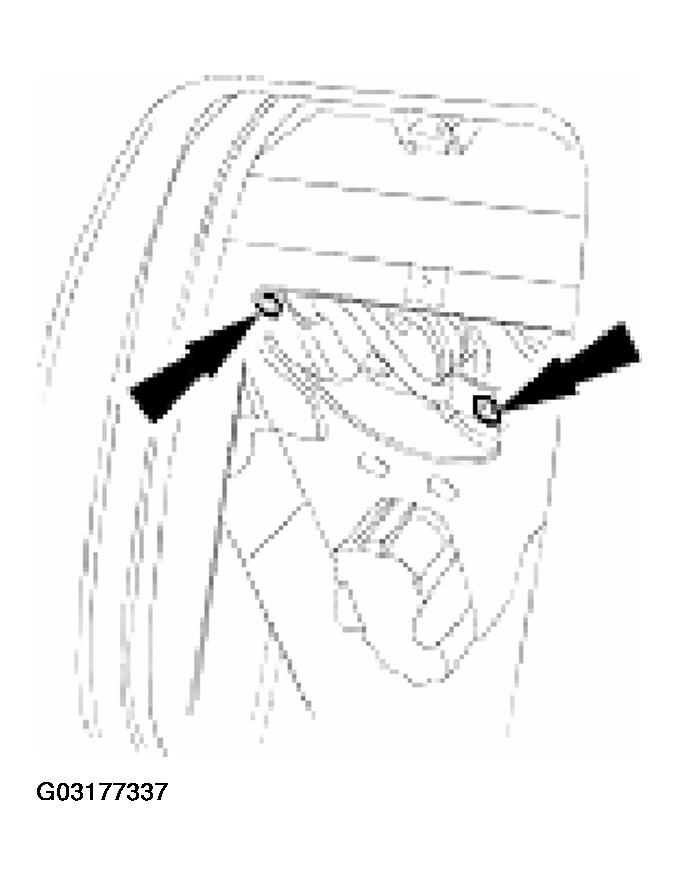

    Fig 3: Installing Aspirator Motor Assembly In Fascia
    G03177337Courtesy of JAGUAR CARS, INC.
  7. Connect aspirator harness multiplug to fascia harness.

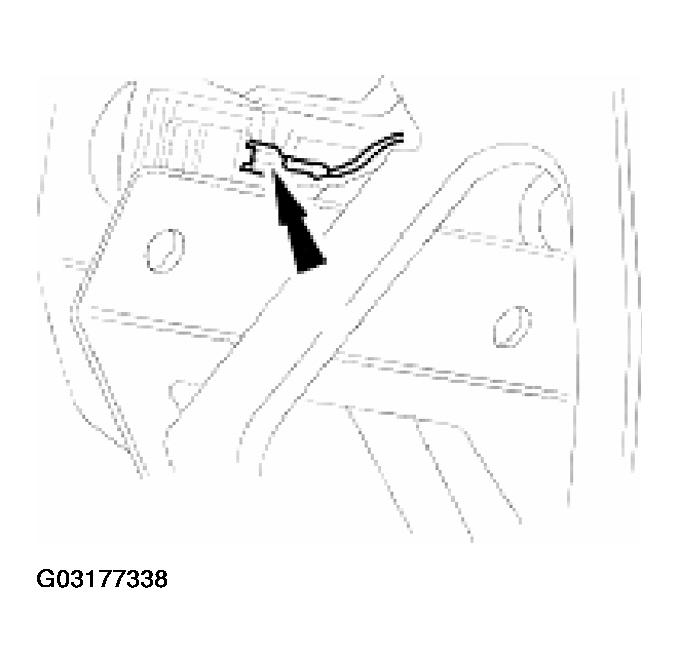

    Fig 4: Connecting Aspirator Harness Multiplug To Fascia Harness
    G03177338Courtesy of JAGUAR CARS, INC.

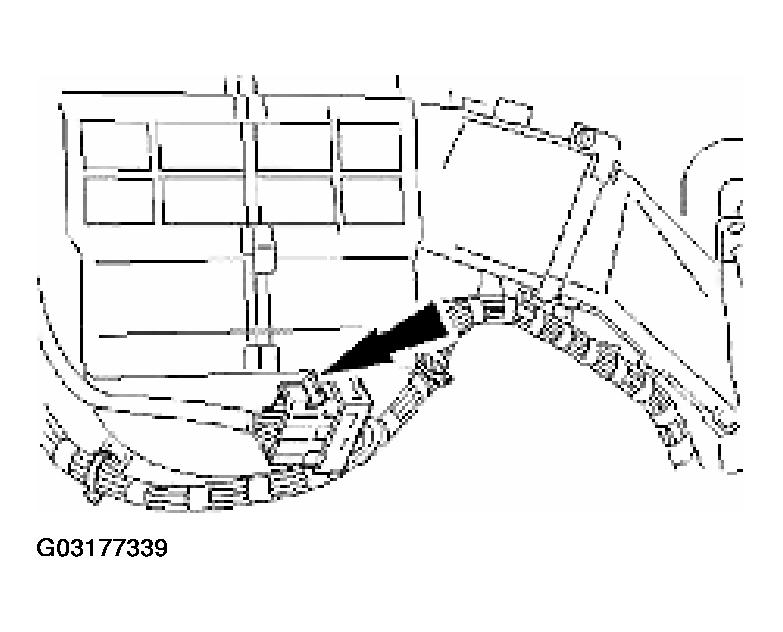

  8. Position air distribution box in fascia and connect multiplug to fascia harness.
    Fig 5: Positioning Air Distribution Box In Fascia And Connecting Multiplug To Fascia Harness
    G03177339Courtesy of JAGUAR CARS, INC.
  9. Fully seat air distribution box and install securing nuts.

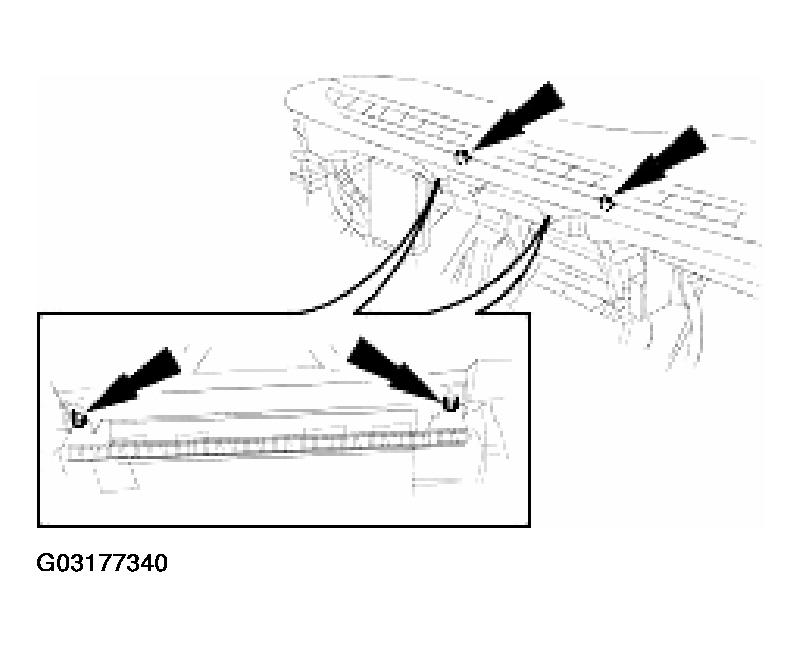

    Fig 6: Fully Seating Air Distribution Box And Installing Securing Nuts
    G03177340Courtesy of JAGUAR CARS, INC.
  10. Install LH and RH air distribution box/fascia side vent ducts and install securing screws.
    Fig 7: Installing LH And RH Air Distribution Box/Fascia Side Vent Ducts
    G03177341Courtesy of JAGUAR CARS, INC.
  11. Install LH and RH top vents on fascia.
  12. Install all defrost vent retaining clips to fascia.
  13. Install LH and RH windshield defrost vents to fascia

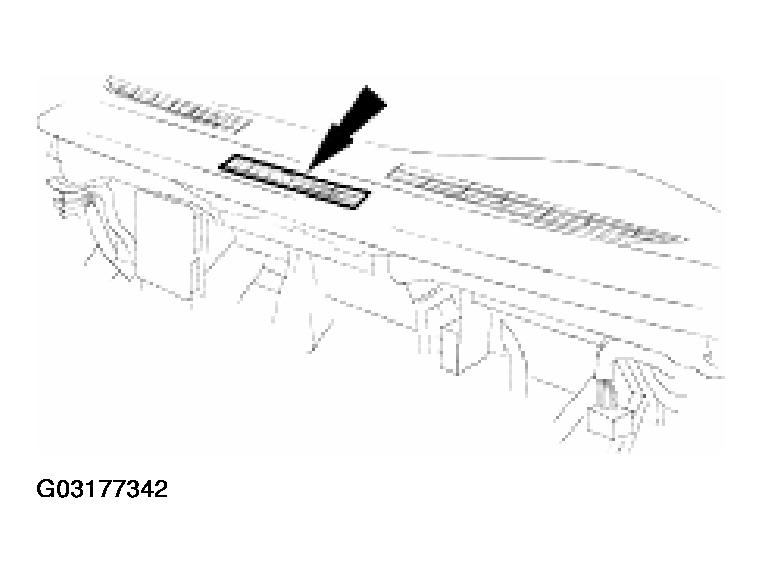

  14. Position center defrost vent/solar sensor assembly, connect sensor harness multiplug to fascia harness, install multiplug on retaining clip and fully seat assembly in fascia.
    Fig 8: Installing Center Defrost Vent/Solar Sensor Assembly
    G03177342Courtesy of JAGUAR CARS, INC.
  15. Reposition fascia right way up on bench.
  16. Position face level air ducts in fascia and install securing screws.

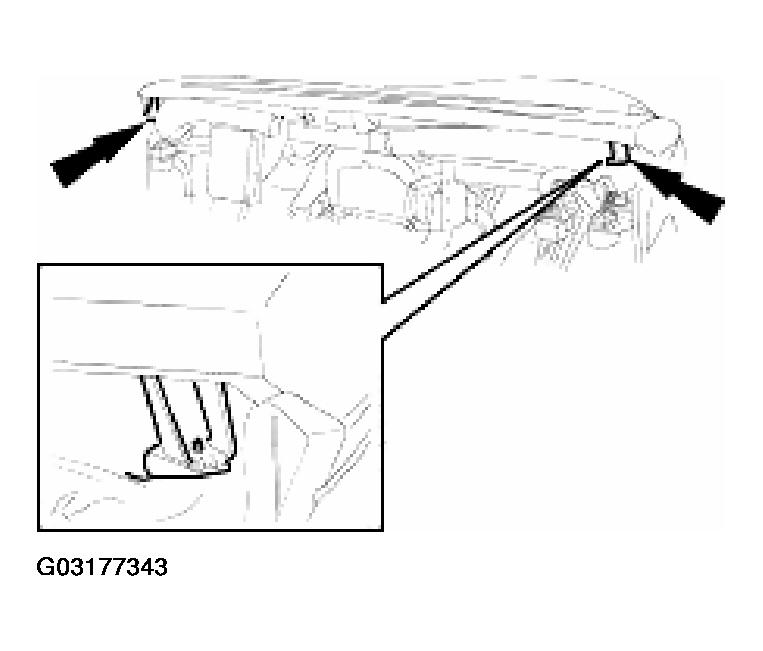

    Fig 9: Positioning Face Level Air Ducts In Fascia And Installing Securing Screws
    G03177343Courtesy of JAGUAR CARS, INC.
  17. Install center vent/clock assembly.
    • Install new center vent retaining screw inserts in fascia.
    • Position center vent/clock assembly at fascia and connect clock harness multiplug to fascia harness.

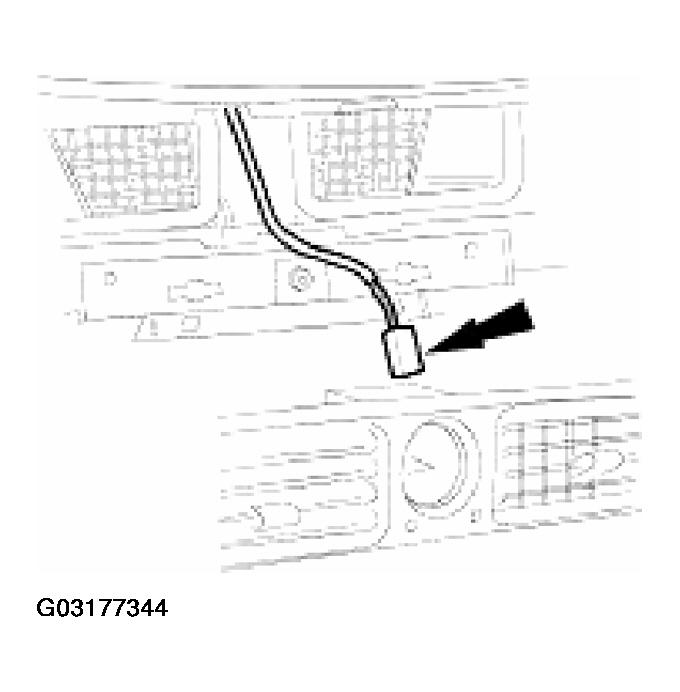

      Fig 10: Installing Center Vent/Clock Assembly
      G03177344Courtesy of JAGUAR CARS, INC.
  18. Position center vent/clock assembly in fascia and install securing screws.

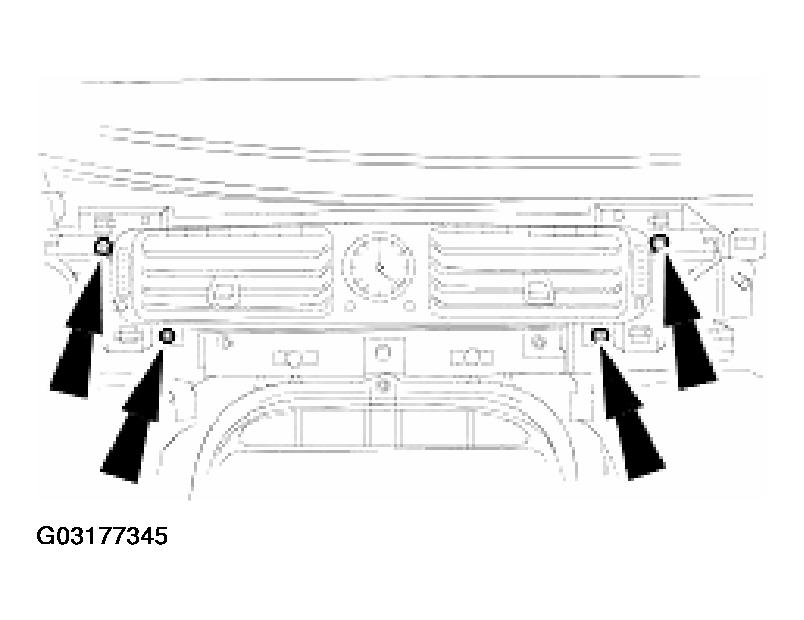

    Fig 11: Securing Center Vent/Clock Assembly In Fascia
    G03177345Courtesy of JAGUAR CARS, INC.
  19. Install RH side vent/duct assembly.
    • Install new RH side vent/duct retaining screw inserts in fascia.
    • Position RH side vent in fascia and install securing screws.

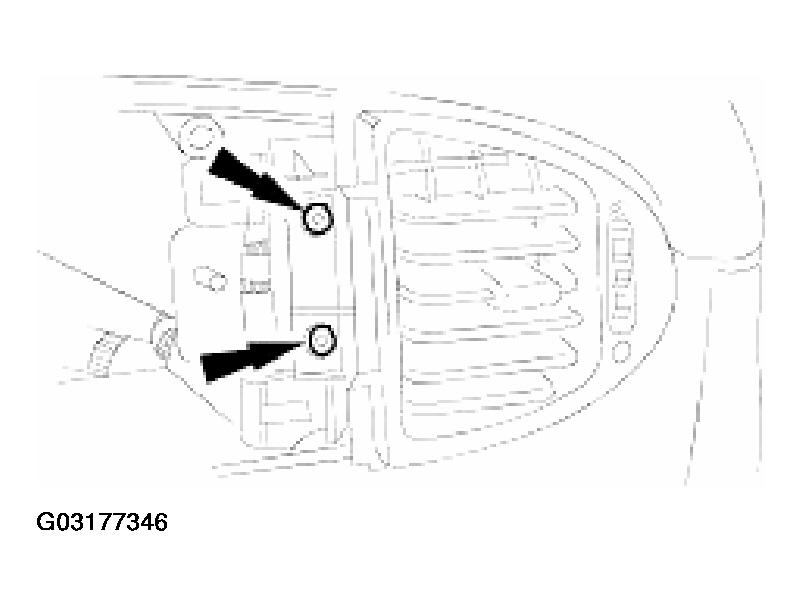

      Fig 12: Installing RH Side Vent/Duct Assembly
      G03177346Courtesy of JAGUAR CARS, INC.
  20. Install new LH side vent/duct retaining screw inserts in fascia.
  21. Position LH side vent/duct in fascia and install securing screws.
  22. Position passenger air bag module and deployment door assembly in fascia aperture. and install four new securing nuts.

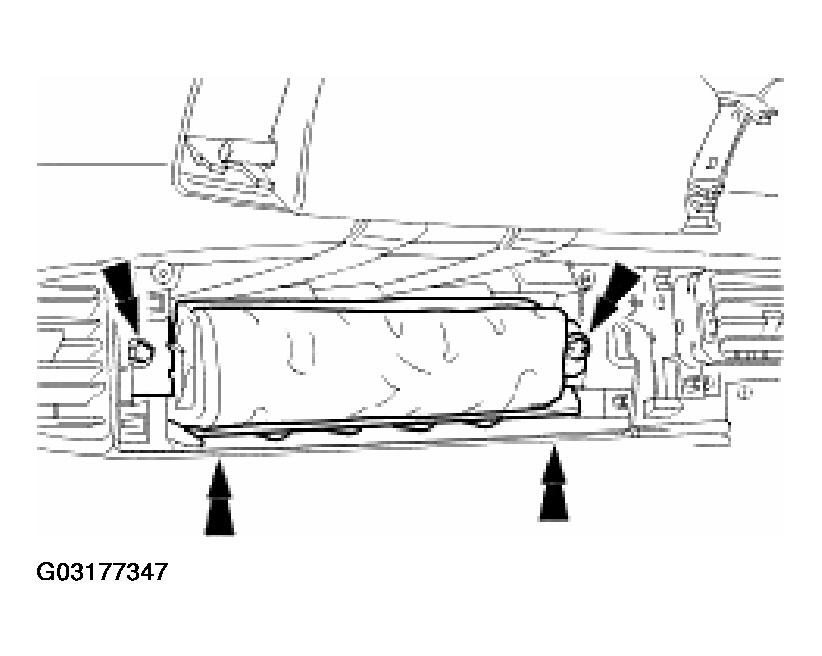

    Fig 13: Installing Passenger Air Bag Module
    G03177347Courtesy of JAGUAR CARS, INC.
    23. WARNING: ENSURE THAT THE AIR BAG AND RETAINING CLIPS ARE FULLY SEATED.
  23. Install deployment door.
    • Install and fully seat deployment door retaining clips in fascia.
    • Install and fully seat deployment door in clips.

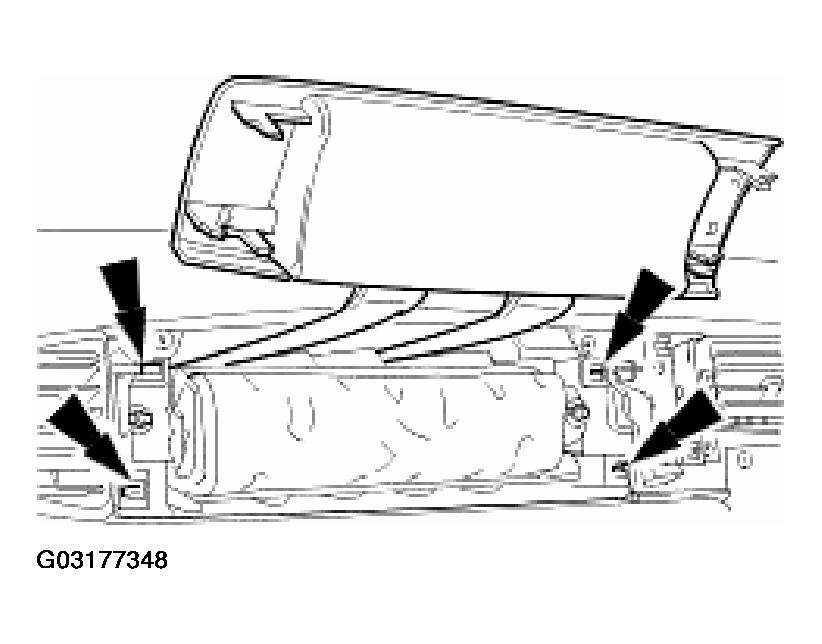

      Fig 14: Installing Deployment Door
      G03177348Courtesy of JAGUAR CARS, INC.
  24. Position trunk release switch/housing at fascia and connect in-car sensor to housing.

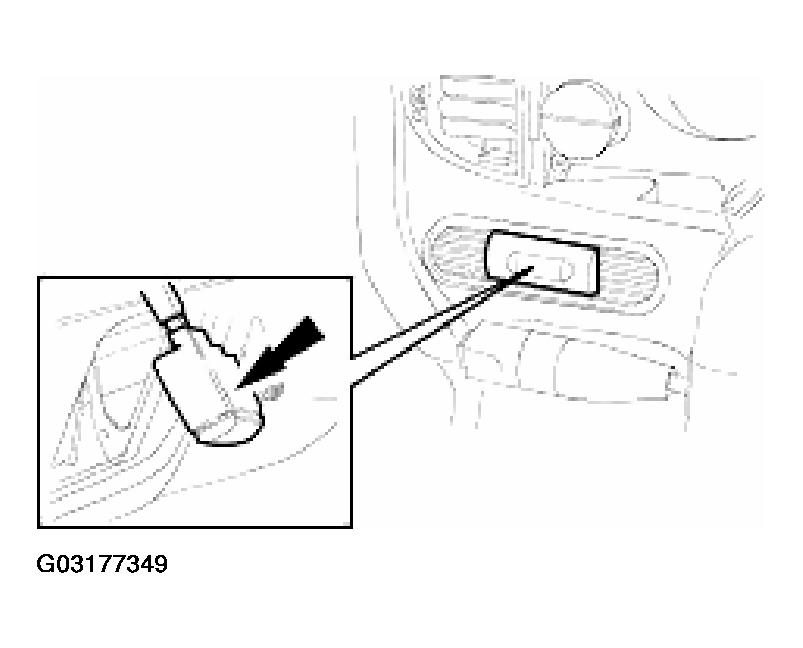

    Fig 15: Installing Trunk Release Switch/Housing
    G03177349Courtesy of JAGUAR CARS, INC.
  25. Connect trunk release switch multiplug to fascia harness and install in-car sensor/trunk release switch assembly to fascia.

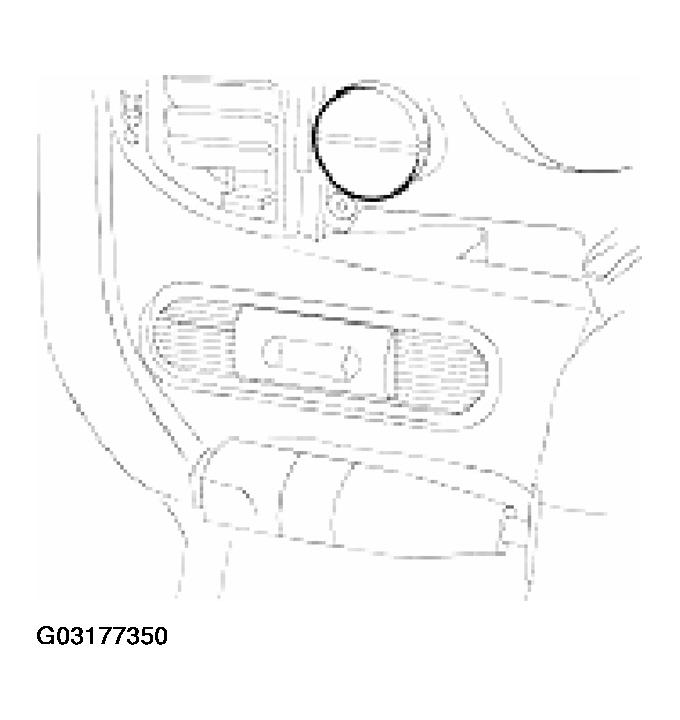

    Fig 16: Connecting/Installing In-Car Sensor/Trunk Release Switch Assembly
    G03177350Courtesy of JAGUAR CARS, INC.
  26. Install new major gauge module retaining screw inserts to fascia.
  27. Install major gauge module in fascia.
  28. Install instrument panel veneer panel. Refer to INSTRUMENT CLUSTER FINISH PANEL  .
  29. Reposition fascia on bench with back facing outwards.
  30. Position body processor module in fascia and install securing nuts.

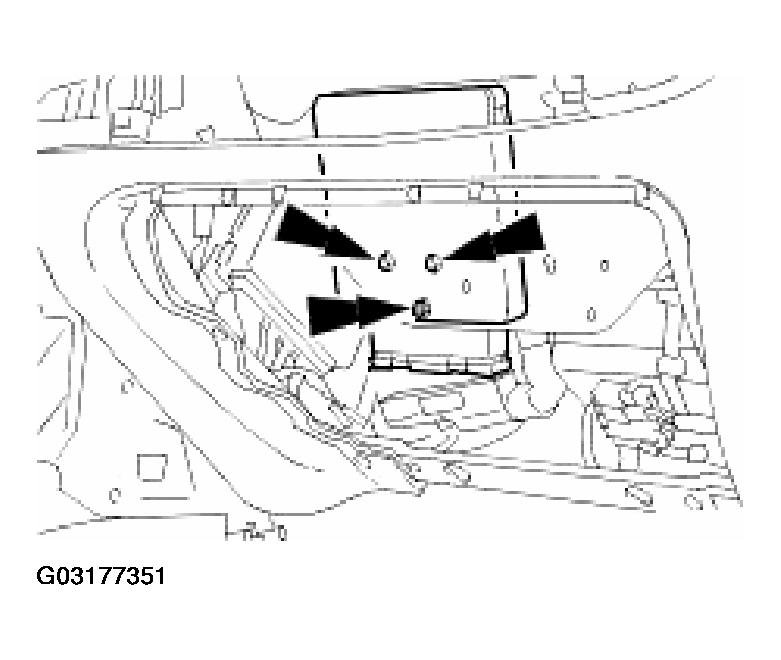

    Fig 17: Positioning Body Processor Module In Fascia
    G03177351Courtesy of JAGUAR CARS, INC.
  31. Connect body processor module harness multiplug to fascia harness and tighten captive securing bolt.

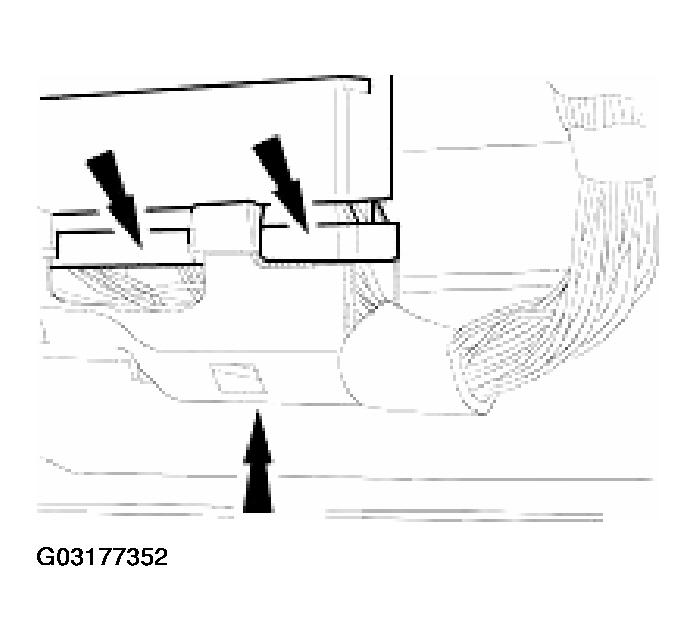

    Fig 18: Connecting Body Processor Module Harness Multiplug To Fascia Harness
    G03177352Courtesy of JAGUAR CARS, INC.
  32. Install illumination control module on fascia mounting.
    • Connect module to fascia harness multiplug. (1)
    • Slide module downward to secure on mounting bracket (2).

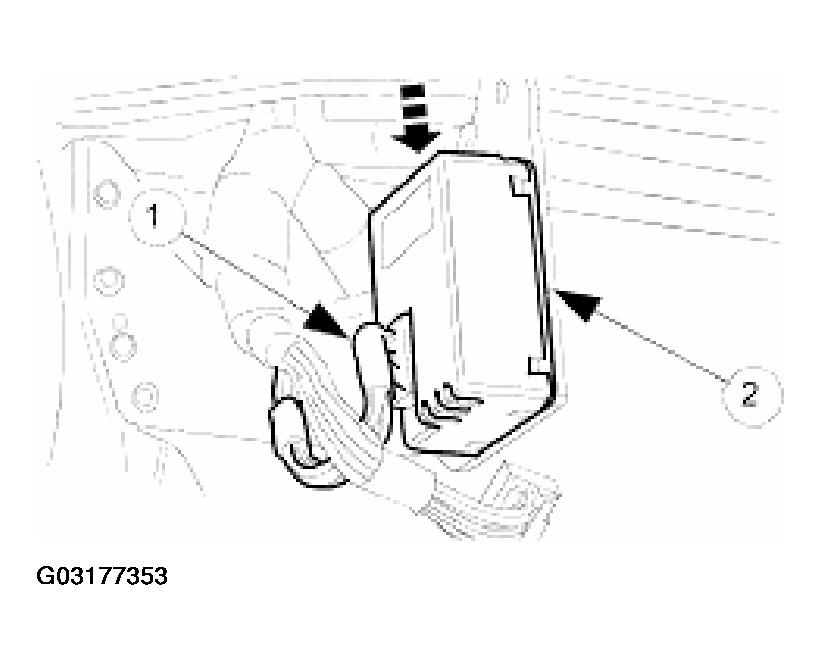

      Fig 19: Installing Illumination Control Module
      G03177353Courtesy of JAGUAR CARS, INC.
  33. Install new key transponder module securing screw plastic inserts to fascia. Position key transponder module in fascia and install securing screws.

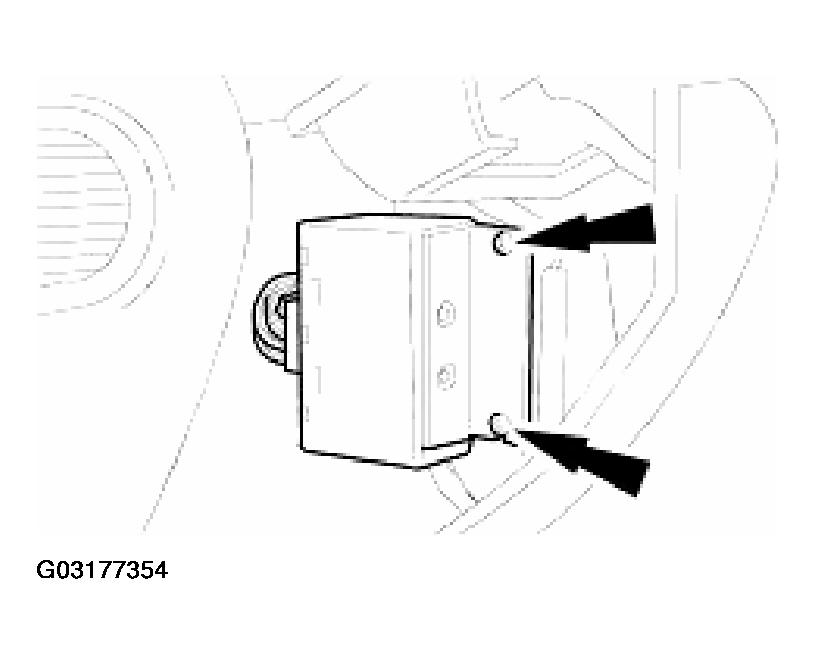

    Fig 20: Installing Key Transponder Module
    G03177354Courtesy of JAGUAR CARS, INC.
  34. Connect key transponder module harness multiplug to fascia harness.

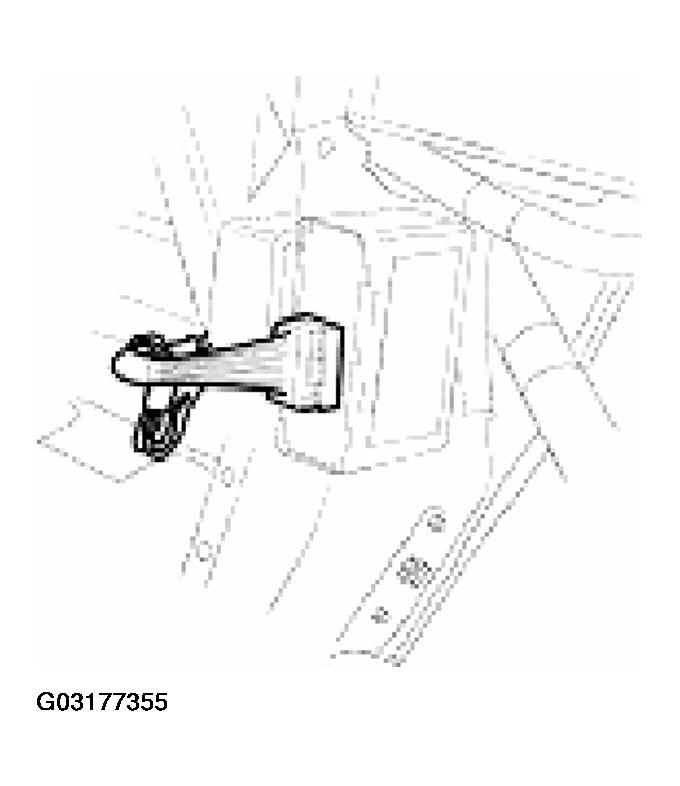

    Fig 21: Connecting Key Transponder Module Harness Multiplug To Fascia Harness
    G03177355Courtesy of JAGUAR CARS, INC.
  35. With assistance, position fascia in vehicle, align side dowels with slots in 'A' post brackets, and center pin with bulkhead aperture, and push fully forward.

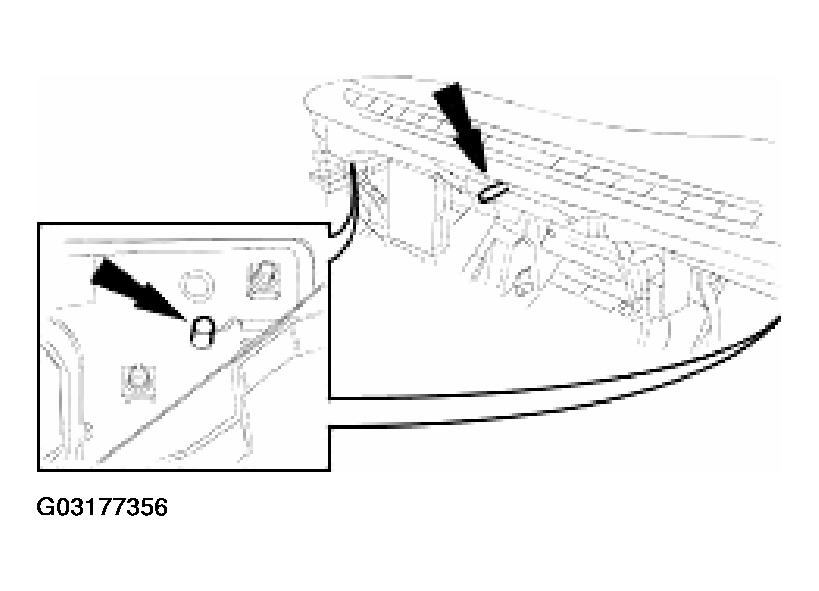

    Fig 22: Aligning Side Dowels With Slots In Post Brackets, And Center Pin With Bulkhead Aperture
    G03177356Courtesy of JAGUAR CARS, INC.
    36. CAUTION: The 'A' post fascia mounting brackets are pre-set to the body and must not under any circumstances be disturbed.
    Fig 23: Installing Bolts Securing Fascia To RH 'A' Post Bracket
    G03177357Courtesy of JAGUAR CARS, INC.
  36. Install bolts securing fascia to RH 'A' post bracket and tighten to 22-28Nm.
  37. Install trim pad on fascia RH end aperture.
  38. Install bolt securing fascia bracket to RH side of tunnel and tighten to 7-1 0Nm.

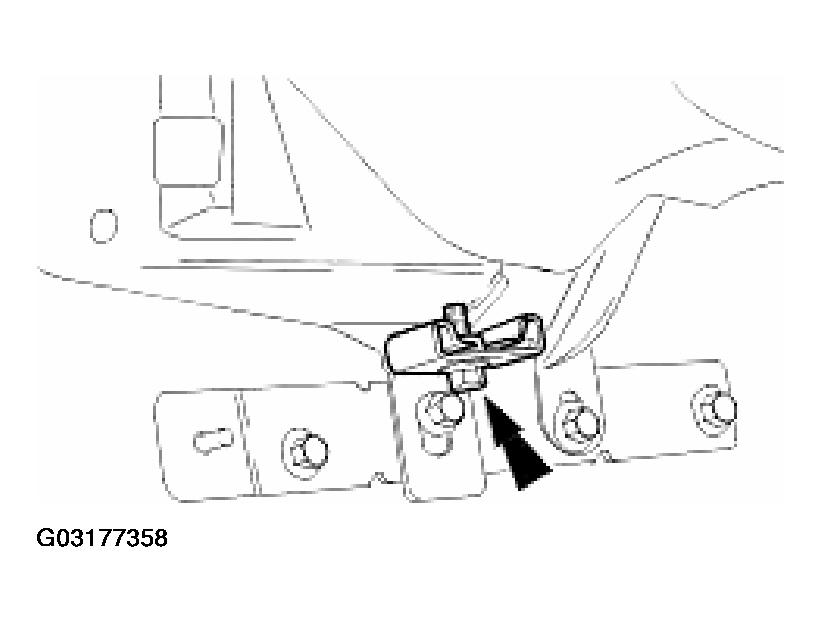

    Fig 24: Installing Bolt Securing Fascia Bracket To RH Side Of Tunnel
    G03177358Courtesy of JAGUAR CARS, INC.
  39. Install fascia center support bracket.
    • Position center bracket on top of tunnel and install but do not tighten securing bolts.
    • Install fascia to center mounting bracket bolts and tighten to 22-28Nm.
    • Finally tighten center mounting bracket to tunnel securing bolts to 22-28Nm.

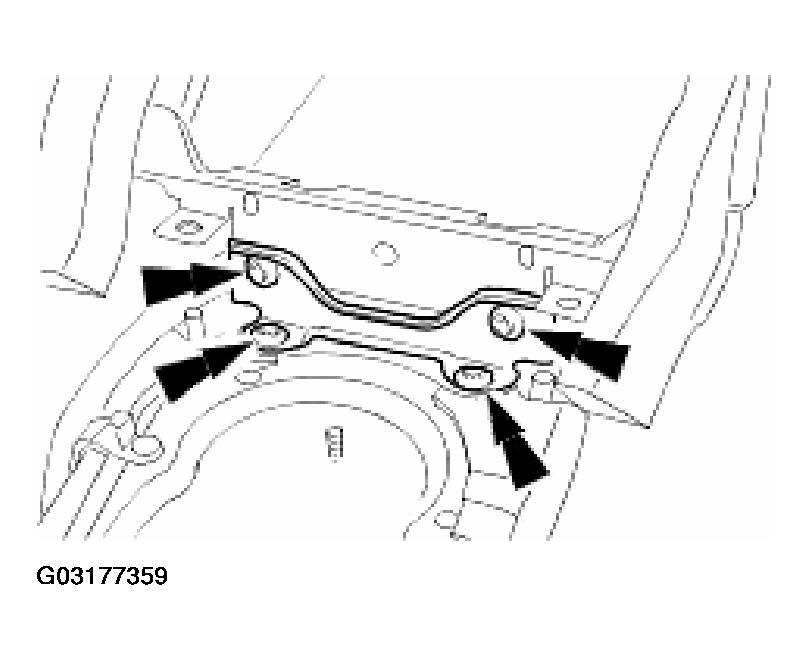

      Fig 25: Installing Fascia Center Support Bracket
      G03177359Courtesy of JAGUAR CARS, INC.
  40. Install fascia to air conditioning unit securing screws.

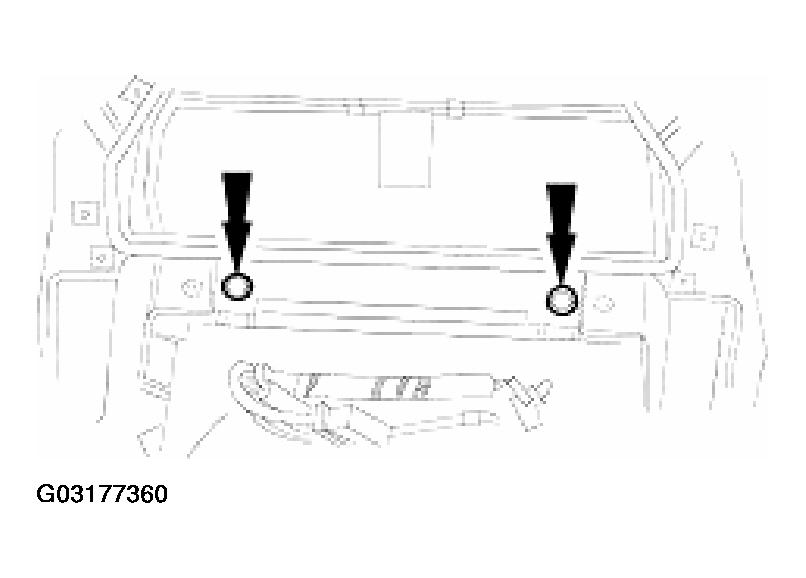

    Fig 26: Installing Fascia To Air Conditioning Unit Securing Screws
    G03177360Courtesy of JAGUAR CARS, INC.
    41. CAUTION: The 'A' post fascia mounting brackets are pre-set to the body and must not under any circumstances be disturbed.

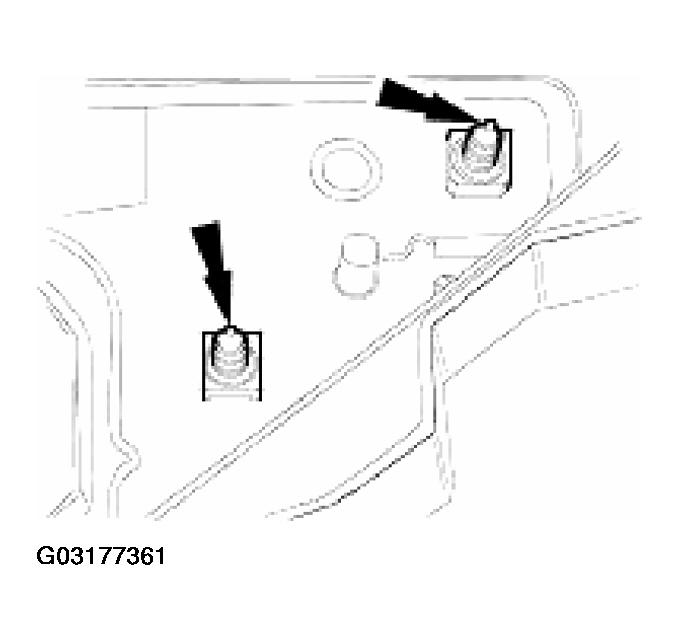

    Fig 27: Installing Bolts Securing Fascia To LH 'A' Post Bracket
    G03177361Courtesy of JAGUAR CARS, INC.
  41. Install bolts securing fascia to LH 'A' post bracket and tighten to 22-28Nm.
  42. Instal seat trim pad to fascia RH end aperture.
  43. Install bolt securing fascia mounting bracket to bulkhead adjacent to body processor.

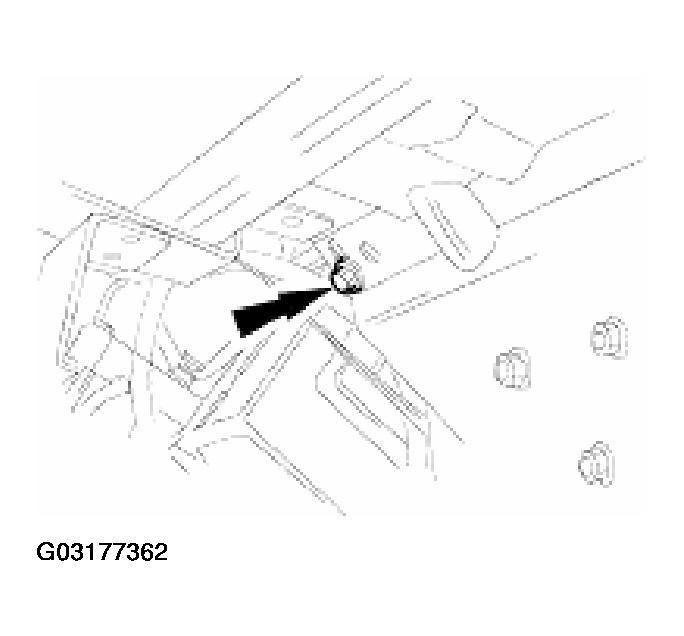

    Fig 28: Installing Bolt Securing Fascia Mounting Bracket To Bulkhead Adjacent To Body Processor
    G03177362Courtesy of JAGUAR CARS, INC.
  44. Position ground cable eyelet on LH 'A' post stud and install securing nut.
  45. Connect passenger side fascia harness to engine management harness multiplugs (white and grey) and install multiplugs on lower 'A' post retaining bracket.

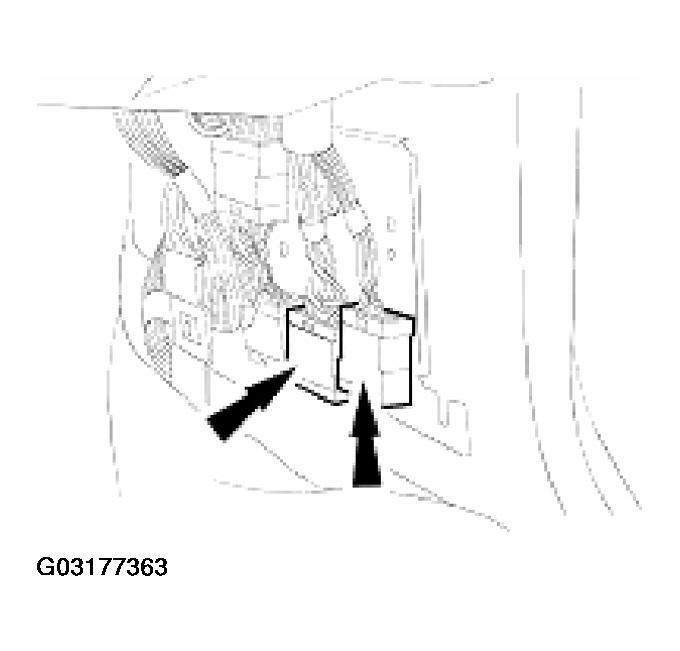

    Fig 29: Connecting Passenger Side Fascia Harness To Engine Management Harness Multiplugs
    G03177363Courtesy of JAGUAR CARS, INC.
  46. Connect passenger side fascia harness to passenger compartment harness multiplug and secure with retaining lever.

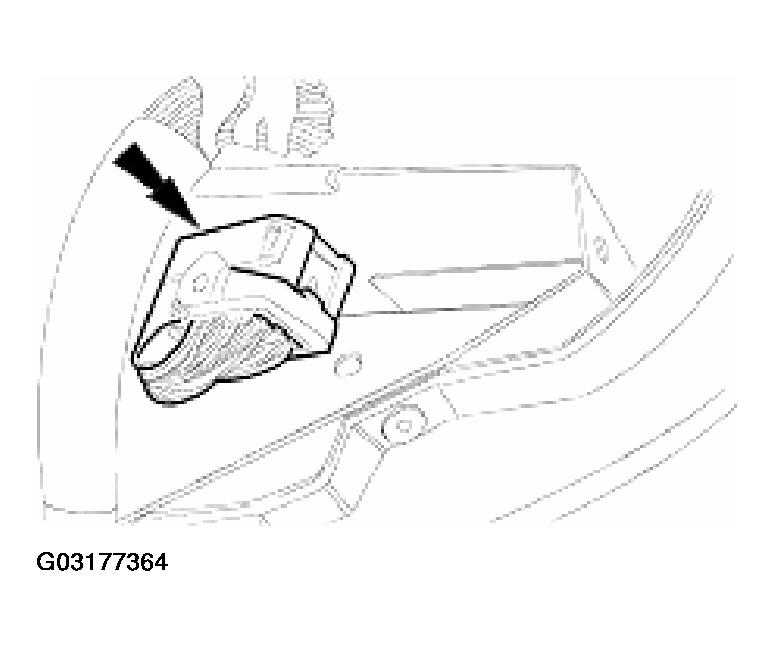

    Fig 30: Connecting Passenger Side Fascia Harness To Passenger Compartment Harness Multiplug
    G03177364Courtesy of JAGUAR CARS, INC.
  47. Install trim pad on passenger side lower 'A' post. Refer to COWL SIDE TRIM PANEL .
  48. Connect passenger air bag link harness multiplug.

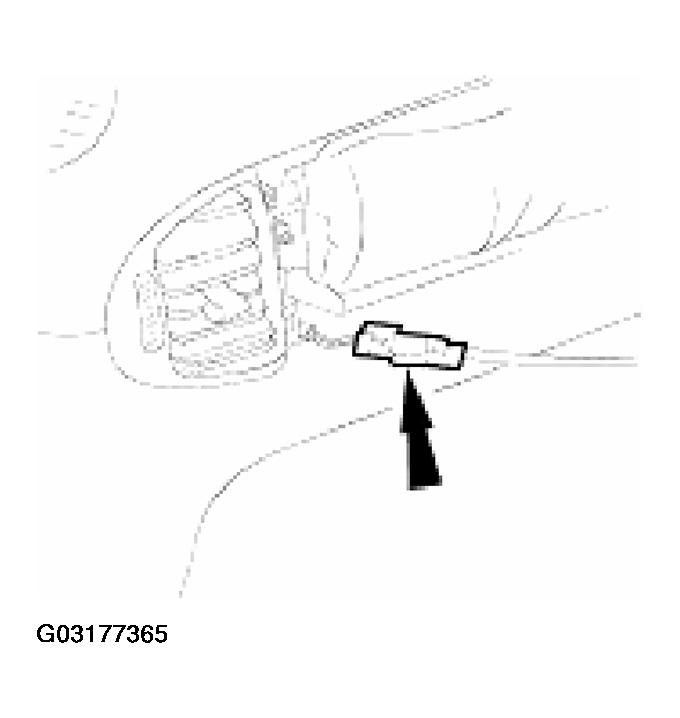

    Fig 31: Connecting Passenger Air Bag Link Harness Multiplug
    G03177365Courtesy of JAGUAR CARS, INC.
  49. Install passenger glovebox assembly. Refer to GLOVE COMPARTMENT  .
  50. Install 'J' gate finisher retaining panel. Refer to FLOOR CONSOLE FINISH PANEL BRACKET  .
  51. Install 'J' gate assembly. Refer to SELECTOR LEVER GATE FINISH PANEL for XJR or SELECTOR LEVER GATE FINISH PANEL for XJ8 .
  52. Position center console rear vent duct in air conditioning unit and install rear securing screw.

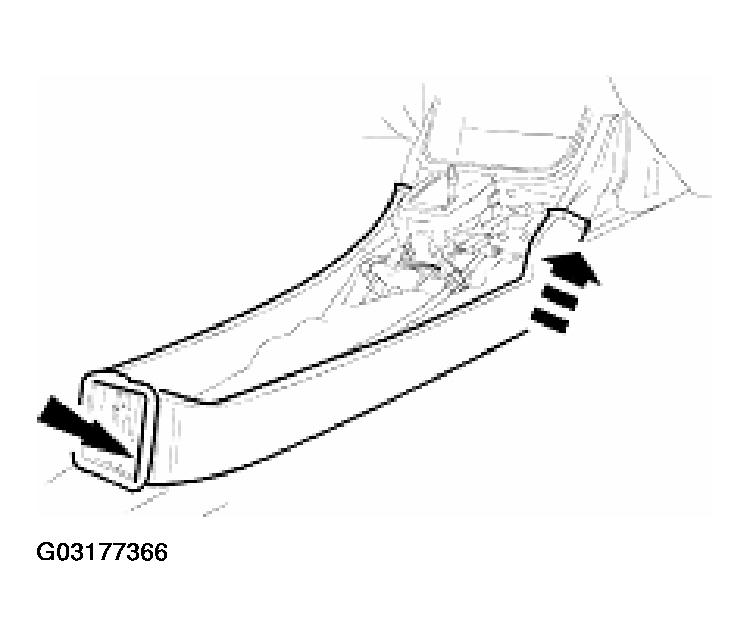

    Fig 32: Installing Center Console Rear Vent Duct In Air Conditioning Unit
    G03177366Courtesy of JAGUAR CARS, INC.
  53. Install center console. Refer to FLOOR CONSOLE  .
  54. Install center console switch module.
  55. Install radio.
  56. Install fascia center veneer panel. Refer to INSTRUMENT PANEL FINISH PANEL  .
  57. Install center console veneer panel. Refer to FLOOR CONSOLE FINISH PANEL  .
  58. Install 'J' gate finisher retaining panel. Refer to FLOOR CONSOLE FINISH PANEL BRACKET  .
  59. Install 'J' gate surround. Refer to SELECTOR LEVER GATE FINISH PANEL for XJR or SELECTOR LEVER GATE FINISH PANEL for XJ8.
  60. Connect steering column tilt motor harness multiplug and install multiplug on retaining bracket.

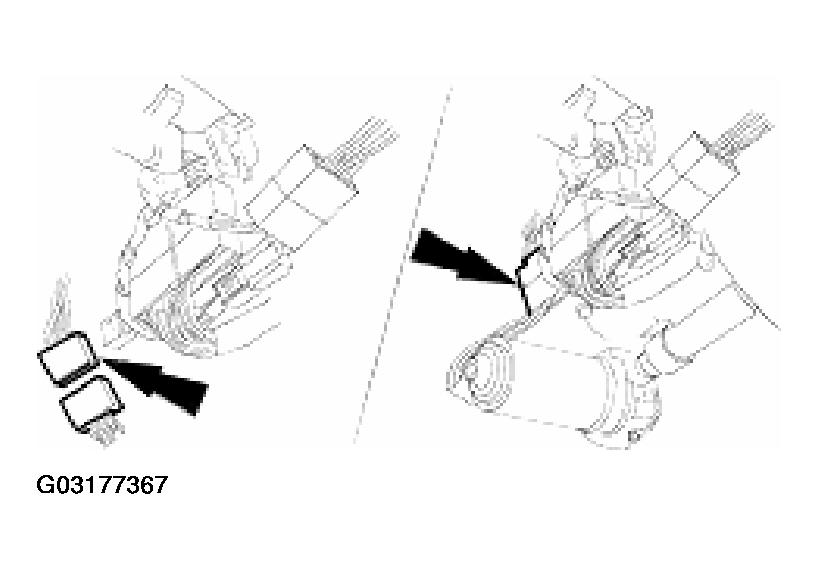

    Fig 33: Connecting Steering Column Tilt Motor Harness Multiplug
    G03177367Courtesy of JAGUAR CARS, INC.
  61. Connect steering column reach motor harness multiplug and install multiplug on retaining bracket.

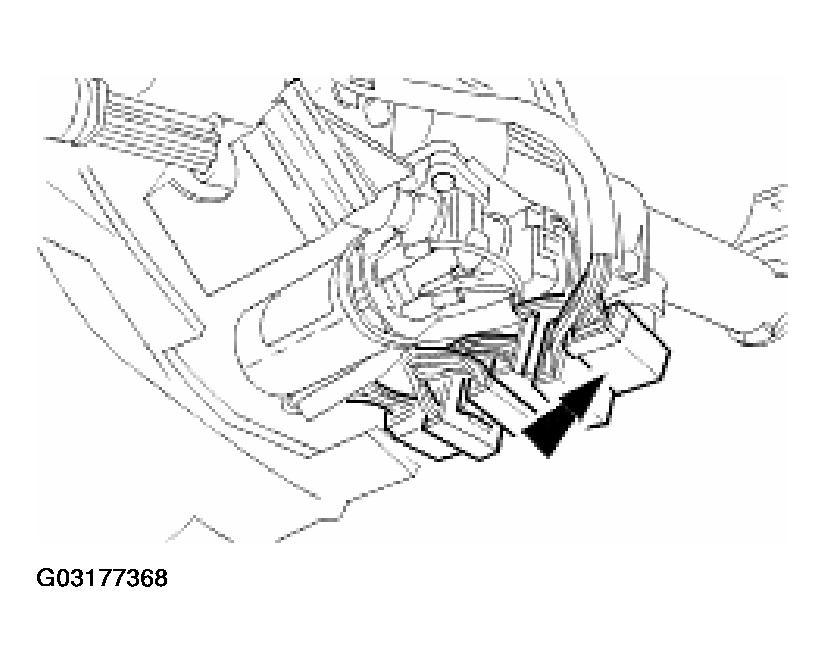

    Fig 34: Connecting Steering Column Reach Motor Harness Multiplug
    G03177368Courtesy of JAGUAR CARS, INC.
  62. Position ground cable eyelet on RH 'A' post stud and install securing nut.
  63. Connect driver side fascia harness to passenger compartment harness multiplug and secure with retaining lever.

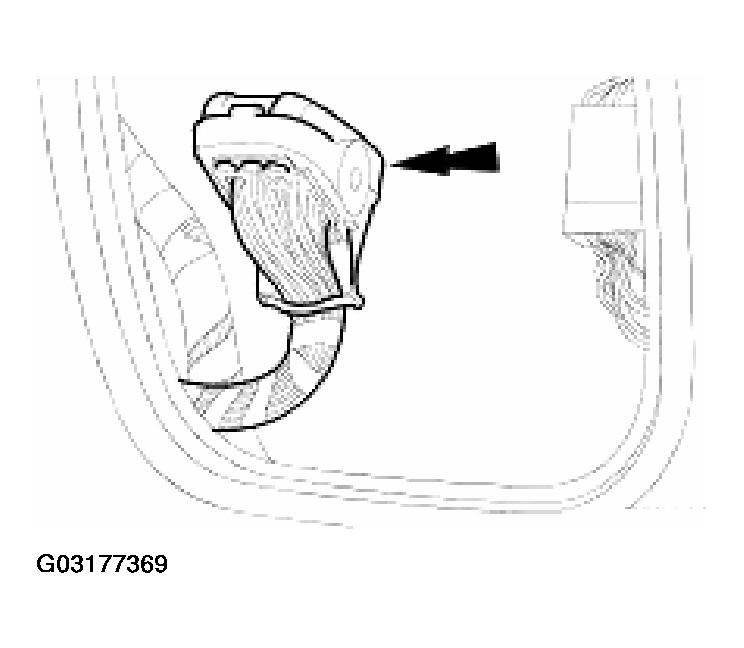

    Fig 35: Connecting Driver Side Fascia Harness To Passenger Compartment Harness Multiplug
    G03177369Courtesy of JAGUAR CARS, INC.
  64. Connect driver side fascia harness to console harness multiplugs.

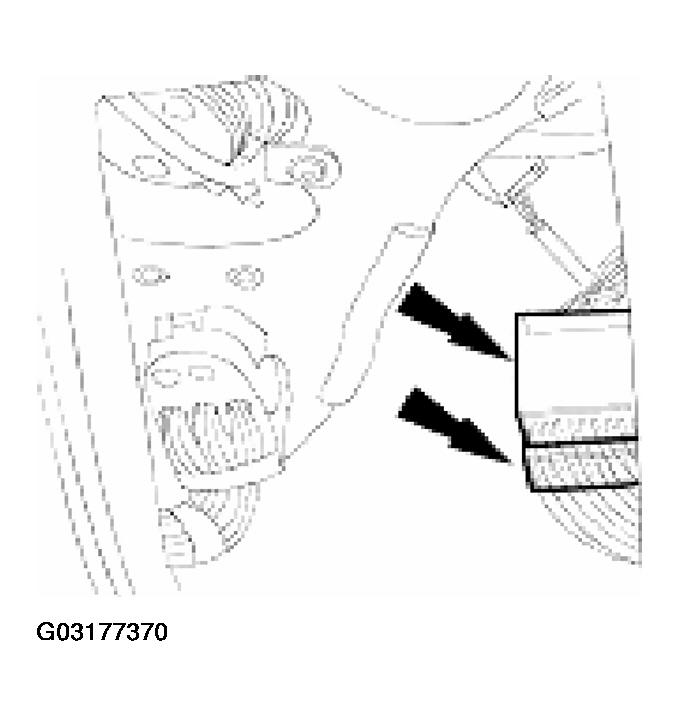

    Fig 36: Connecting Driver Side Fascia Harness To Console Harness Multiplugs
    G03177370Courtesy of JAGUAR CARS, INC.
  65. Position driver stowage bin in fascia, install securing screw and fully seat trim.

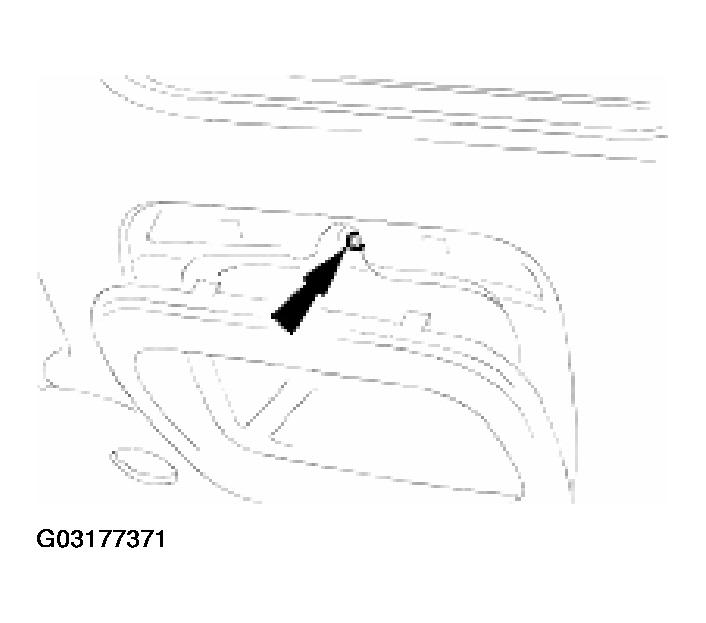

    Fig 37: Installing Driver Stowage Bin In Fascia
    G03177371Courtesy of JAGUAR CARS, INC.
  66. Install trim pad on driver side lower 'A' post. Refer to COWL SIDE TRIM PANEL .
  67. Install driver side underscuttle. Refer to INSTRUMENT PANEL LOWER TRIM PANEL  .
  68. Install combined windshield wiper/washer switch and audible warning speaker assembly. Refer to WINDSHIELD WIPER/WASHER SWITCH .
  69. Install steering column upper cowl. Refer to STEERING COLUMN UPPER SHROUD  .
  70. Install steering column lower cowl. Refer to STEERING COLUMN LOWER SHROUD  .
  71. Install steering wheel. Refer to STEERING COLUMN .
  72. Install driver side airbag. Refer to DRIVER-SIDE AIR BAG MODULE .
