Instrument Panel Lower Trim Panel: Removal

  1. Turn ignition switch to position 'II.'
  2. Motor driver seat fully rearwards.
  3. Turn ignition switch to position 'O.'
  4. Slacken and remove the four underscuttle securing screws.

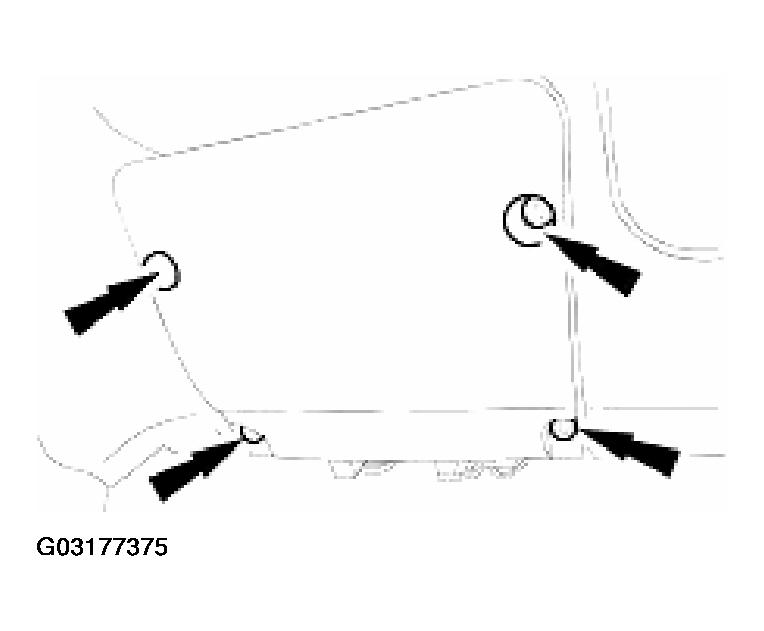

    Fig 1: Removing Underscuttle Securing Screws
    G03177375Courtesy of JAGUAR CARS, INC.
  5. Remove and discard securing clips from screw locations.
  6. Remove underscuttle from vehicle.
