Instrument Cluster Finish Panel Bezel: Removal

Adjust steering column to fully extended and lowered position.
Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Remove veneer from instrument panel. Refer to INSTRUMENT CLUSTER FINISH PANEL .
Using a small screwdriver, depress fog lamp switch upper retaining tang and release switch from gauge surround.

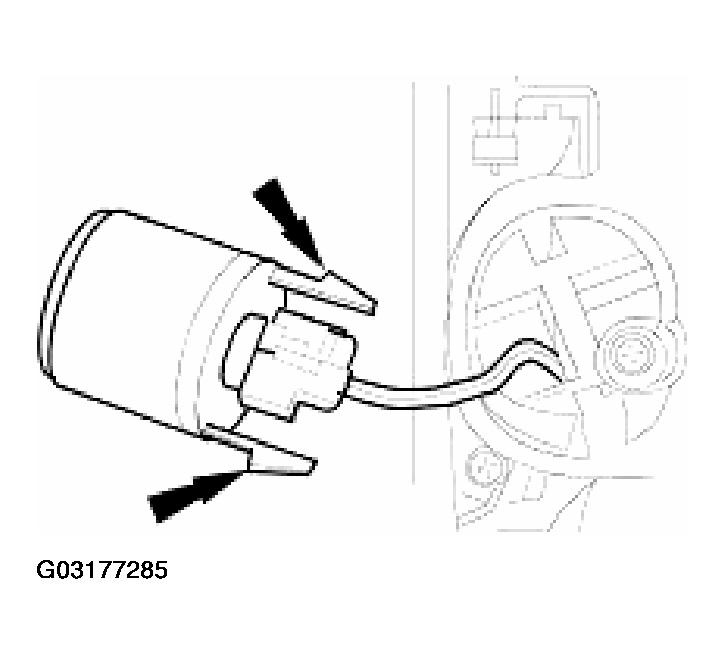

Fig 1: Releasing Fog Lamp Switch From Gauge Surround
Courtesy of JAGUAR CARS, INC.
Position fog lamp switch for access, disconnect harness multiplug and remove switch.

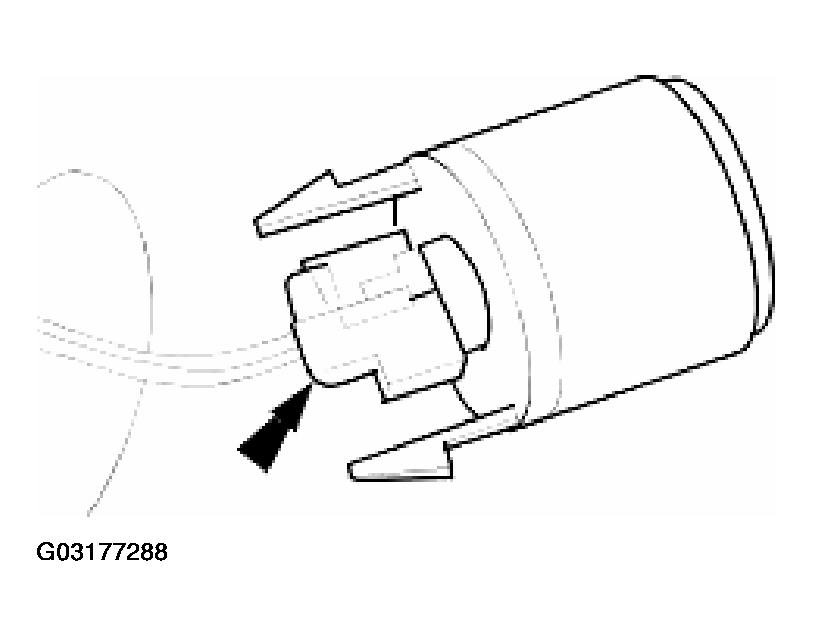

Fig 2: Disconnecting/Removing Switch
Courtesy of JAGUAR CARS, INC.
Using a small screwdriver, depress trip keyboard upper retaining tang and release keyboard from gauge surround.

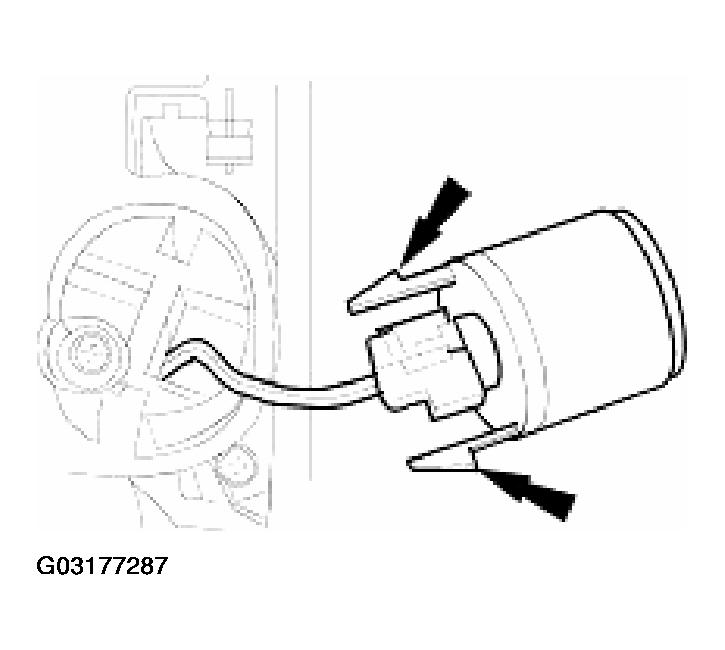

Fig 3: Releasing Trip Keyboard From Gauge Surround
Courtesy of JAGUAR CARS, INC.
Position trip keyboard for access and disconnect harness multiplug.

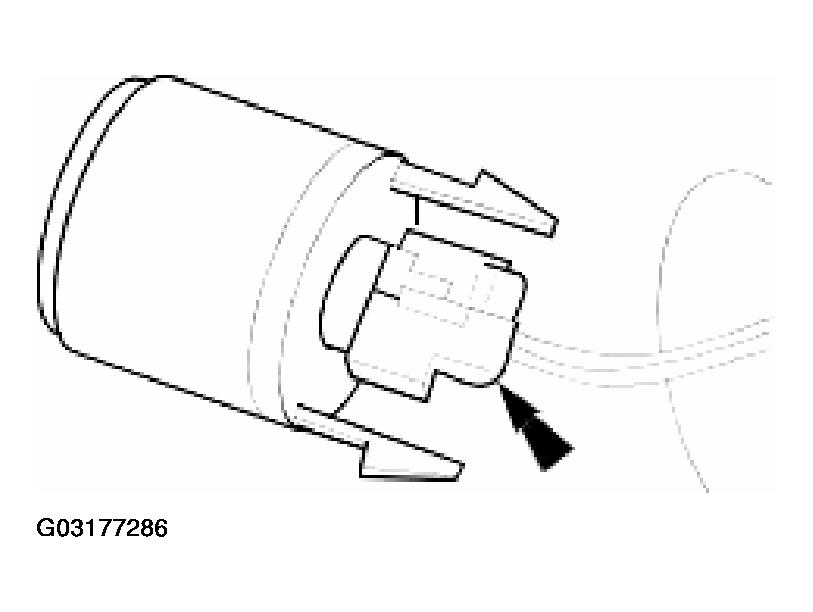

Fig 4: Disconnecting Trip Keyboard
Courtesy of JAGUAR CARS, INC.
Slacken and remove four screws securing major gauge module/surround to fascia and withdraw surround.

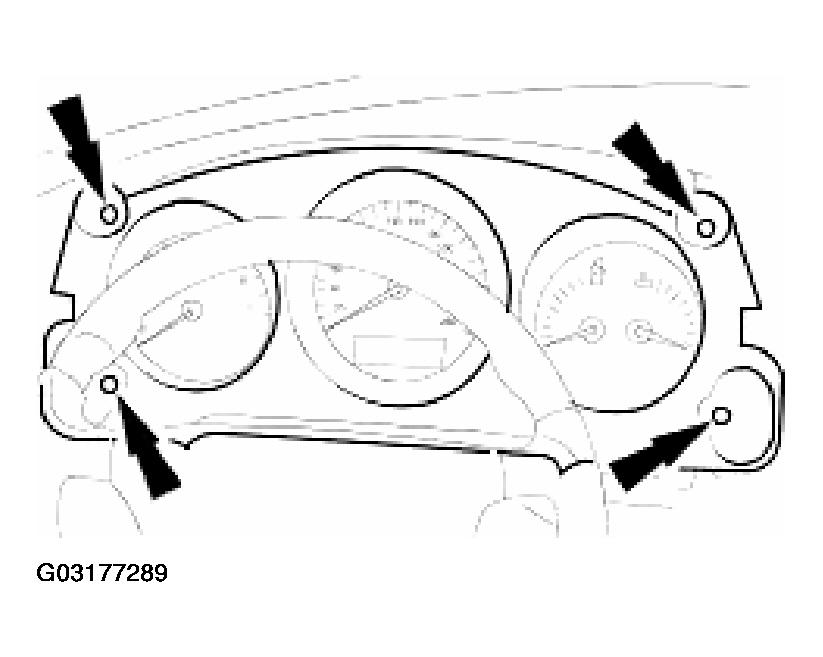

Fig 5: Removing Major Gauge Module/Surround
Courtesy of JAGUAR CARS, INC.
