Glove Compartment: Removal

Open glovebox.

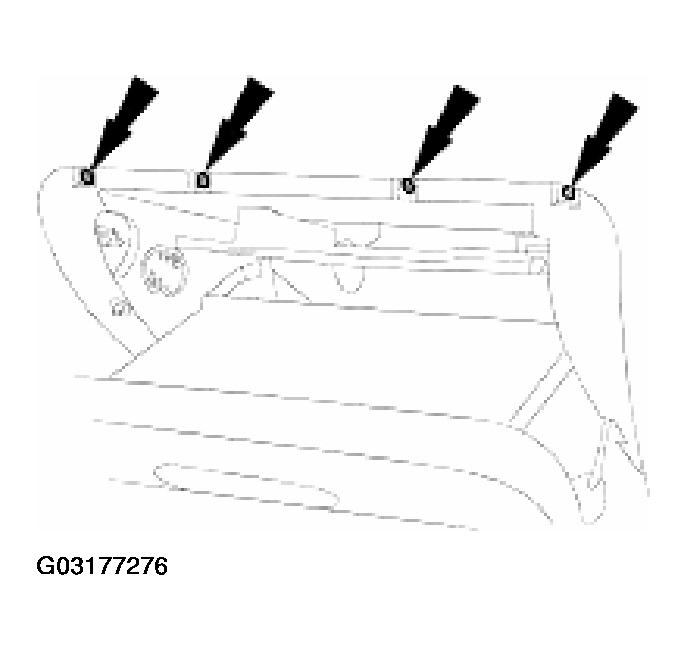

Supporting the glovebox, slacken and remove the four top securing screws.

Fig 1: Removing Glovebox Top Securing Screws
Courtesy of JAGUAR CARS, INC.

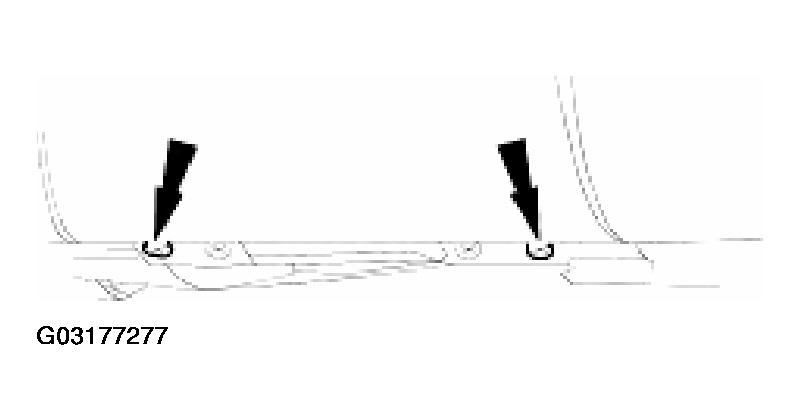

Slacken and remove the two glovebox lower outer securing screws.

Fig 2: Removing Glovebox Lower Outer Securing Screws
Courtesy of JAGUAR CARS, INC.

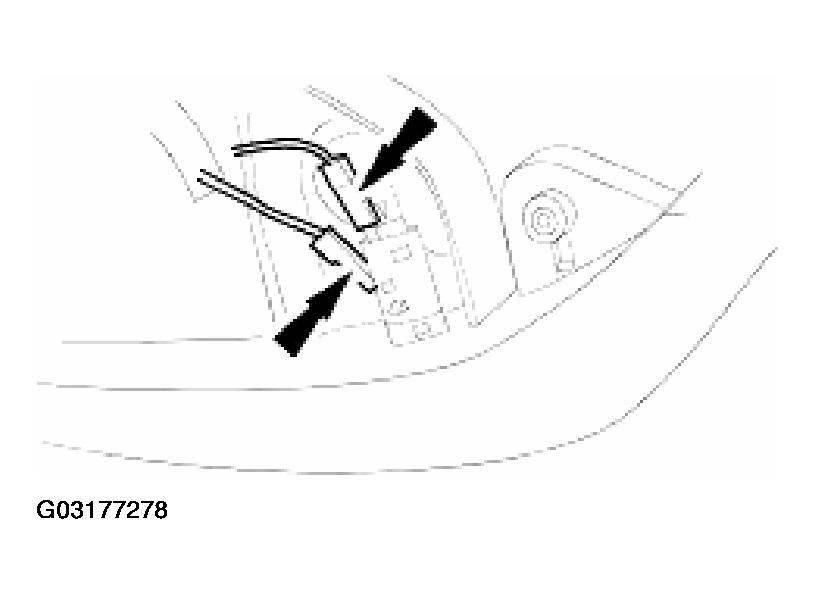

Withdraw glovebox for access and disconnect the two illumination harness connectors.

Fig 3: Disconnecting Illumination Harness Connectors
Courtesy of JAGUAR CARS, INC.
Remove glovebox from vehicle.
