Glove Compartment Liner: Removal

  1. Remove glovebox refer to GLOVE COMPARTMENT  .
  2. Remove glovebox lid. Refer to GLOVE COMPARTMENT LID  .
  3. Remove glovebox damper. Refer to GLOVE COMPARTMENT LID DAMPER  .
  4. Release damper cord guide retaining tangs and remove guide from bracket.

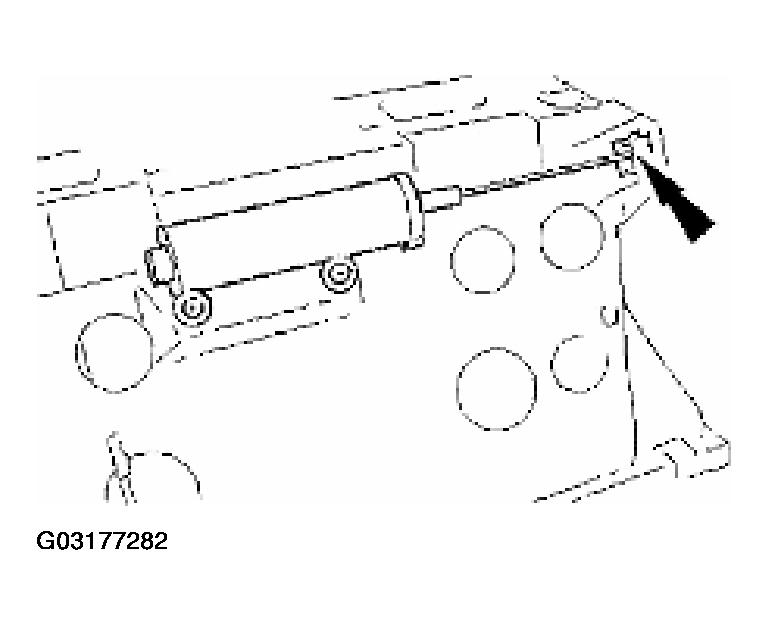

    Fig 1: Removing Guide From Bracket
    G03177282Courtesy of JAGUAR CARS, INC.
  5. Position liner for access and carefully remove switch assembly from housing.

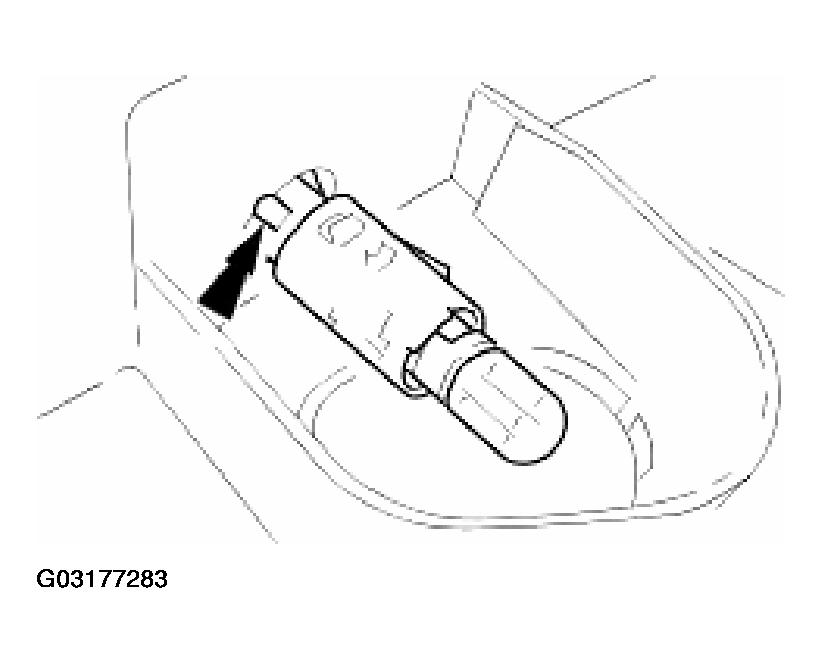

    Fig 2: Removing Switch Assembly From Housing
    G03177283Courtesy of JAGUAR CARS, INC.
