Glove Compartment Lid Damper: Removal

remove glovebox assembly. Refer to GLOVE COMPARTMENT .
Disconnect glovebox damper cord end loop from damper and route cord through the liner guide.

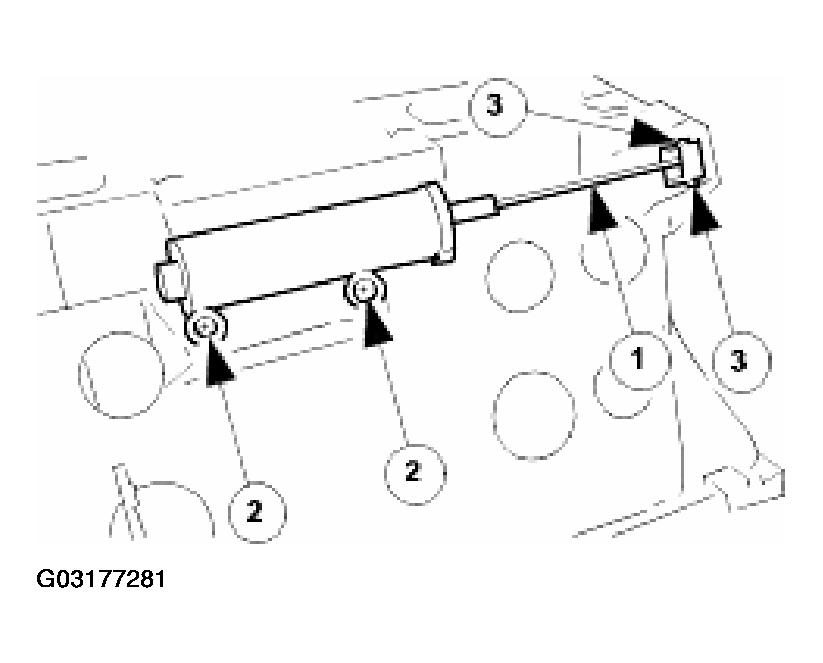

Fig 1: Disconnecting Glovebox Damper Cord End Loop From Damper
Courtesy of JAGUAR CARS, INC.
Slacken and remove the two damper securing nuts and remove damper from liner.

Fig 2: Removing Damper Securing Nuts And Damper From Liner
Courtesy of JAGUAR CARS, INC.
