Floor Console Stowage Compartment Lid: Removal

Open glovebox lid.
Slacken and remove lid stay securing screw and remove stay from lid.

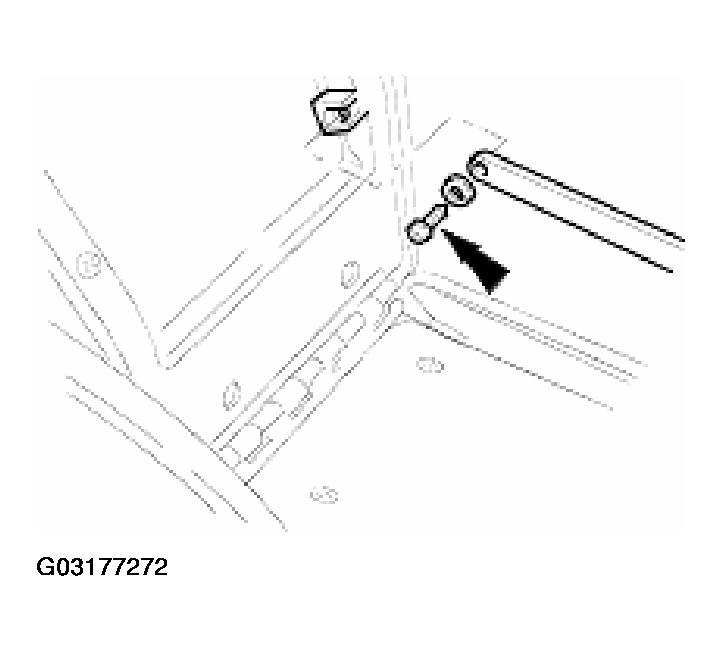

Fig 1: Removing Lid Stay From Lid
Courtesy of JAGUAR CARS, INC.
Slacken and remove glovebox latch securing screws and remove latch from glovebox.

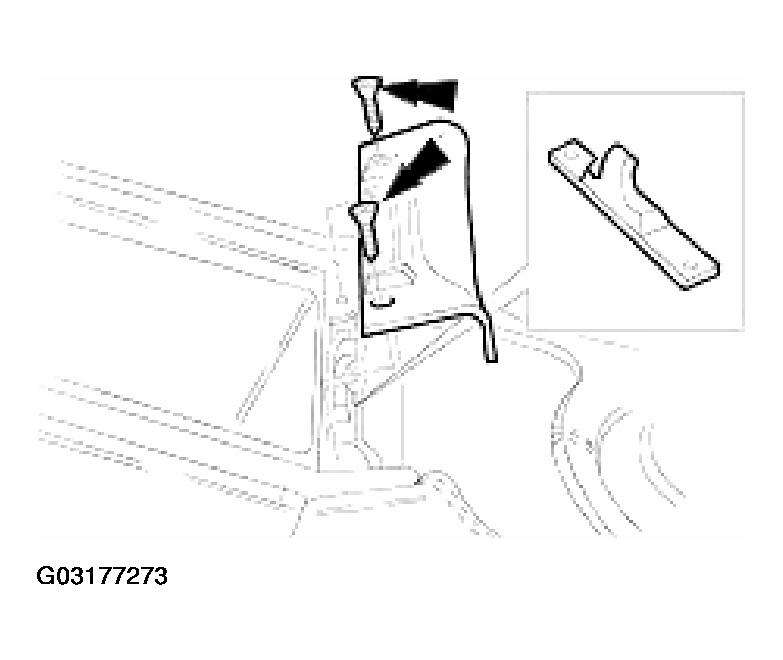

Fig 2: Removing Glovebox Latch
Courtesy of JAGUAR CARS, INC.
Slacken and remove glovebox liner rear securing screws and remove liner for access.

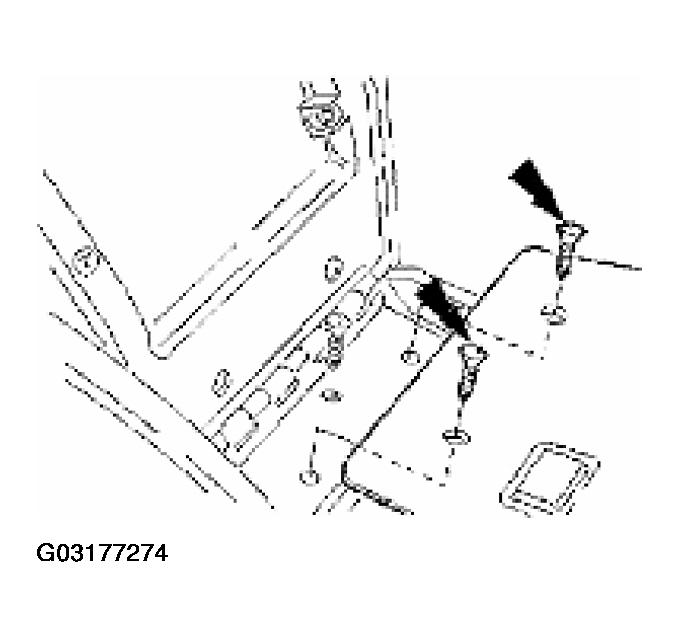

Fig 3: Removing Glovebox Liner Rear Securing Screws
Courtesy of JAGUAR CARS, INC.
Slacken and remove remaining glovebox hinge securing screw.

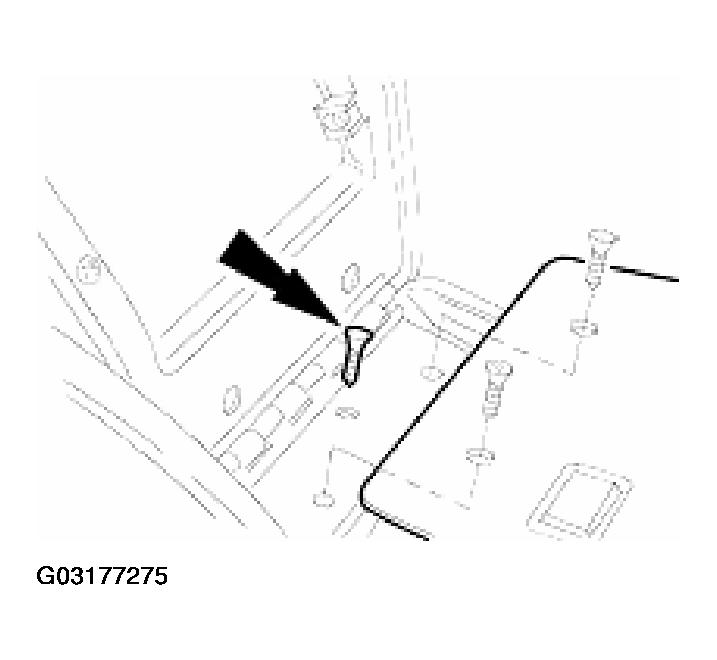

Fig 4: Removing Remaining Glovebox Hinge Securing Screw
Courtesy of JAGUAR CARS, INC.
Slacken and remove screws securing hinge to lid and remove hinge.
