Floor Console Finish Panel Bracket: Removal

  1. Remove 'J' gate finisher. Refer to SELECTOR LEVER GATE FINISH PANEL for XJR or SELECTOR LEVER GATE FINISH PANEL for XJ8.
  2. Slacken and remove the two front nuts and two rear screws securing the retaining panel.

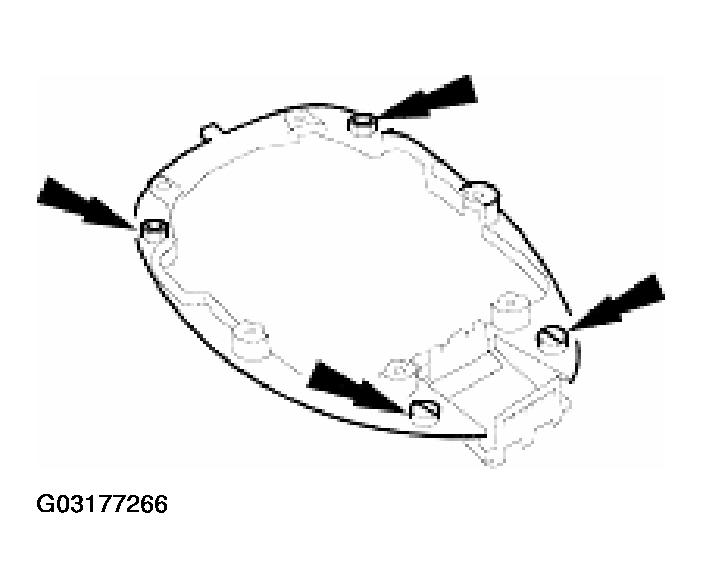

    Fig 1: Removing Front Nuts And Rear Screws Securing Retaining Panel
    G03177266Courtesy of JAGUAR CARS, INC.
  3. Position retaining panel for access, disconnect SPORT mode and cruise control ON/OFF switch multiplugs and remove retaining panel complete with switches.

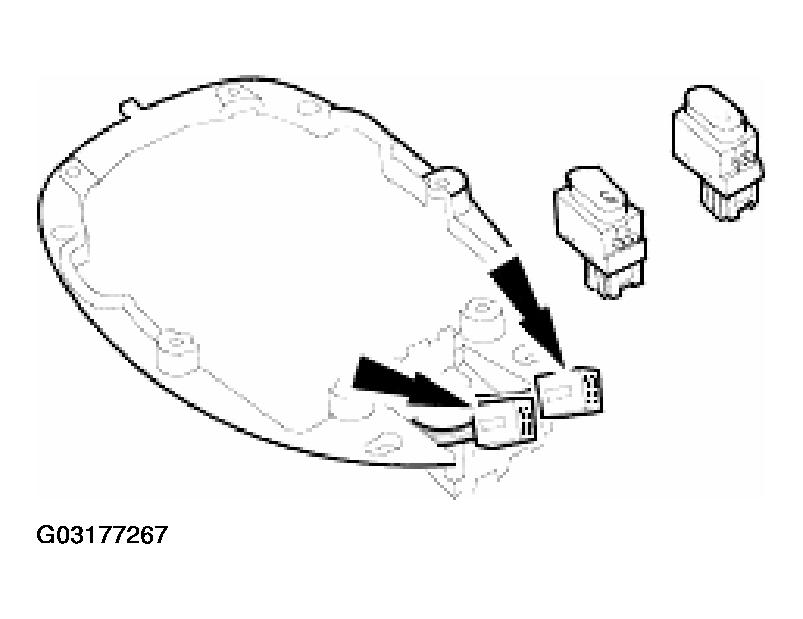

    Fig 2: Disconnecting Switch Multiplugs And Removing Retaining Panel
    G03177267Courtesy of JAGUAR CARS, INC.
  4. Remove switches from retaining panel.
  5. Remove and discard bushings from retaining panel.

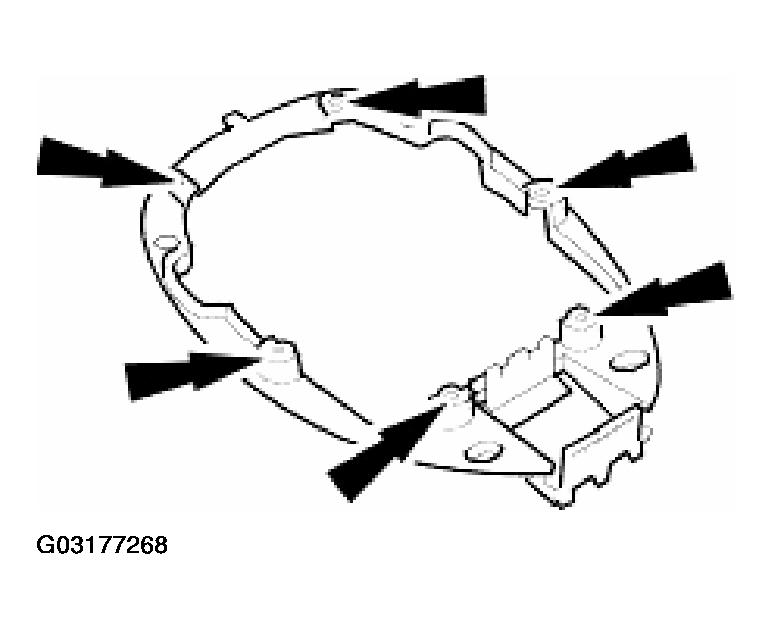

    Fig 3: Removing Bushings From Retaining Panel
    G03177268Courtesy of JAGUAR CARS, INC.
