Floor Console Ashtray: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Remove center console for access. Refer to FLOOR CONSOLE .
Open ashtray lid and remove cigar lighter.
Remove cigar lighter housing.
- Remove tape securing harness to console underside.
- Slacken and remove retaining ring from underside and remove housing complete with cable.

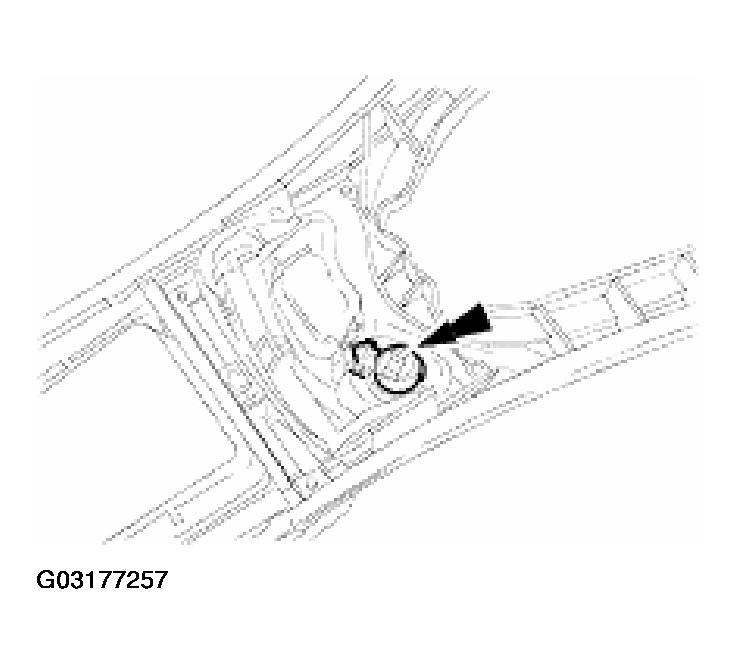

  Fig 1: Removing Cigar Lighter Housing
  Courtesy of JAGUAR CARS, INC.
Release bulb housing tangs and withdraw bulb and housing from underside complete with flying lead.
Position console for access, slacken and remove the four ashtray securing screws and remove ashtray from console.

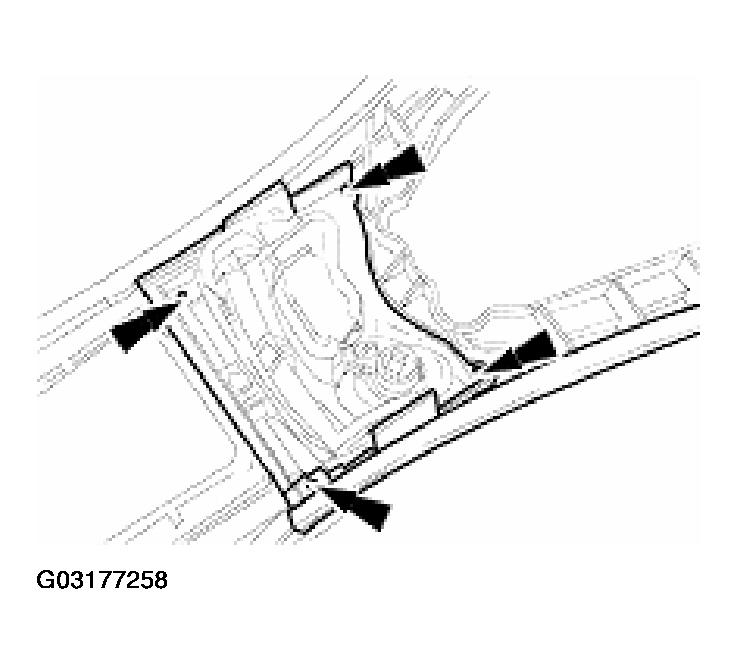

Fig 2: Removing Ashtray From Console
Courtesy of JAGUAR CARS, INC.
