Climate Control Assembly Housing: Removal

  1. Move 'J' gate selector to position 'D.'
  2. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  3. Remove 'J' gate finisher. Refer to SELECTOR LEVER GATE FINISH PANEL for XJR or SELECTOR LEVER GATE FINISH PANEL for XJ8.
  4. Remove 'J' gate finisher retaining plate. Refer to FLOOR CONSOLE FINISH PANEL BRACKET  .
  5. Remove center console veneer panel. Refer to FLOOR CONSOLE FINISH PANEL  .
  6. Remove radio and console. Refer to AUDIO UNIT HOUSING  .
  7. Disconnect air conditioning panel flying lead multiplug (blue) in LH side of transmission tunnel.

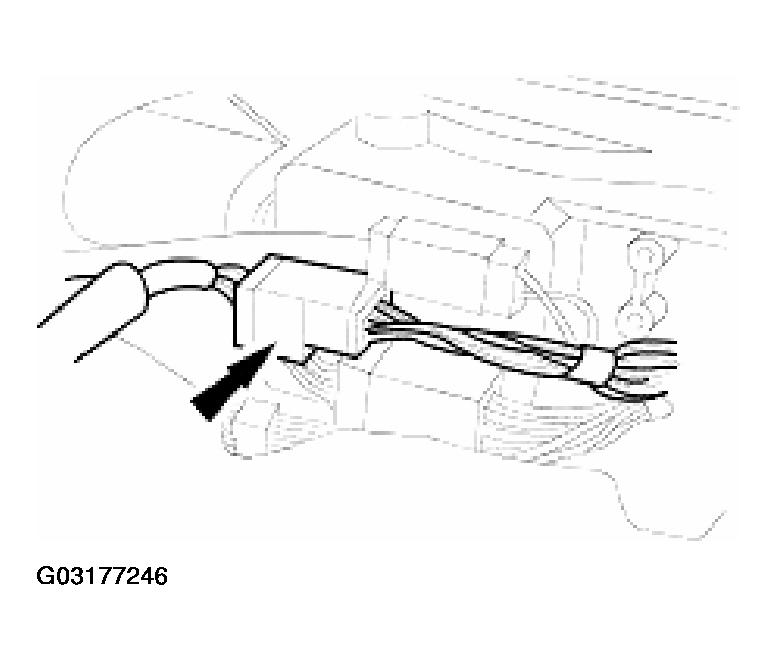

    Fig 1: Disconnecting Air Conditioning Panel Flying Lead Multiplug
    G03177246Courtesy of JAGUAR CARS, INC.
  8. Slacken and remove remaining screw securing air conditioning panel console to body.

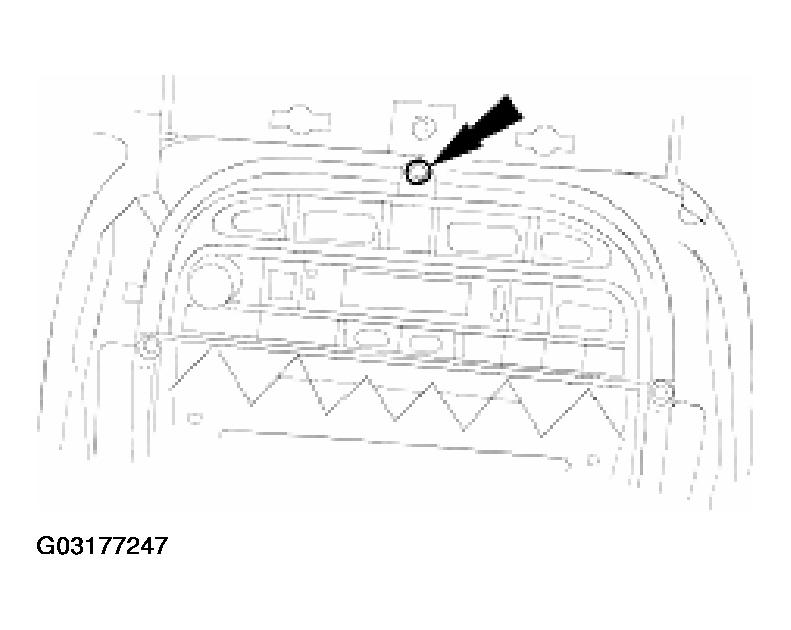

    Fig 2: Removing Remaining Screw Securing Air Conditioning Panel Console To Body
    G03177247Courtesy of JAGUAR CARS, INC.
  9. Withdraw air conditioning panel and console for access and disconnect the harness multiplug behind panel.

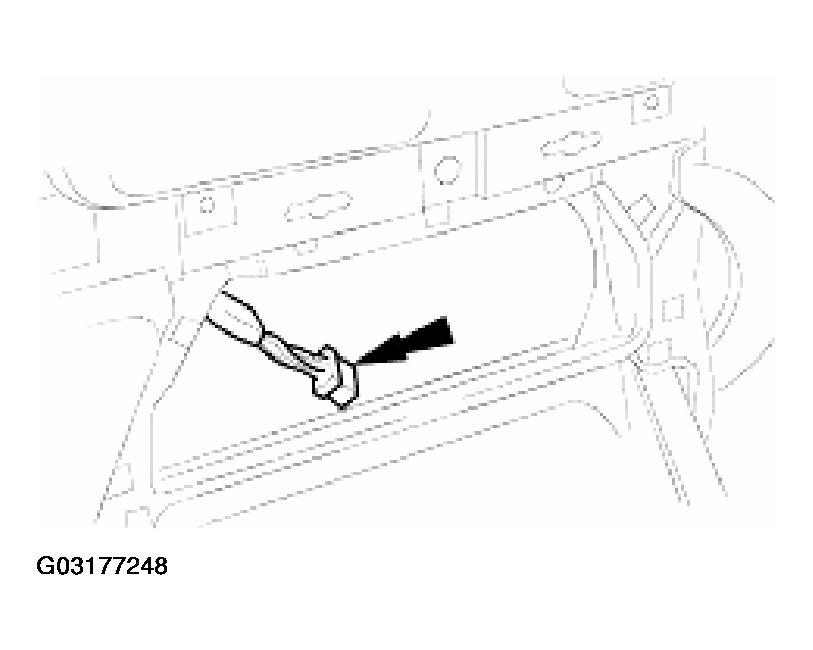

    Fig 3: Disconnecting Harness Multiplug
    G03177248Courtesy of JAGUAR CARS, INC.
  10. Remove air conditioning panel from vehicle.
  11. Remove panel from console.
