Audio Unit Housing: Removal

Remove center console veneer panel. Refer to FLOOR CONSOLE FINISH PANEL .
Withdraw radio from console for access, disconnect multiplugs and aerial lead and remove radio from vehicle.
Remove console for access.
- Slacken and remove two screws securing radio console to fascia, release two dowels and withdraw console for access.
- Release clip retaining air conditioning panel harness.

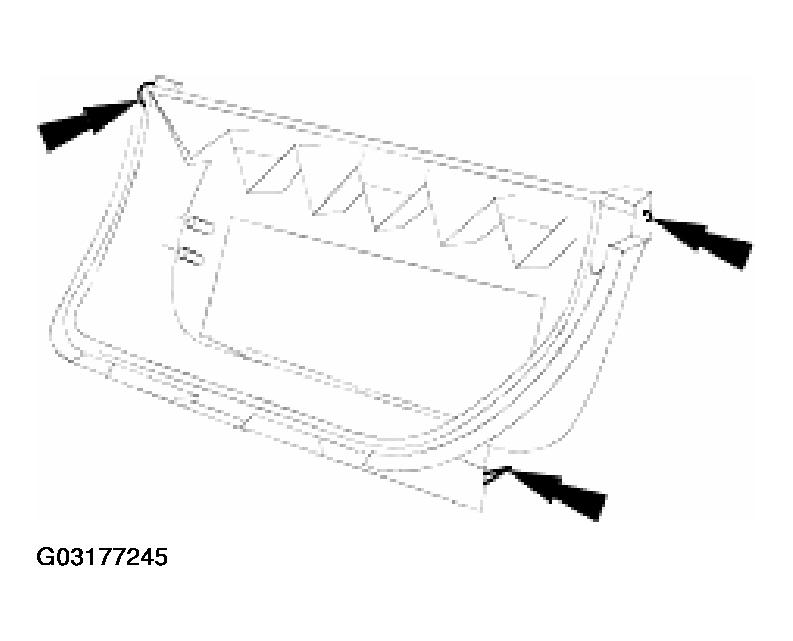

  Fig 1: Removing Console For Access
  Courtesy of JAGUAR CARS, INC.
Tilt bottom of radio console upwards and remove console from vehicle.
