Description and Operation

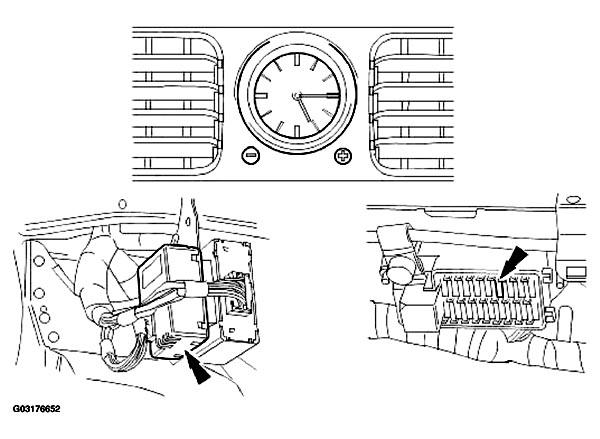

The analogue clock is mounted in the center of fascia vent assembly and can only be removed after withdrawal of the fascia vent assembly.
The clock is protected by a 5A fuse in location F6 of the LH heelboard fusebox and illumination is controlled by the dimmer module in the same manner as the other instruments.
The time displayed can be advanced using the positive button and retarded using the minus button.
