Steering Column Lower Shroud: Removal

  1. Move driver seat fully rearward.
  2. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  3. Remove cowl from steering column.
    • Remove key from ignition switch. (1)
    • Slacken and remove cowl securing screws. (2)
    • Separate lower cowl from upper cowl (four tabs) and move lower cowl forward to access multiplugs. (3)
    • Disconnect rheostat harness multiplug. (4)
    • Disconnect tilt column harness multiplug. (5)

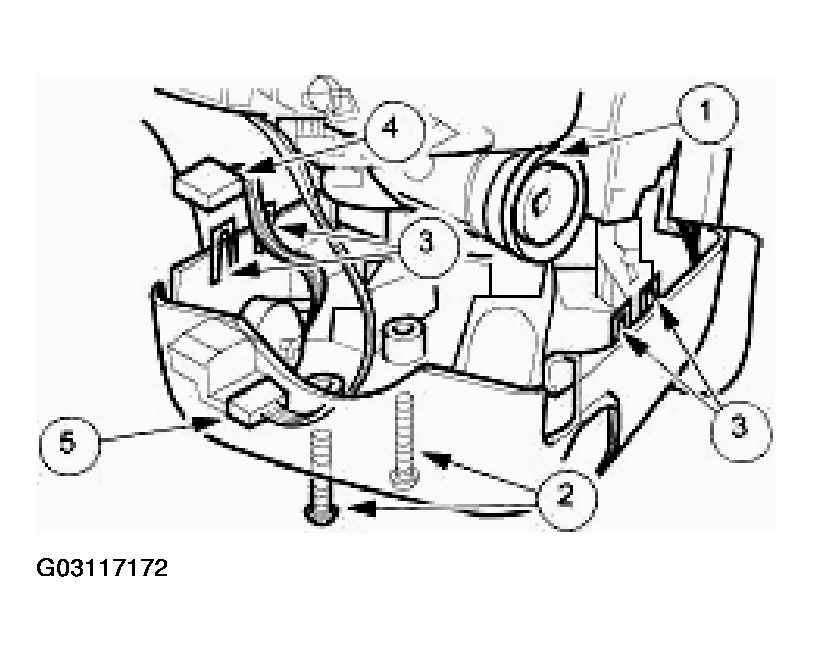

    Fig 1: Removing Cowl From Steering Column
    G03117172
  4. Remove rheostat and column adjustment switch from cowl.
    • Remove adjusting knob from rheostat.
    • Slacken and remove rheostat securing screw.
    • Release column adjustment switch retaining tangs and remove switch from cowl.

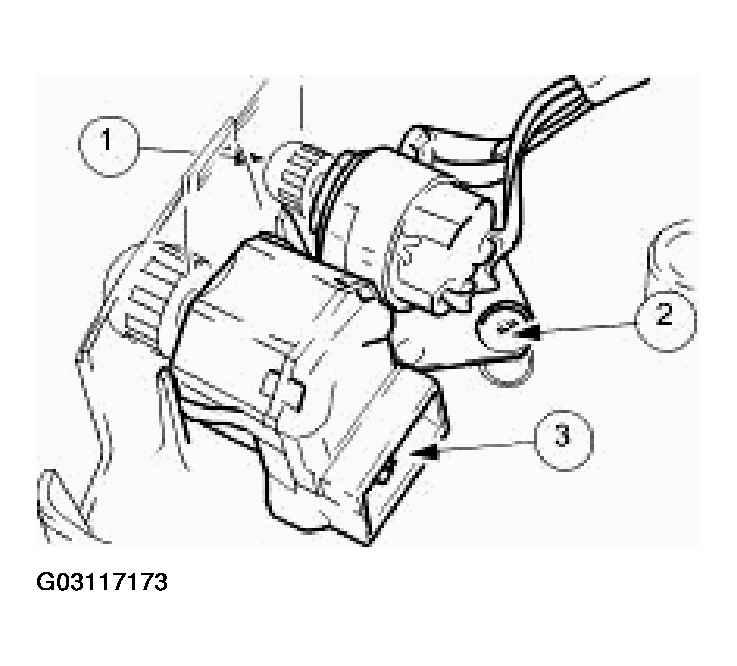

    Fig 2: Removing Rheostat And Column Adjustment Switch From Cowl
    G03117173
