Rear Cup Holder : Removal

Remove the console glove box lid. Refer to FLOOR CONSOLE STOWAGE COMPARTMENT LID .
Slacken and remove the ten inner lid securing screws and remove the inner lid.

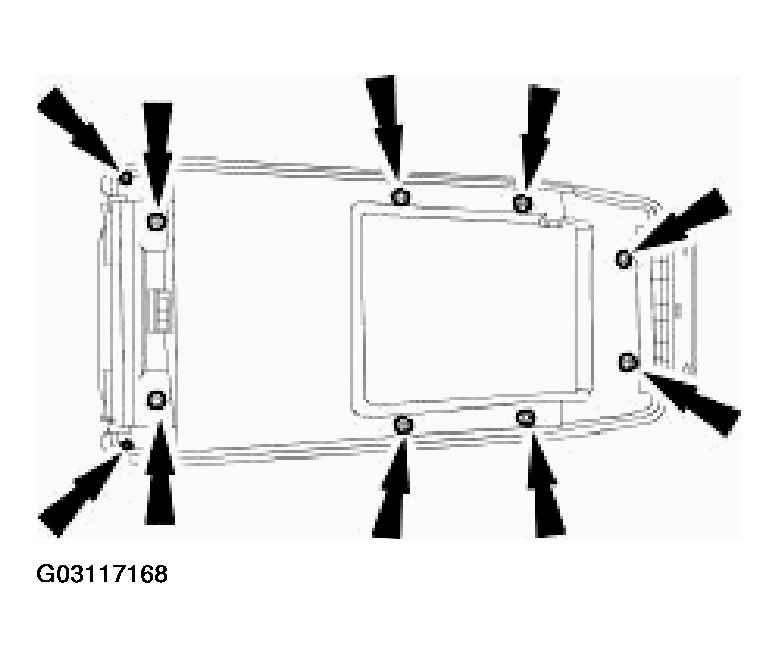

Fig 1: Removing Inner Lid Securing
Slacken and remove cupholder latch securing screw and remove latch assembly.

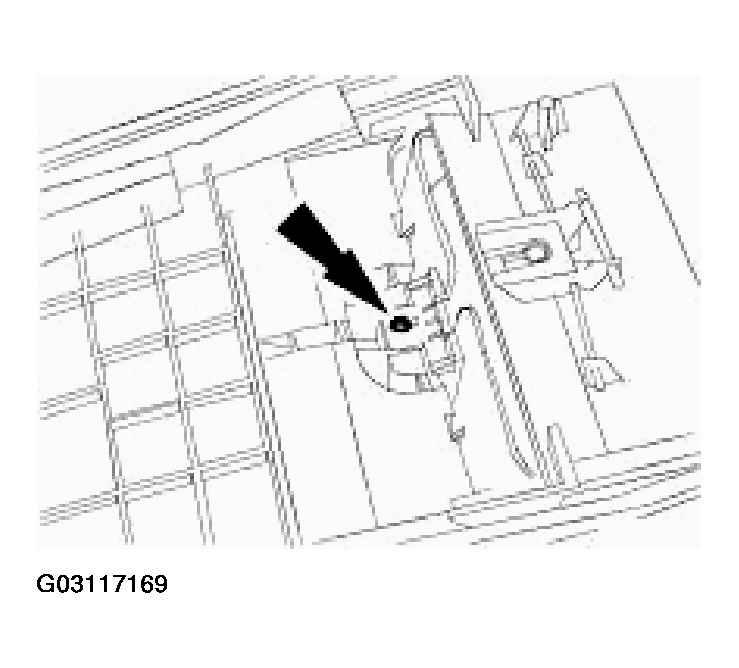

Fig 2: Removing Cupholder Latch
Open cupholder, depress tang each side of latch location and withdraw cupholder assembly from base.

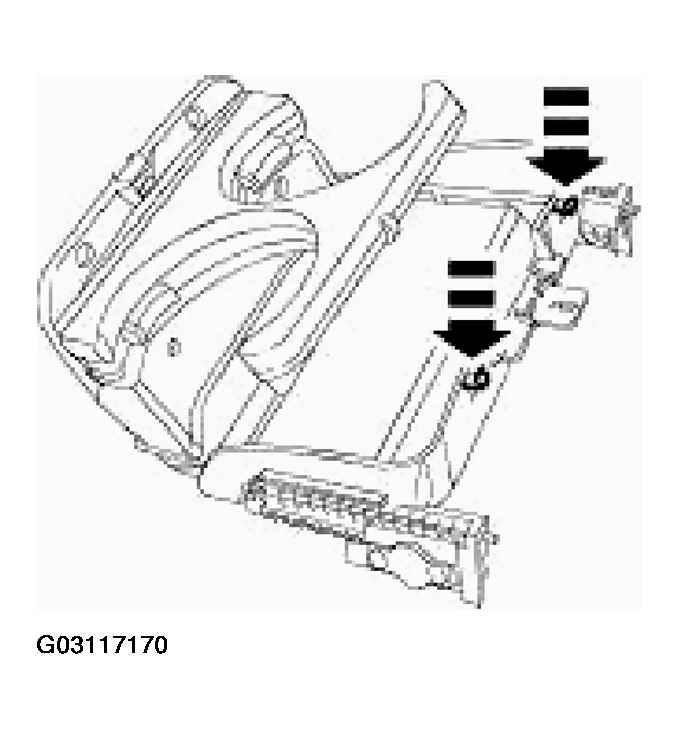

Fig 3: Removing Cupholder Assembly
Slacken and remove the cupholder trim panel securing screws.

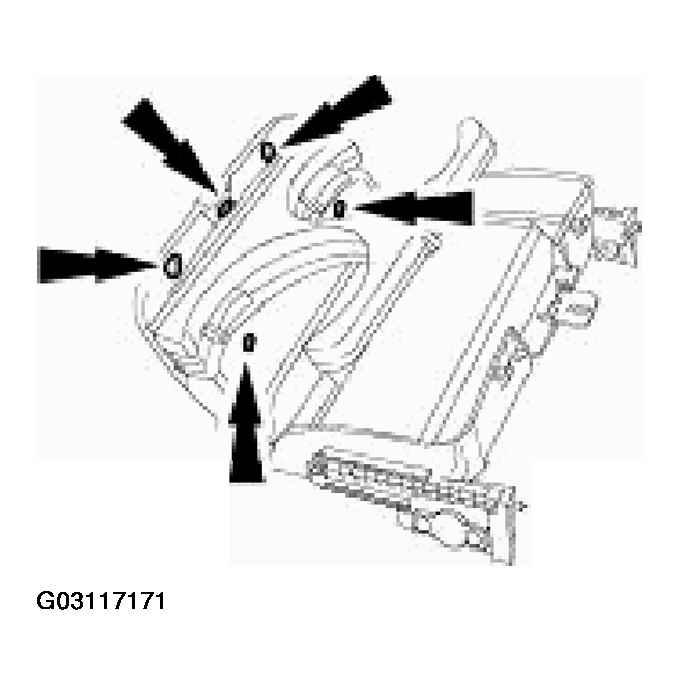

Fig 4: Removing Cupholder Trim Panel Securing Screws
