Overhead Console: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Open roof console sun glasses compartment.

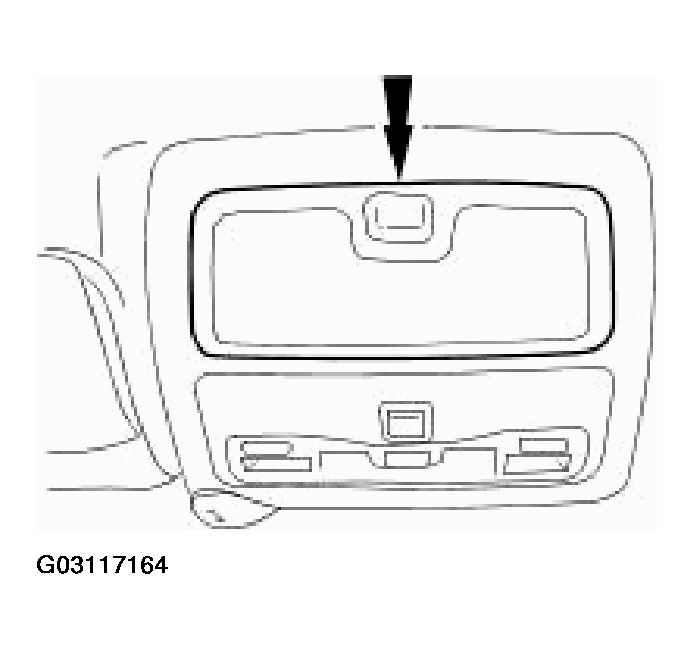

Fig 1: Opening Sun Glasses Compartment
Rotate fastener 1/4 turn to release console.

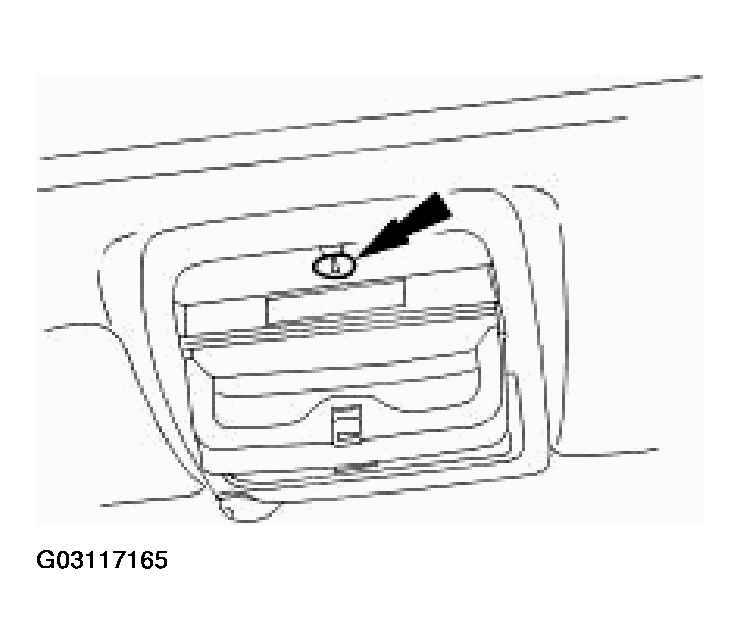

Fig 2: Releasing Console
Lower console from roof and disconnect lighting module harness multiplug and hands-free microphone harness multiplug if telephone is fitted.

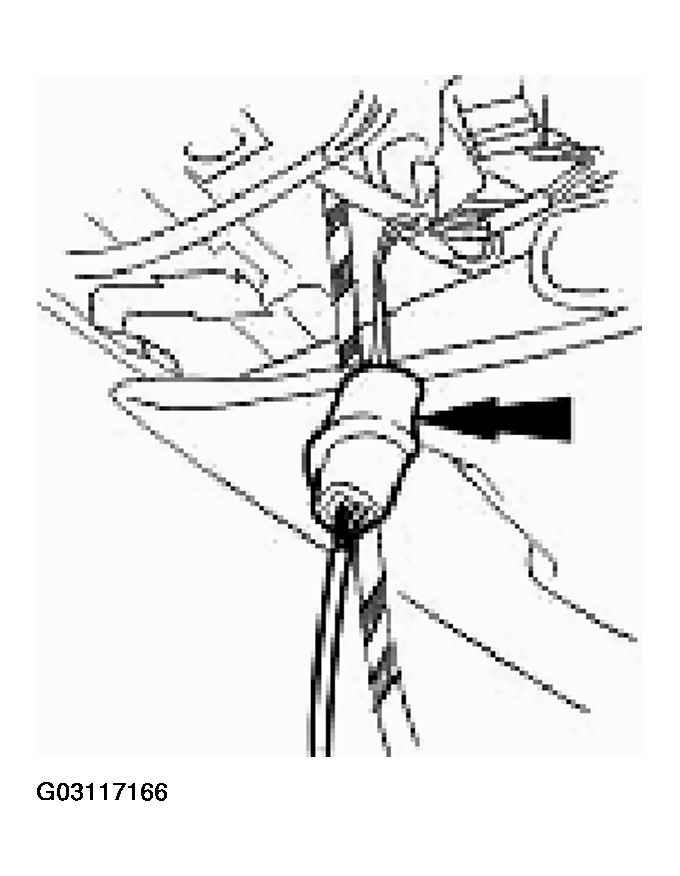

Fig 3: Disconnecting Lighting Module Harness Multiplug And Hands-Free Microphone Harness Multiplug
Release roof console from retaining clips and remove from vehicle.

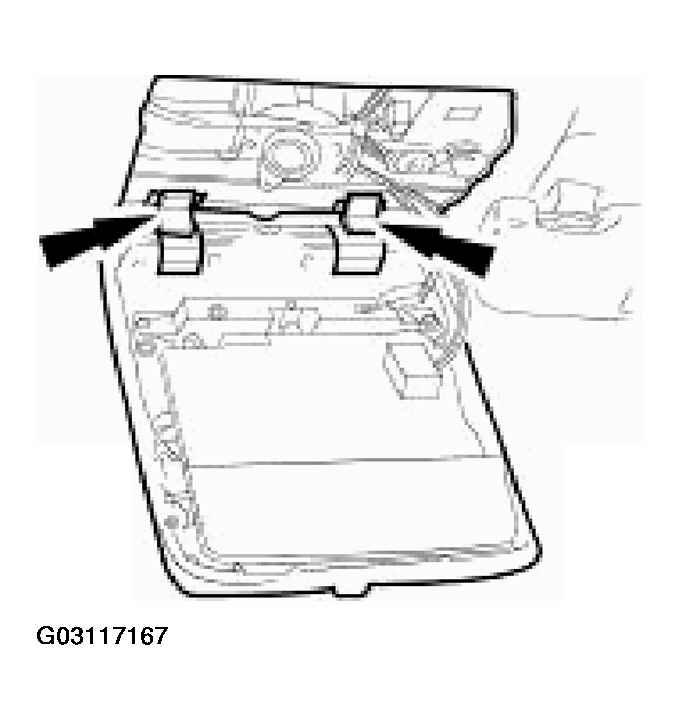

Fig 4: Releasing Roof Console From Retaining Clips
