Instrument Cluster Finish Panel: Removal

  1. Turn ignition key to position II.
  2. Move steering column to lowest and fully extended position.
  3. Turn ignition key to position 'O'.
  4. Connect ground cable to battery terminal and fit battery cover. Refer to BATTERY CONNECT .
  5. Release veneer panel from retaining clips.

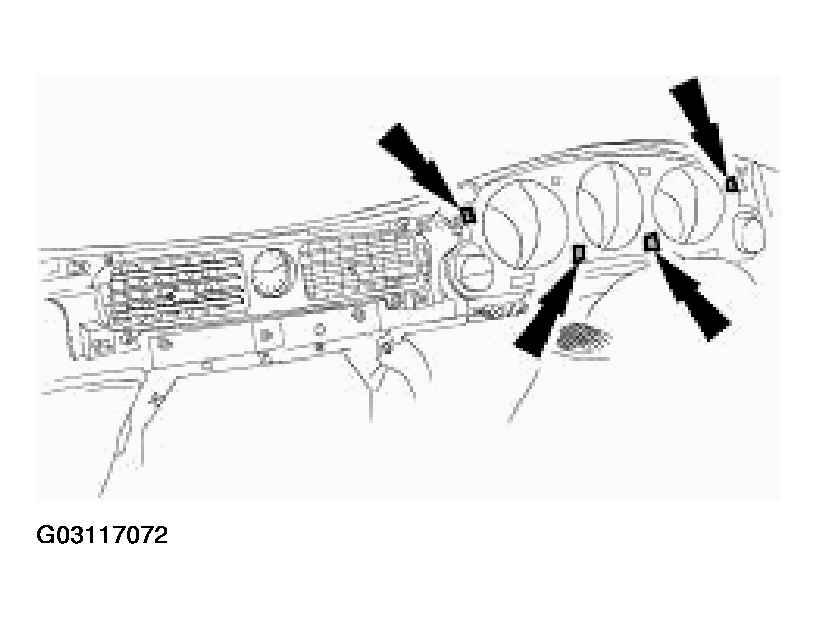

    Fig 1: Releasing Veneer Panel From Retaining Clips
    G03117072
  6. Remove veneer panel from vehicle.
  7. Remove and discard all retaining clips.
